PISTON KIT B 96MM SUZUKI RM-Z 450 05-07, ATHENA S5F09550001B
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

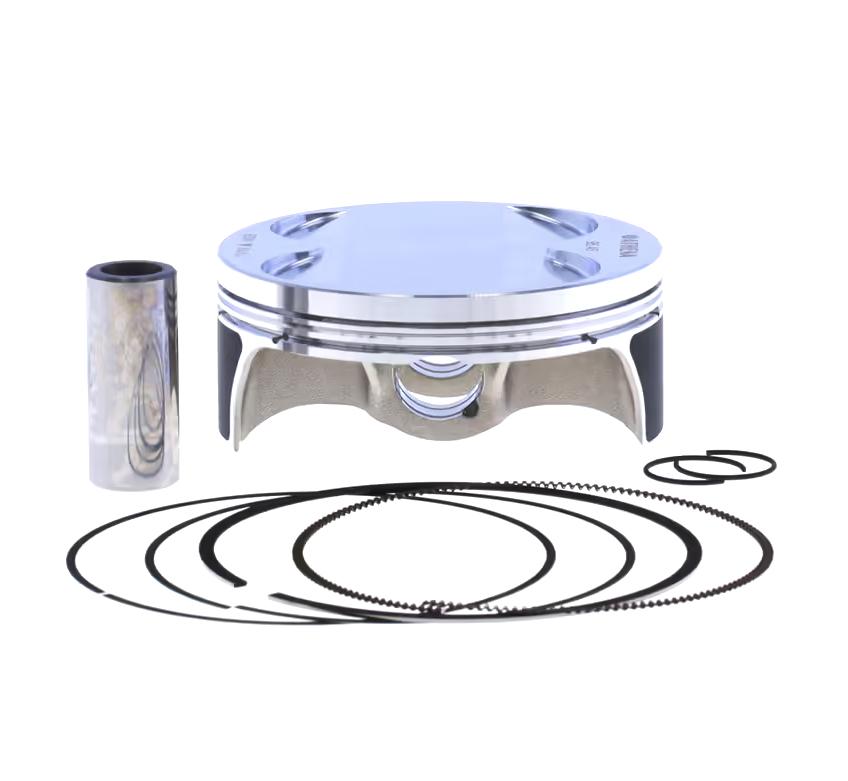

ATHENA Forged Piston Kit B 96MM SUZUKI RM-Z 450 05-07, ATHENA S5F09550001B. Forged piston made with reverse extrusion and cutting-edge CNC machining tools. Made of a special high-performance aluminum alloy with high silicon content for reliability, resistance, and excellent performance. Some pistons feature a molybdenum disulfide coating on the skirt to reduce friction, enhancing performance and durability. Piston rings are produced in Japan with wear-resistant coatings (PVD or chromium nitride) to increase retention and durability. This kit includes the piston, pin, circlips, and piston rings. Technical features: Big End Pin Diameter (mm) 19x10x45, Bore Diameter (mm) 95.46, Compression Height (mm) 22.20, Compression Ratio 12.0:1, Displacement (cc) 450, Net Weight (Kg) 0.33, Number Of Segments 2, Piston Pin Type Biconical, Piston Type Forged.
- SKU
- 56-W185.B.ATH
- Brand
- Athena
- Availability
- In Stock (2)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95.50mm
- Variant Id
- 289775
FULL DESCRIPTION
Athena Forged Piston Kit B - 96mm Bore
Experience enhanced performance and durability with the Athena Forged Piston Kit. Crafted from a specialized high-performance aluminum alloy with a high silicon content, this piston offers exceptional resistance and reliability. Engineered with advanced CNC machining, it ensures dimensional tolerances of less than 0.01 mm for precise fitment. The piston's smooth profile promotes regular flow and optimal flame propagation, while some skirt designs feature a molybdenum disulfide coating to further reduce friction and increase longevity. Each piston is rigorously tested on dynamometer benches and on the track to validate performance in extreme conditions.
This kit includes the piston, pin, circlips, and piston rings. The piston rings, produced in Japan with wear-resistant coatings (PVD or chromium nitride), minimize friction with the cylinder for improved performance and durability. They are designed to adapt perfectly to the cylinder liner even under low tangential load. All components in the kit are replaceable and interchangeable.
Key Features:
- Piston Type: Forged
- Bore Diameter: 95.46 mm
- Piston Pin Type: Biconical
- Number Of Segments: 2
- Compression Height: 22.20 mm
- Compression Ratio: 12.0:1
- Displacement: 450 cc
- Big End Pin Diameter: 19x10x45 mm
- Net Weight: 0.33 Kg
