CRANKSHAFT ASSY 11-12 SX-F 250, PSYCHIC MX-09136 77030018000
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
CRANKSHAFT COMPLETE ASSEMBLY PSYCHIC MX-09136. Dirt bike assembly includes connecting rod. No main bearings. Factory-assembled and trued to within 0.001. Ready for installation to provide hours of reliable service. Completely rebuildable. Crankshaft and rod set, extension 98mm, big end small end 38x18mm/16x18mm, pin 30x53.7mm, top brass bushing 16x18x18mm, bottom bearing KU silver 30x38x17.8mm. Part No. 56-2970.DR. Cross reference numbers: 77030018000, HOTROD 4039.
- SKU
- 56-2970.DR
- Brand
- Psychic
- Availability
- In Stock (23)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| KTM | 250 SX-F | 2011 |
| KTM | 250 SX-F | 2012 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Crankshaft Assembly
- Variant Id
- 250614
FULL DESCRIPTION

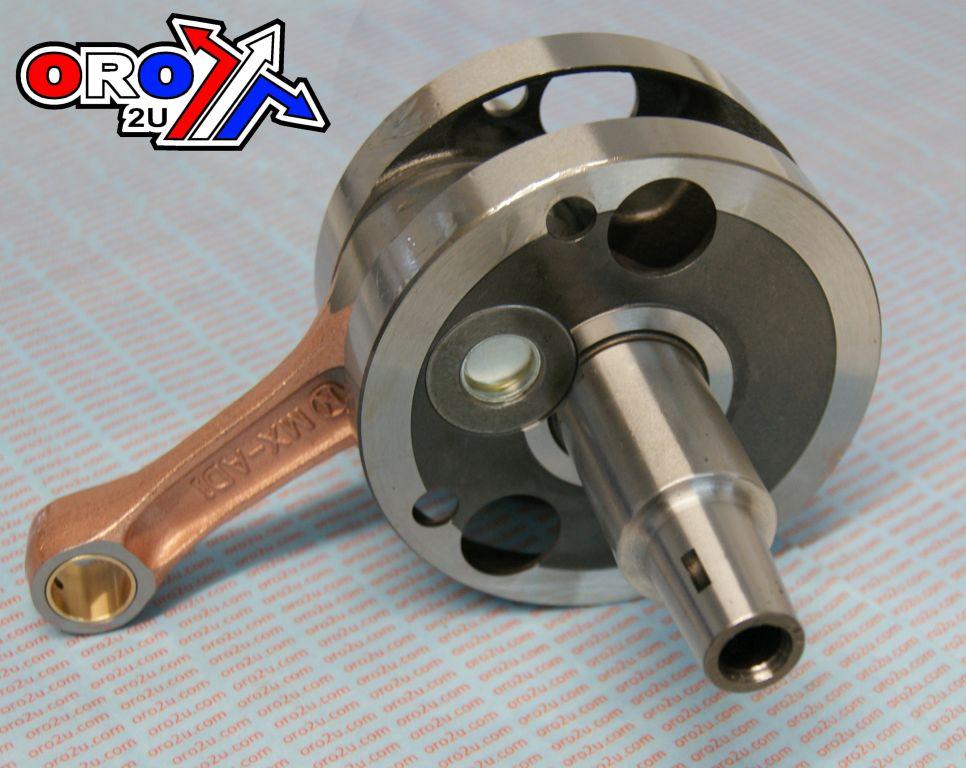

Psychic Crankshaft Assembly
This complete crankshaft assembly from Psychic is designed for high-performance dirt bike applications. Engineered for reliability and durability, this assembly is factory-tested and trued to within.001 for optimal performance. It is ready for installation and offers the advantage of being completely rebuildable.
Key Features:
- Complete crankshaft assembly including connecting rod.
- Factory assembled and trued to within.001.
- Ready for installation.
- Completely rebuildable for extended service life.
- Includes brass bushing for the top end and a silver bearing for the bottom end.
Specifications:
- Crankshaft + Rod Set
- Extension: 98MM
- Big End Bearing: 38X18MM
- Small End Bearing: 16X18MM
- Pin Dimensions: 30X53.7MM
- Top End Bushing: 16X18X18MM (Brass)
- Bottom End Bearing: 30X38X17.8MM (Silver)
Note: Main bearings are not included with this assembly.
Cross Reference Numbers: 77030018000, HOTROD 4039
