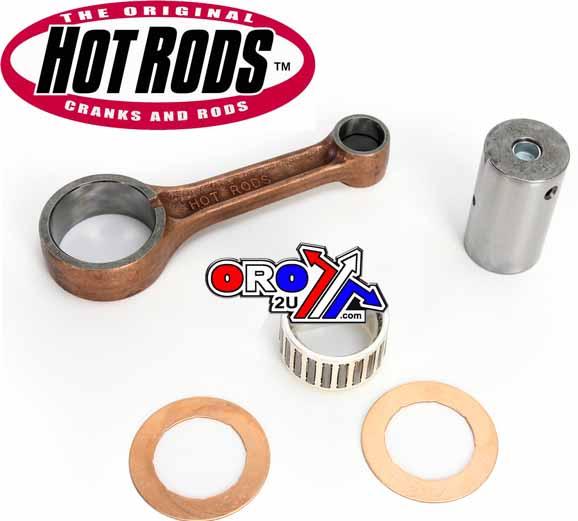

CONNECTING ROD YFM450 GRIZZLY, HOTRODS 8703 KODIAK RHINO

Hot Rods Connecting Rod Kit - 8703. This heavy-duty connecting rod kit is an OE replacement designed for strength, durability, and reliability in high-performance applications. Manufactured from certified 8620 AISI steel and case-hardened to 58-62 RC, it ensures superior performance under demanding conditions. The kit includes all necessary components for a complete rebuild and is compatible with both Hot Rods and OE crankshafts. Features include: Made from certified 8620 AISI steel for superior strength. Case-hardened to 58-62 RC for durability. Big-end design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion. Crankpins are made from hot-rolled ASTM 4115 and case-hardened. Caged needle roller bearing design ensures longevity at high RPMs. Silver-coated bronze phosphor thrust washers provide additional durability. Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Compatible with both Hot Rods and OE crankshafts. Made in the USA. Specifications: Big End Bore Ø: 43.00 mm. Pin Diameter: 35.00 mm. Pin Length: 61.80 mm. Center to Center: 121.50 mm. Small End Bore Ø: 20.00 mm. Washer Thickness: 1.00 mm. Included Items: (1) Connecting rod, (1) Crankpin, (1) Roller bearing, (2) Thrust washers. Manufacturer: Hot Rods. Part Number: 56-9014.HR. Weight: 840 grams.
