CONNECTING ROD VILLERS 192, CONROD VILLERS 200 250cc BCO0504
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
Heavy-duty OE replacement connecting rod for VILLIERS 192cc, 200cc, and 250cc engines. Made from certified Chrome alloy steel (SNCM220) for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Features caged needle roller bearing designs for high RPM longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Dimensions: Centre to Centre A = 133mm, Small End Bearing B = 15mm, Small End Bore Ø = 15mm, Small End Width = 15mm, Big End Bearing 24x32x13, Big End Bore Ø = 32mm, Big End Width = 15mm, Big End Pin Ø = 20.3 / 24mm, Big End Pin Length F = 41.30mm. Note: some 192/200 models use big end pin 41.30mm. Part Number: BCO0504.
- SKU
- 56-967
- Brand
- Mazzucchelli
- Availability
- In Stock (3)
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252365
FULL DESCRIPTION
VILLIERS Connecting Rod for 192cc, 200cc, and 250cc Engines
This heavy-duty OE replacement connecting rod is designed for VILLIERS engines with displacements of 192cc, 200cc, and 250cc.
Key Features:
- Superior Strength: Constructed from certified Chrome alloy steel for exceptional durability.
- Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for increased wear resistance.
- High RPM Longevity: Utilizes the latest caged needle roller bearing designs, ideal for high RPM applications.
- Premium Thrust Washers: Thrust washers are made from bronze phosphor and feature a silver coating for enhanced performance.
- Complete Assembly: Sold as a complete unit, including the rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if applicable).
- OE and Aftermarket Compatibility: Fully compatible with both original equipment (OE) and aftermarket crankshafts.
- Material: Made from SNCM220 material for robust construction.
- Note on Big End Pin Size: Some 192cc / 200cc models utilize a big end pin size of 41.30mm.

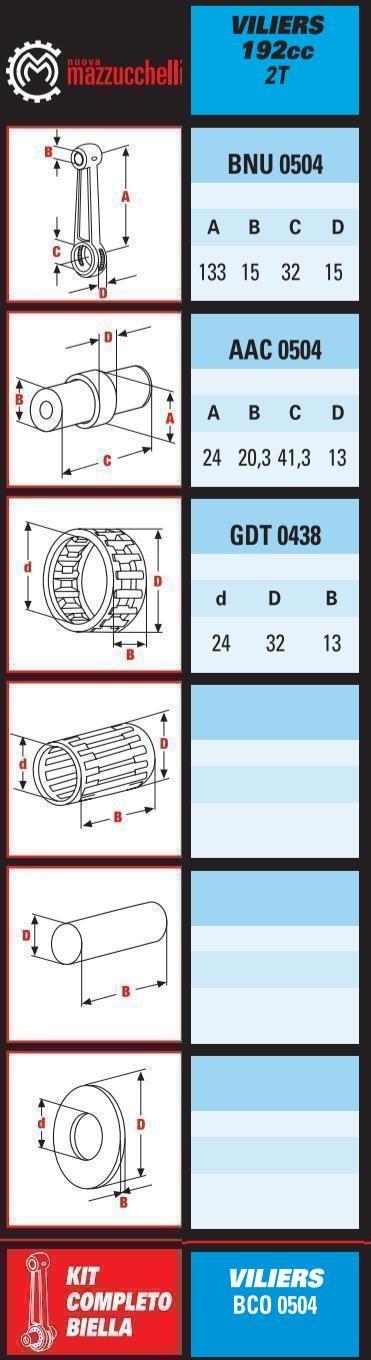

Specifications:
- Centre to Centre Length: 133mm
- Small End Bore Diameter: 15mm
- Small End Width: 15mm
- Big End Bearing Size: 24x32x13
- Big End Bore Diameter: 32mm
- Big End Width: 15mm
- Big End Pin Diameter: 20.3mm / 24mm
- Big End Pin Length: 41.3mm
