CONNECTING ROD TRX500FE, NAMURA RA-10009 Honda ATV, BIG END PIN 34 x 63.5mm

Namura Replacement Connecting Rod Kit for Honda TRX500 Series

Upgrade your Honda TRX500 Foreman with this heavy-duty replacement connecting rod kit from Namura. Engineered for superior strength and durability, this kit is designed to withstand demanding conditions. The connecting rod is crafted from certified chrome alloy steel (SNCM220), ensuring exceptional resilience. Crankpins are constructed from hot-rolled ASTM steel and are case-hardened for enhanced reliability. Advanced caged needle roller bearing designs are incorporated for improved longevity, especially at high RPMs. Thrust washers are silver-coated and made from bronze phosphor, providing enhanced lubrication and extended wear life.

This comprehensive assembly is fully compatible with both Original Equipment (OE) and aftermarket crankshafts. The kit includes all necessary components for a complete installation, such as the connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Key Features:

• Certified Chrome Alloy Steel (SNCM220) Construction: Provides maximum strength and durability.
• Case-Hardened Crankpins: Made from hot-rolled ASTM steel for superior toughness and reliability.
• Advanced Caged Needle Roller Bearings: Designed for enhanced durability at high rotational speeds.
• Silver-Coated Bronze Phosphor Thrust Washers: Offer improved lubricity and wear resistance.
• OE and Aftermarket Crankshaft Compatibility: Seamless integration with existing or upgraded crankshafts.

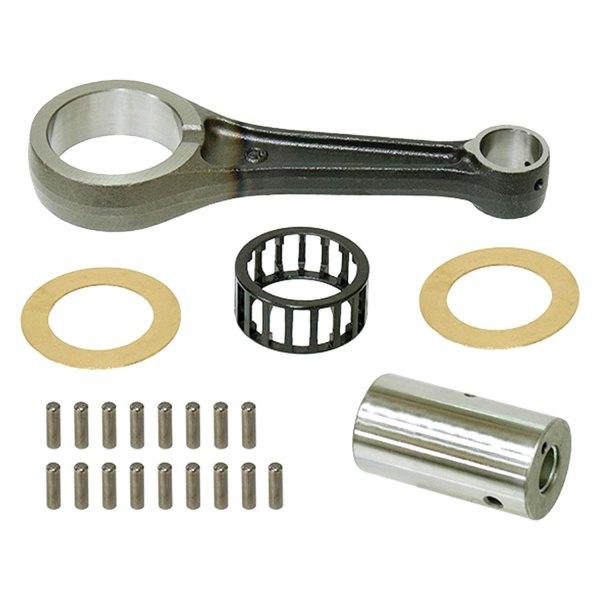

• Complete Kit: Includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Center-to-Center Length: 129.50 mm
• Small End Bore Diameter: 20 mm
• Small End Width: 20 mm
• Big End Bearing Dimensions: 34x44x19.80 mm
• Big End Bore Diameter: 44 mm
• Big End Width: 20 mm
• Big End Pin Diameter: 34 mm
• Big End Pin Length: 63.50 mm
• Washer Dimensions: 34x53x1.00 mm

Cross-Reference Information:

• VESRAH Part Number: VA-1021
• HOTRODS Part Number: 8699
• Crankshaft Compatibility: 13000-HP0-A00
• Other Part Number: AT-09410-1

Manufacturer: Namura Technologies
