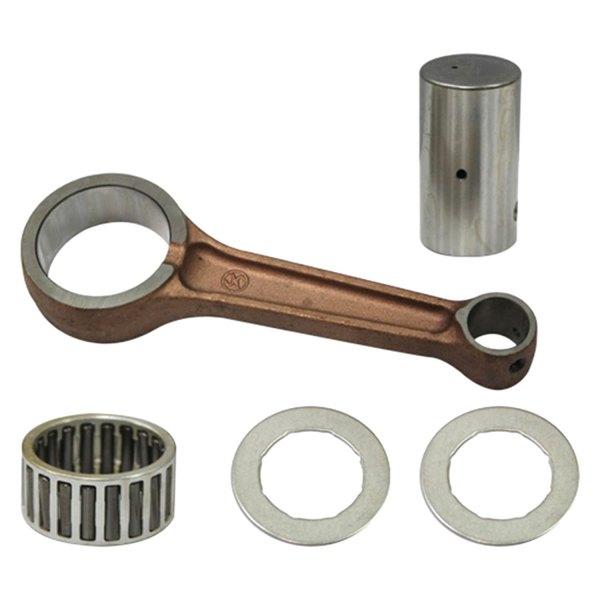

CONNECTING ROD TRX300 HONDA, BRONCO AT-09453
CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09453. Heavy-duty OE replacement connecting rods manufactured from certified Chorme alloy steel for superior strength. Crankpins are made from hot-rolled ASTM steel and case hardened. Features caged needle roller bearing designs for high rpm longevity. Thrust washers are made from bronze phosphor and are silver coated. Rod assembly is sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Big End Bearing (mm): 33x41x20, Big End Bore (mm): 41, Big End Width (mm): 20, Center To Center (mm): 123, Pin Diameter (mm): 33.00, Pin Length (mm): 60.00, Small End Bore (mm): 17.00, Small End Width (mm): 20.00. Part No. 56-145.DR. Cross reference: VESRAH VA-1010.
- SKU
- 56-145.DR
- Brand
- Namura Technologies
- Availability
- In Stock (2)
FULL DESCRIPTION
BRONCO Connecting Rod Rebuild Kit for Honda Motorcycles
Restore the power and performance of your Honda motorcycle with this heavy-duty OE replacement connecting rod rebuild kit from BRONCO. Designed for exceptional strength and longevity, this kit provides a reliable solution for rebuilding your engine's connecting rod assembly.
Key Features:
- Superior Strength: Constructed from certified Chrome alloy steel for unmatched durability and resistance to wear.
- High-Quality Crankpins: Crankpins are precision manufactured from hot-rolled ASTM steel and undergo case hardening for enhanced toughness.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing technology for optimal performance and extended lifespan at high RPMs.
- Durable Thrust Washers: Features silver-coated bronze phosphor thrust washers for reliable operation.
- Complete Kit: Includes the connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if applicable) for a comprehensive rebuild.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment (OE) and aftermarket crankshafts.
- Material: SNCM220
Specifications:
- Big End Bearing (mm): 33x41x20
- Big End Bore (mm): 41
- Big End Width (mm): 20
- Center To Center (mm): 123
- Pin Diameter (mm): 33.00
- Pin Length (mm): 60.00
- Small End Bearing (mm): NONE
- Small End Bore (mm): 17.00
- Small End Width (mm): 20.00
Cross Reference Numbers:
- VESRAH VA-1010
