CONNECTING ROD SX-F350 KTM, HOT RODS 8693

Hot Rods Connecting Rod for KTM and Husaberg

This high-quality connecting rod kit is expertly engineered for demanding performance on KTM and Husaberg motorcycles. Manufactured from robust ASTM 4115 material and meticulously case-hardened to 58-62 Rc, this rod is built to endure the rigors of high-RPM operation while significantly reducing bearing race distortion. Its advanced construction ensures superior strength and reliability for your performance engine.

Key Features:

• Premium Material: Constructed from hot-rolled ASTM 4115 and case-hardened for exceptional durability.
• Enhanced Strength: Double-forged rods promote optimal grain flow and consistent dimensions, while shot-peening and double-honing further boost strength for heavy load conditions.
• High-RPM Optimization: Features strategic side scalloping and vent slots designed to minimize distortion at high rotational speeds.
• Improved Lubrication: Double-drilled small ends enhance lubrication and cooling efficiency.
• Reduced Friction: Includes silver-coated thrust washers and crank pin bearings for superior lubricity.
• Complete Kit: Comes with all necessary components for installation, including the connecting rod, crank pin, crank pin bearing, and top end bearing.

Technical Specifications:

• Big End Bore: 41.00 mm
• Center to Center Length: 102.00 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm

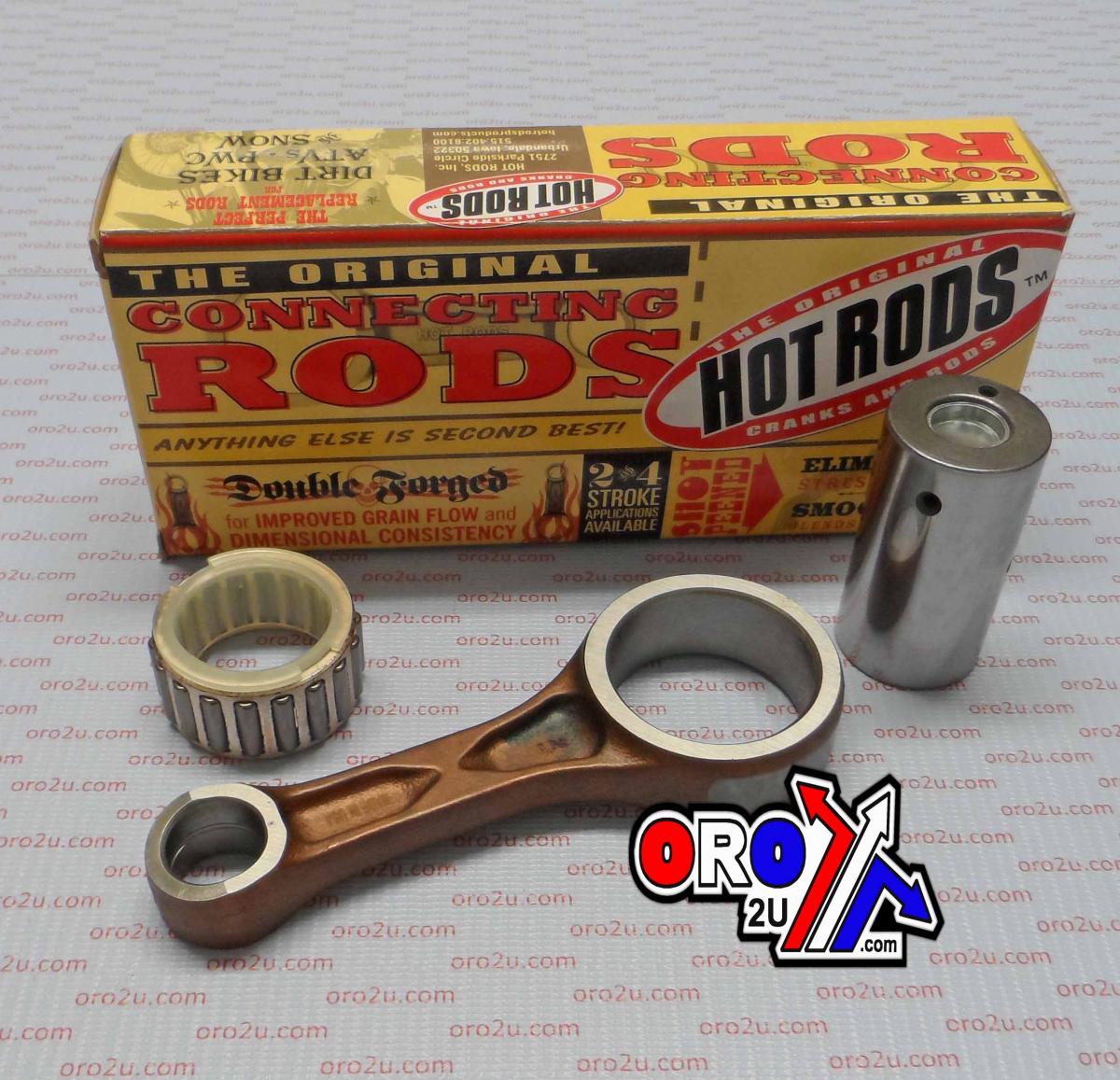

Included Components:

• (1) Connecting rod
• (1) Crankshaft pin
• (1) Connecting rod bearing
• (1) Top end bearing
• (2) Thrust washers
