CONNECTING ROD RMZ450, PSYCHIC MX-09016 SUZUKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

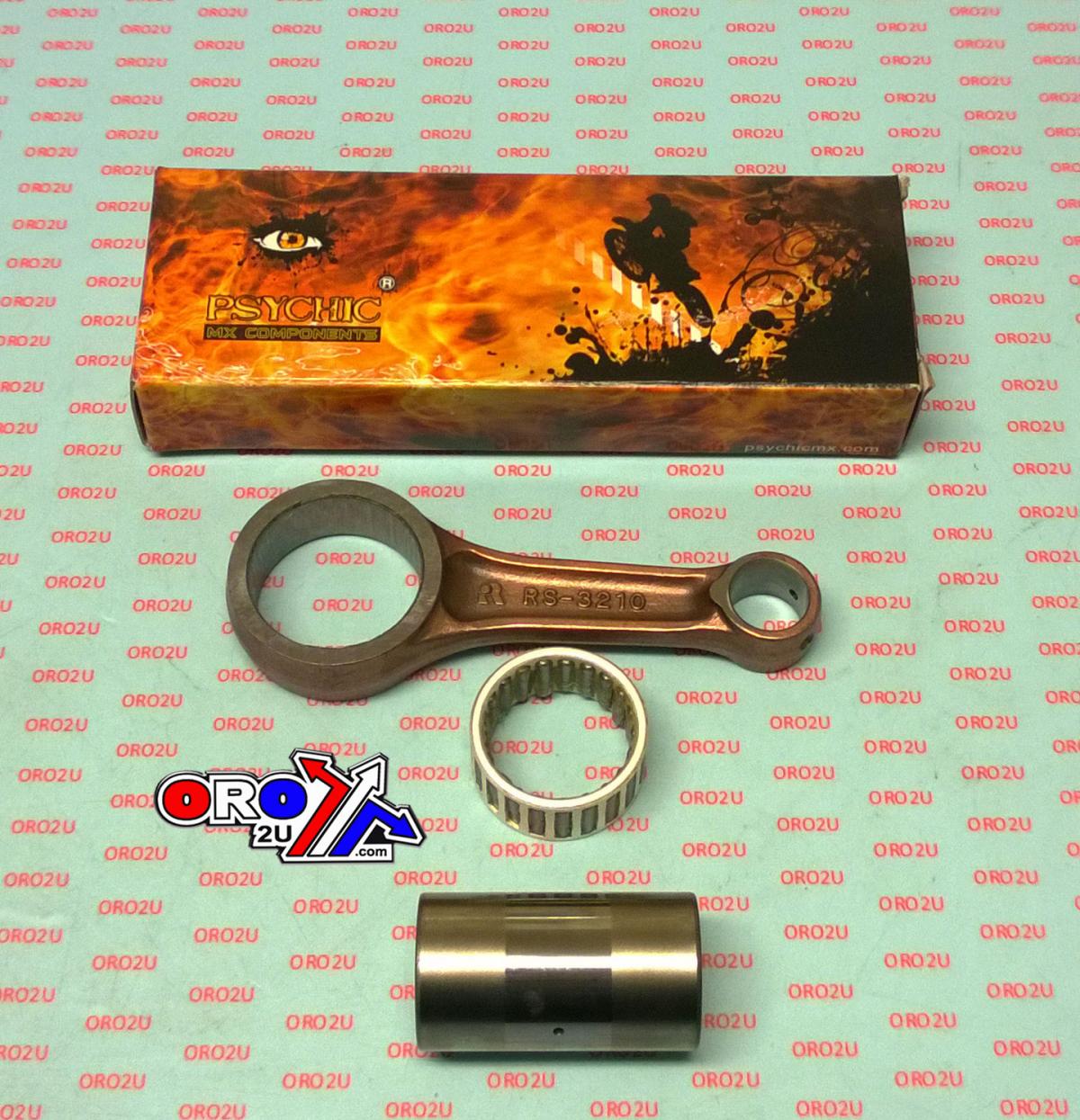

CONNECTING ROD REBUILD CONROD KIT PSYCHIC MX-09016 SUZUKI RM-Z450 RMZ450 2005-2007, RM-Z450 RMZ450 2013-2020. Heavy-duty OE replacement connecting rods. Certified Chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Technical Specifications: Big End Bearing (mm): 34x42x19.7, Big End Bore (mm): 42.00, Big End Width (mm): 19.75, Center To Center (mm): 106.10mm, Pin Diameter (mm): 34.00, Pin Length (mm): 60.80, Small End Bearing (mm): No Bushing, Small End Bore (mm): 19.00, Small End Width (mm): 16.50. Part No. 56-136.PS. Cross reference numbers: ATHENA P40321030, 12210-10H10 / 12210-10H11, 09263-30060-0B0, 12161-49H00-0B0, HR008661, HOTRODS 8661, PROX 03.3405, PSYCHIC MX-09016, ATHENA P40321030, 12161-35G00-0B0, 12161-35G01-0B0, WOSSNER P4012, WISECO, HOTRODS 8647.
- SKU
- 56-136.PS
- Brand
- Psychic
- Availability
- In Stock (3)
Fitments (16)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
| SUZUKI | RM-Z 450 | 2013 |
| SUZUKI | RM-Z 450 | 2014 |
| SUZUKI | RM-Z 450 | 2015 |
| SUZUKI | RM-Z 450 | 2016 |
| SUZUKI | RM-Z 450 | 2017 |
| SUZUKI | RM-Z 450 | 2018 |
| SUZUKI | RM-Z 450 | 2019 |
| SUZUKI | RM-Z 450 | 2020 |
| SUZUKI | RM-Z 450 | 2021 |
| SUZUKI | RM-Z 450 | 2022 |
| SUZUKI | RM-Z 450 | 2023 |
| SUZUKI | RM-Z 450 | 2024 |
| SUZUKI | RM-Z 450 | 2025 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250038
FULL DESCRIPTION
Psychic MX-09016 Connecting Rod Kit for Suzuki RM-Z450
Upgrade your Suzuki RM-Z450's engine performance with this heavy-duty connecting rod rebuild kit from Psychic. Engineered as a superior OE replacement, this kit provides the strength and reliability needed for demanding off-road conditions.
Key Features:
- Premium Materials: Constructed from certified Chrome alloy steel for exceptional strength and durability.
- Robust Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and are case hardened for enhanced wear resistance.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing technology for longevity even at high RPMs.
- High-Performance Thrust Washers: Silver-coated phosphor bronze thrust washers ensure smooth operation and extended life.
- Complete Assembly: The rod assembly includes the rod, crankpin, crankpin bearing, top-end bearing, and necessary thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
- Material Specification: Made from SNCM220 material for optimal performance.
Technical Specifications:
- Big End Bearing: 34x42x19.7 mm
- Big End Bore: 42.00 mm
- Big End Width: 19.75 mm
- Center To Center Distance: 106.10 mm
- Pin Diameter: 34.00 mm
- Pin Length: 60.80 mm
- Small End Bore: 19.00 mm
- Small End Width: 16.50 mm
- Small End Bearing: No Bushing
