CONNECTING ROD OSSA 24mm PIN CONROD BCO0438
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
OSSA Connecting Rod Rebuild Kit BCO0438 is a heavy-duty OE replacement connecting rod constructed from SNCM220 material. Certified Chrome alloy steel provides superior strength, while crankpins are manufactured from hot-rolled ASTM steel and case hardened. Dirt Racing Rods utilize the latest caged needle roller bearing designs for high RPM longevity. Thrust washers are made from bronze phosphor, silver-coated. The rod assembly is sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers. Fully compatible with aftermarket and OE crankshafts. This kit features a 24mm pin and is 59mm in length. Specifications include: Centre to Centre 120mm, Small End Bearing 16x20x18, Small End Bore Ø 20mm, Small End Width 11.50mm, Big End Bearing 24x32x13, Big End Bore Ø 32mm, Big End Width 11.50mm, Big End Pin Ø 24mm, Big End Pin Length 59mm, Washer Thickness None. Part No. 56-968.MK2. Cross-reference Mazzucchelli BCO0438.
- SKU
- 56-968.MK2
- Brand
- Mazzucchelli
- Availability
- In Stock (17)
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252367
FULL DESCRIPTION
Ossa Connecting Rod Assembly BCO0438
This Ossa connecting rod assembly is designed as a heavy-duty OE replacement part for Ossa 200cc and 250cc MK1 models. It provides superior strength and longevity for high RPM performance.
Key Features:
- Material Strength: Certified Chrome alloy steel construction for exceptional durability.
- Crankpin Quality: Crankpins are manufactured from hot-rolled ASTM steel and are case hardened for enhanced wear resistance.
- Bearing Technology: Dirt Racing Rods feature the latest caged needle roller bearing designs, ensuring longevity at high RPMs.
- Washer Specifications: Thrust washers are made from silver-coated phosphor bronze.

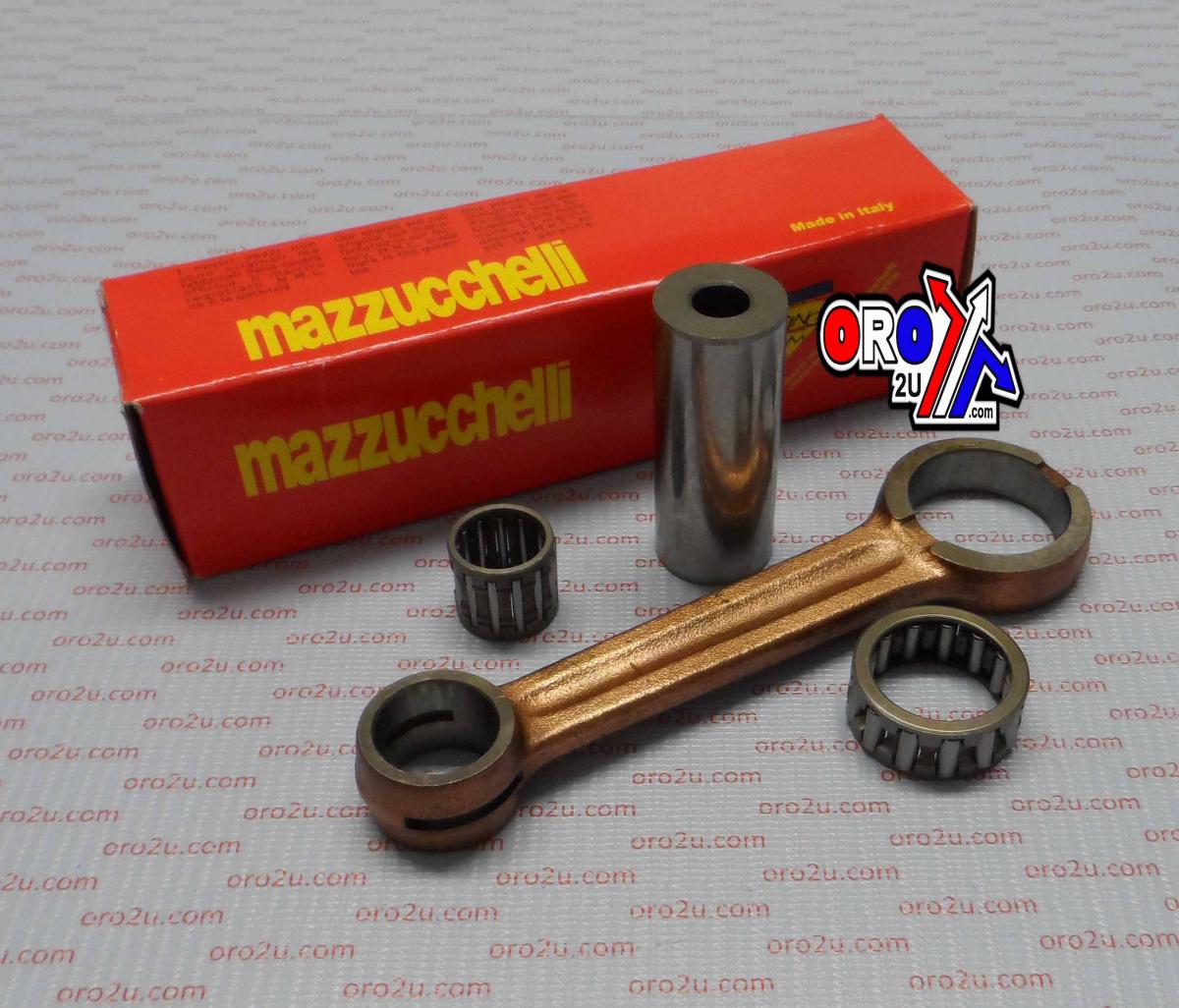

- Complete Assembly: This rod assembly includes the rod, crankpin, crankpin bearing, top end bearing, and necessary thrust washers.
- Crankshaft Compatibility: Fully compatible with both aftermarket and original equipment (OE) crankshafts.
- Material Code: SNCM220

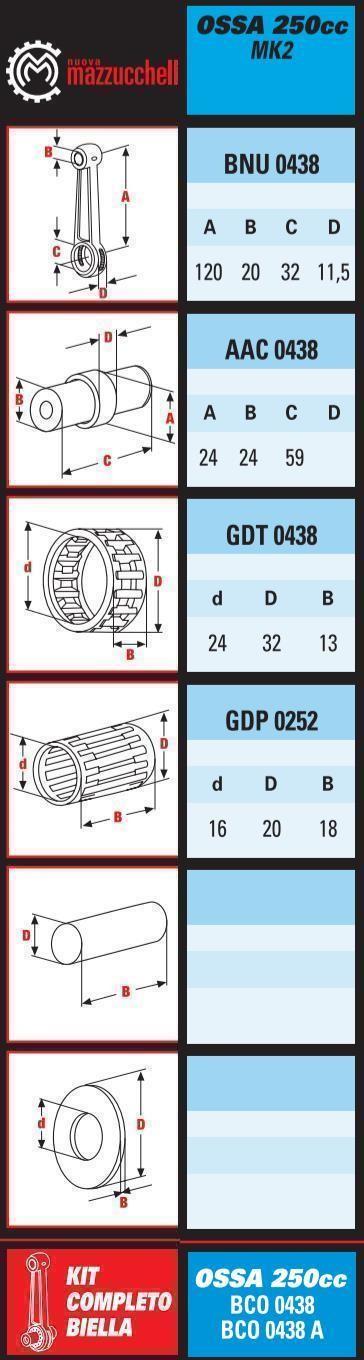

Specifications:
- Model Number: BCO0438
- Pin Size: 24mm x 59mm
- Centre to Centre Distance: 120mm
- Small End Bearing Dimensions: 16x20x18
- Small End Bore Diameter: 20mm
- Small End Width: 11.50mm
- Big End Bearing Dimensions: 24x32x13
- Big End Bore Diameter: 32mm
- Big End Width: 11.50mm
- Big End Pin Diameter: 24mm
- Big End Pin Length: 59mm
- Washer Thickness: None
Part Number: 56-968.MK2
Cross-Reference: Mazzucchelli BCO0438
