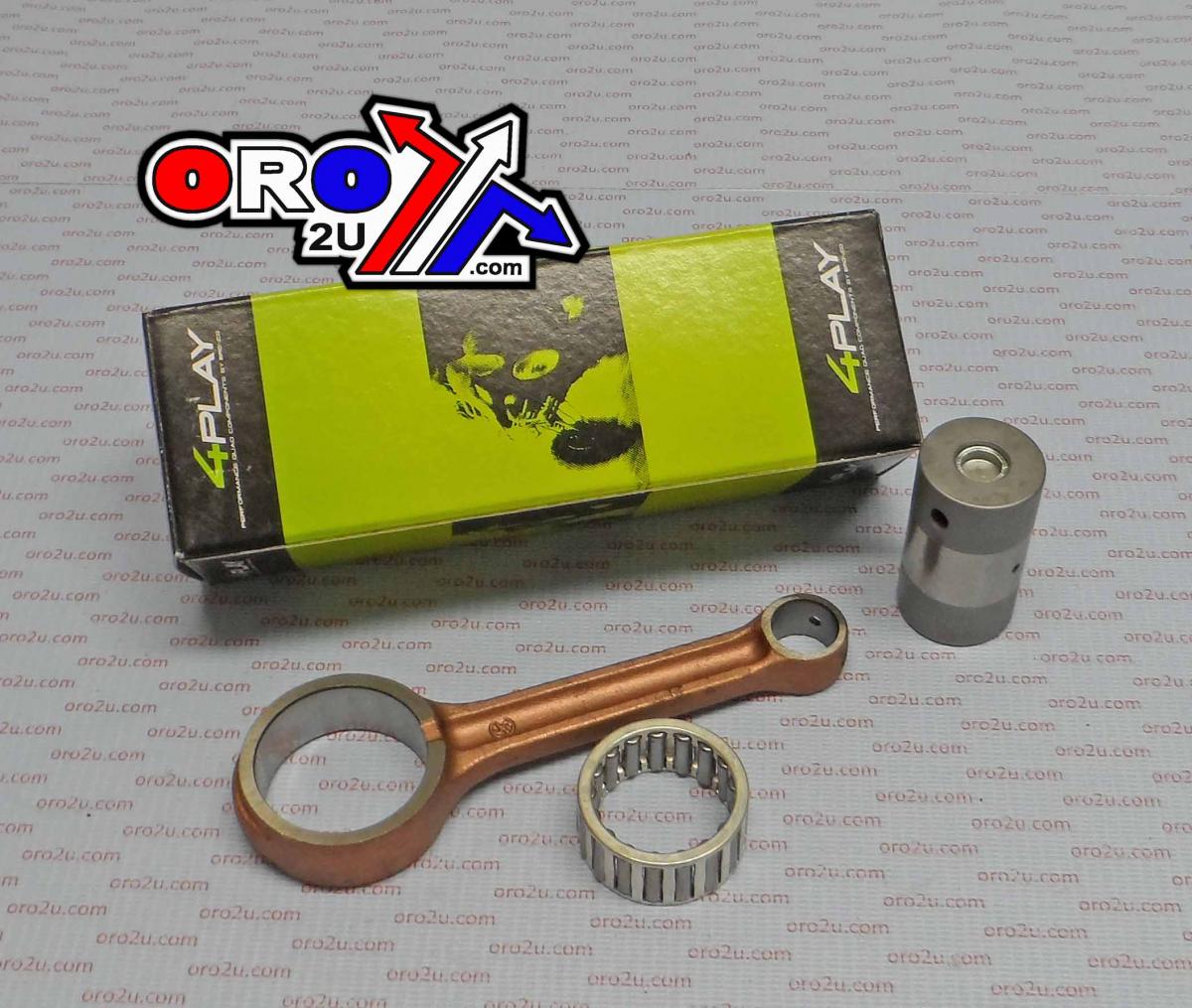

CONNECTING ROD LTF250 LT4WD, BRONCO AT-09171 CONROD KIT
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
BRONCO AT-09171 Connecting Rod Rebuild Kit for Suzuki. This heavy-duty OE replacement connecting rod is made from certified chrome alloy steel for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. BRONCO Rods utilize the latest caged needle roller bearing designs for high RPM longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. The rod assembly is sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material: SNCM220. Center to Center: 115.50mm. Small End Bearing: None. Small End Bore: 16mm. Small End Width: 14mm. Big End Bearing: 30x39x18mm. Big End Bore: 39mm. Big End Width: 18mm. Big End Pin Bore: 30mm. Big End Pin Length: 53.00mm. Washer Thickness: None. Part Number: 56-251.DR.
- SKU
- 56-251.DR
- Brand
- Bronco
- Availability
- In Stock (2)
Fitments (106)
| Make | Model | Year |
|---|---|---|
| SUZUKI | LT 250 | 1987 |
| SUZUKI | LT 250 | 1988 |
| SUZUKI | LT 250 | 1989 |
| SUZUKI | LT 250 | 1990 |
| SUZUKI | LT 250 | 1991 |
| SUZUKI | LT 250 | 1992 |
| SUZUKI | LT 250 | 1993 |
| SUZUKI | LT 250 | 1994 |
| SUZUKI | LT 250 | 1995 |
| SUZUKI | LT 250 | 1996 |
| SUZUKI | LT 250 | 1997 |
| SUZUKI | LT 250 | 1998 |
| SUZUKI | LT 250EF Quadrunner | 1985 |
| SUZUKI | LT 250EF Quadrunner | 1986 |
| SUZUKI | LT EF 250 | 1985 |
| SUZUKI | LT EF 250 | 1986 |
| SUZUKI | LT F 250 | 2013 |
| SUZUKI | LT F OZARK 250 | 2002 |
| SUZUKI | LT F OZARK 250 | 2003 |
| SUZUKI | LT F OZARK 250 | 2004 |
| SUZUKI | LT F OZARK 250 | 2005 |
| SUZUKI | LT F OZARK 250 | 2006 |
| SUZUKI | LT F OZARK 250 | 2007 |
| SUZUKI | LT F OZARK 250 | 2008 |
| SUZUKI | LT F OZARK 250 | 2009 |
| SUZUKI | LT F OZARK 250 | 2010 |
| SUZUKI | LT F OZARK 250 | 2011 |
| SUZUKI | LT F OZARK 250 | 2012 |
| SUZUKI | LT F OZARK 250 | 2013 |
| SUZUKI | LT F OZARK 250 | 2014 |
| SUZUKI | LT F QUADRUNNER 250 | 1988 |
| SUZUKI | LT F QUADRUNNER 250 | 1989 |
| SUZUKI | LT F QUADRUNNER 250 | 1990 |
| SUZUKI | LT F QUADRUNNER 250 | 1991 |
| SUZUKI | LT F QUADRUNNER 250 | 1992 |
| SUZUKI | LT F QUADRUNNER 250 | 1993 |
| SUZUKI | LT F QUADRUNNER 250 | 1994 |
| SUZUKI | LT F QUADRUNNER 250 | 1995 |
| SUZUKI | LT F QUADRUNNER 250 | 1996 |
| SUZUKI | LT F QUADRUNNER 250 | 1997 |
| SUZUKI | LT F QUADRUNNER 250 | 1998 |
| SUZUKI | LT F QUADRUNNER 250 | 1999 |
| SUZUKI | LT F QUADRUNNER 250 | 2000 |
| SUZUKI | LT F QUADRUNNER 250 | 2001 |
| SUZUKI | LT F QUADRUNNER 250 | 2002 |
| SUZUKI | LT-4WD 250 Quadrunner | 1987 |
| SUZUKI | LT-4WD 250 Quadrunner | 1988 |
| SUZUKI | LT-4WD 250 Quadrunner | 1989 |
| SUZUKI | LT-4WD 250 Quadrunner | 1990 |
| SUZUKI | LT-4WD 250 Quadrunner | 1991 |
| SUZUKI | LT-4WD 250 Quadrunner | 1992 |
| SUZUKI | LT-4WD 250 Quadrunner | 1993 |
| SUZUKI | LT-4WD 250 Quadrunner | 1994 |
| SUZUKI | LT-4WD 250 Quadrunner | 1995 |
| SUZUKI | LT-4WD 250 Quadrunner | 1996 |
| SUZUKI | LT-4WD 250 Quadrunner | 1997 |
| SUZUKI | LT-4WD 250 Quadrunner | 1998 |
| SUZUKI | LT-F 250 King Quad | 2013 |
| SUZUKI | LT-F 250 Ozark | 2002 |
| SUZUKI | LT-F 250 Ozark | 2003 |
| SUZUKI | LT-F 250 Ozark | 2004 |
| SUZUKI | LT-F 250 Ozark | 2005 |
| SUZUKI | LT-F 250 Ozark | 2006 |
| SUZUKI | LT-F 250 Ozark | 2007 |
| SUZUKI | LT-F 250 Ozark | 2008 |
| SUZUKI | LT-F 250 Ozark | 2009 |
| SUZUKI | LT-F 250 Ozark | 2010 |
| SUZUKI | LT-F 250 Ozark | 2011 |
| SUZUKI | LT-F 250 Ozark | 2012 |
| SUZUKI | LT-F 250 Ozark | 2013 |
| SUZUKI | LT-F 250 Ozark | 2014 |
| SUZUKI | LT-F 250 Quadrunner | 1988 |
| SUZUKI | LT-F 250 Quadrunner | 1989 |
| SUZUKI | LT-F 250 Quadrunner | 1990 |
| SUZUKI | LT-F 250 Quadrunner | 1991 |
| SUZUKI | LT-F 250 Quadrunner | 1992 |
| SUZUKI | LT-F 250 Quadrunner | 1993 |
| SUZUKI | LT-F 250 Quadrunner | 1994 |
| SUZUKI | LT-F 250 Quadrunner | 1995 |
| SUZUKI | LT-F 250 Quadrunner | 1996 |
| SUZUKI | LT-F 250 Quadrunner | 1997 |
| SUZUKI | LT-F 250 Quadrunner | 1998 |
| SUZUKI | LT-F 250 Quadrunner | 1999 |
| SUZUKI | LT-F 250 Quadrunner | 2000 |
| SUZUKI | LT-F 250 Quadrunner | 2001 |
| SUZUKI | LT-F 250 Quadrunner | 2002 |
| SUZUKI | LT-F 250F Quadrunner | 1999 |
| SUZUKI | LT-F 250F Quadrunner | 2000 |
| SUZUKI | LT-F 250F Quadrunner | 2001 |
| SUZUKI | LT-F 250F Quadrunner | 2002 |
| SUZUKI | LT-F 250F Quadrunner 4x4 | 1999 |
| SUZUKI | LT-F 250F Quadrunner 4x4 | 2000 |
| SUZUKI | LT-F 250F Quadrunner 4x4 | 2001 |
| SUZUKI | LT-F 250F Quadrunner 4x4 | 2002 |
| SUZUKI | LT-Z 250 QuadSport | 2004 |
| SUZUKI | LT-Z 250 QuadSport | 2005 |
| SUZUKI | LT-Z 250 QuadSport | 2006 |
| SUZUKI | LT-Z 250 QuadSport | 2007 |
| SUZUKI | LT-Z 250 QuadSport | 2008 |
| SUZUKI | LT-Z 250 QuadSport | 2009 |
| SUZUKI | LTZ 250 | 2004 |
| SUZUKI | LTZ 250 | 2005 |
| SUZUKI | LTZ 250 | 2006 |
| SUZUKI | LTZ 250 | 2007 |
| SUZUKI | LTZ 250 | 2008 |
| SUZUKI | LTZ 250 | 2009 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250383
FULL DESCRIPTION
BRONCO Connecting Rod Rebuild Kit
Restore your engine's performance with this high-quality BRONCO connecting rod rebuild kit. Engineered as a heavy-duty OE replacement, this kit provides the strength and reliability you need for demanding applications.
Key Features:
- Superior Strength: Crafted from certified Chrome alloy steel for exceptional durability.
- Precision Crankpins: Manufactured from hot-rolled ASTM steel and case hardened for longevity.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing technology for high RPM performance.
- High-Performance Thrust Washers: Made from bronze phosphor with a silver coating.
- Complete Assembly: Includes the connecting rod, crankpin, crankpin bearing, top end bearing, and necessary thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original and aftermarket crankshafts.
- Material: SNCM220
Specifications:
- Centre to Centre: 115.50 mm
- Small End Bore Diameter: 16 mm
- Small End Width: 14 mm
- Big End Bearing Size: 30x39x18 mm
- Big End Bore Diameter: 39 mm
- Big End Width: 18 mm
- Big End Pin Diameter: 30 mm
- Big End Pin Length: 53.00 mm
