CONNECTING ROD LC400 600 625, PSYCHIC MX-09015 LC640, 660SMC

Psychic MX-09015 Connecting Rod Rebuild Kit

This heavy-duty OE replacement connecting rod kit from Psychic is engineered for superior strength and longevity. Crafted from certified Chrome alloy steel (SNCM220), it ensures robust performance under demanding conditions. The kit includes a precision-manufactured crankpin made from hot-rolled ASTM steel, case hardened for enhanced durability. Psychic Rods utilizes advanced caged needle roller bearing designs to support high RPM operation. Thrust washers are constructed from bronze phosphor and feature a silver coating for optimal performance. This comprehensive rod assembly comes complete with the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where applicable. It is fully compatible with both aftermarket and original equipment crankshafts.

Key Features:

• Heavy-duty OE replacement connecting rod kit
• Constructed from certified Chrome alloy steel (SNCM220) for superior strength
• Crankpin manufactured from hot-rolled ASTM steel and case hardened
• Utilizes latest caged needle roller bearing designs for high RPM longevity
• Bronze phosphor thrust washers with silver coating
• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers
• Fully compatible with aftermarket and OE crankshafts

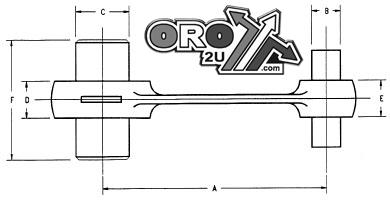

Specifications:

• Size: Centre to Centre - 141.50 MM
• Small End Bearing: None
• Small End Bore Diameter: 22 MM
• Small End Width: 22.9 MM
• Big End Bearing: 40x50x22.7 MM
• Big End Bore Diameter: 50 MM
• Big End Width: 22.9 MM
• Big End Pin Diameter: 40 MM
• Big End Pin Length: 65 MM
• Washer Thickness: 40x60x1 MM
