CONNECTING ROD KTM SX-F450, HOT RODS 8705 KTM 2013-2015
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Heavy-duty connecting rod kit designed for demanding applications. Manufactured from certified 8620 AISI steel for exceptional strength. Big end design includes side scalloping and vent slots to minimize high-RPM bearing race distortion. Crankpins are made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc. Utilizes caged needle roller bearing designs for enhanced high-RPM longevity. Thrust washers are silver-coated and made from bronze phosphor for added durability. Complete rod assembly includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Fully compatible with Hot Rods and OE crankshafts. Made in the USA. Technical specifications: Centre to Centre: 114.00 mm, Big End Bore: 38.99 mm, Pin Diameter: 35.00 mm, Pin Length: 62.80 mm, Small End Bore: 19.02 mm. Cross-Reference OEM Part Numbers: KTM: 78930015044. Part Number: 56-953.HR.
- SKU
- 56-953.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
Fitments (23)
| Make | Model | Year |
|---|---|---|
| HUSABERG | FE 450 | 2014 |
| HUSQVARNA | FC 450 | 2014 |
| HUSQVARNA | FC 450 | 2015 |
| HUSQVARNA | FE 450 | 2014 |
| HUSQVARNA | FE 450 | 2015 |
| HUSQVARNA | FE 450 | 2016 |
| HUSQVARNA | FS 450 | 2015 |
| KTM | 450 EXC | 2014 |
| KTM | 450 EXC | 2015 |
| KTM | 450 EXC | 2016 |
| KTM | 450 SM R | 2013 |
| KTM | 450 SM R | 2014 |
| KTM | 450 SMR | 2013 |
| KTM | 450 SMR | 2014 |
| KTM | 450 SX-F | 2013 |
| KTM | 450 SX-F | 2014 |
| KTM | 450 SX-F | 2015 |
| KTM | 450 XC-F | 2013 |
| KTM | 450 XC-F | 2014 |
| KTM | 450 XC-F | 2015 |
| KTM | 450 XC-W | 2014 |
| KTM | 450 XC-W | 2015 |
| KTM | 450 XC-W | 2016 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252326
FULL DESCRIPTION

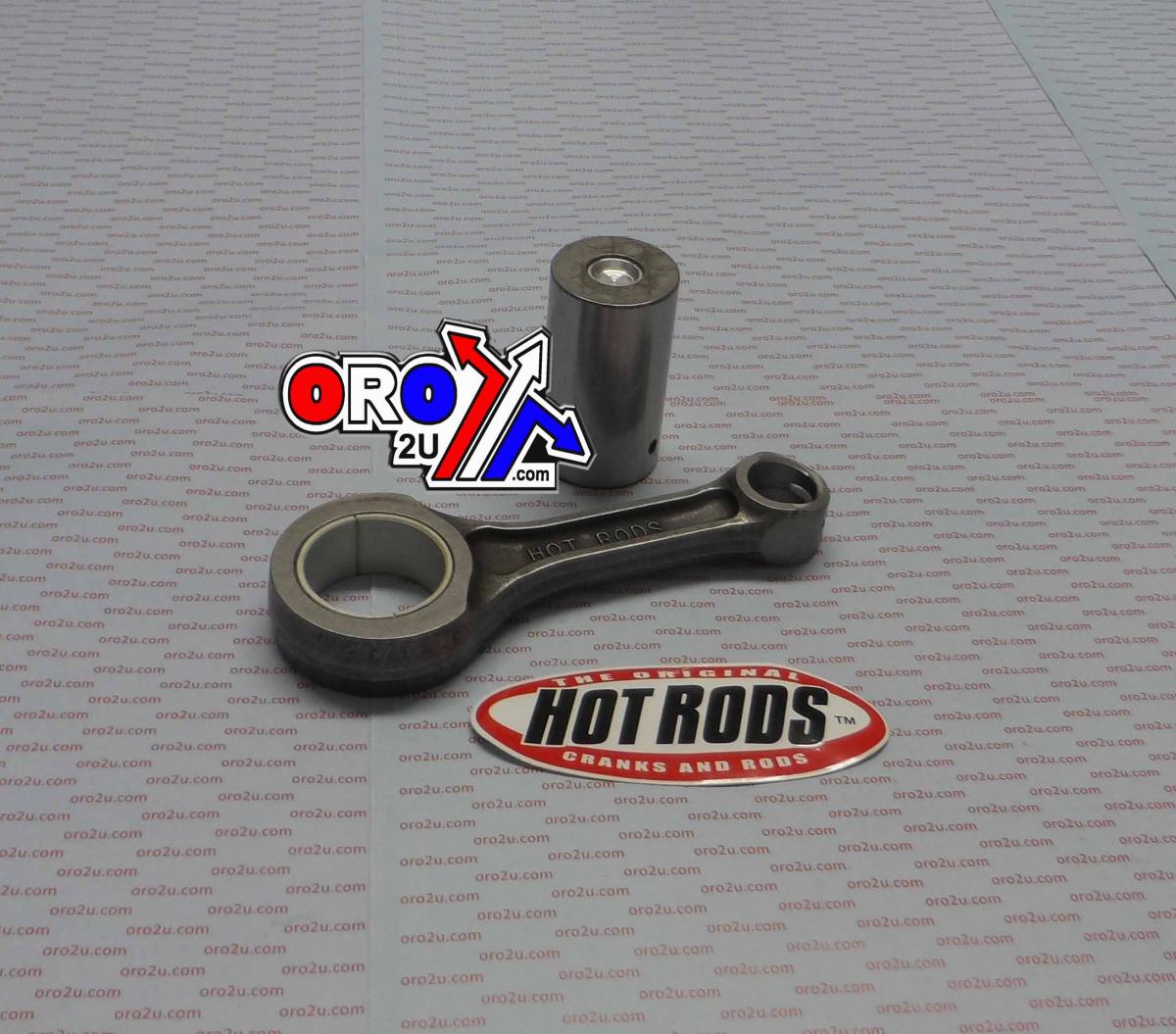

Hot Rods Connecting Rod Kit for KTM
Enhance the performance and reliability of your KTM motorcycle with this heavy-duty connecting rod kit from Hot Rods. Engineered as a high-performance OE replacement, this kit is built for demanding applications and ensures exceptional durability.
Key Features:
- Constructed from certified 8620 AISI steel for superior strength.
- Features a big end design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
- Crankpins are crafted from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for long-lasting performance.
- Incorporates caged needle roller bearing designs for improved longevity at high RPMs.
- Includes silver-coated thrust washers made from bronze phosphor for enhanced durability.
- This complete rod assembly contains all necessary components: connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
- Fully compatible with both Hot Rods and original equipment (OE) crankshafts.
- Proudly manufactured in the USA.
Technical Specifications:
- Center to Center Distance: 114.00 mm
- Big End Bore Diameter: 38.99 mm
- Crankpin Diameter: 35.00 mm
- Crankpin Length: 62.80 mm
- Small End Bore Diameter: 19.02 mm
OEM Cross-Reference: KTM: 78930015044
