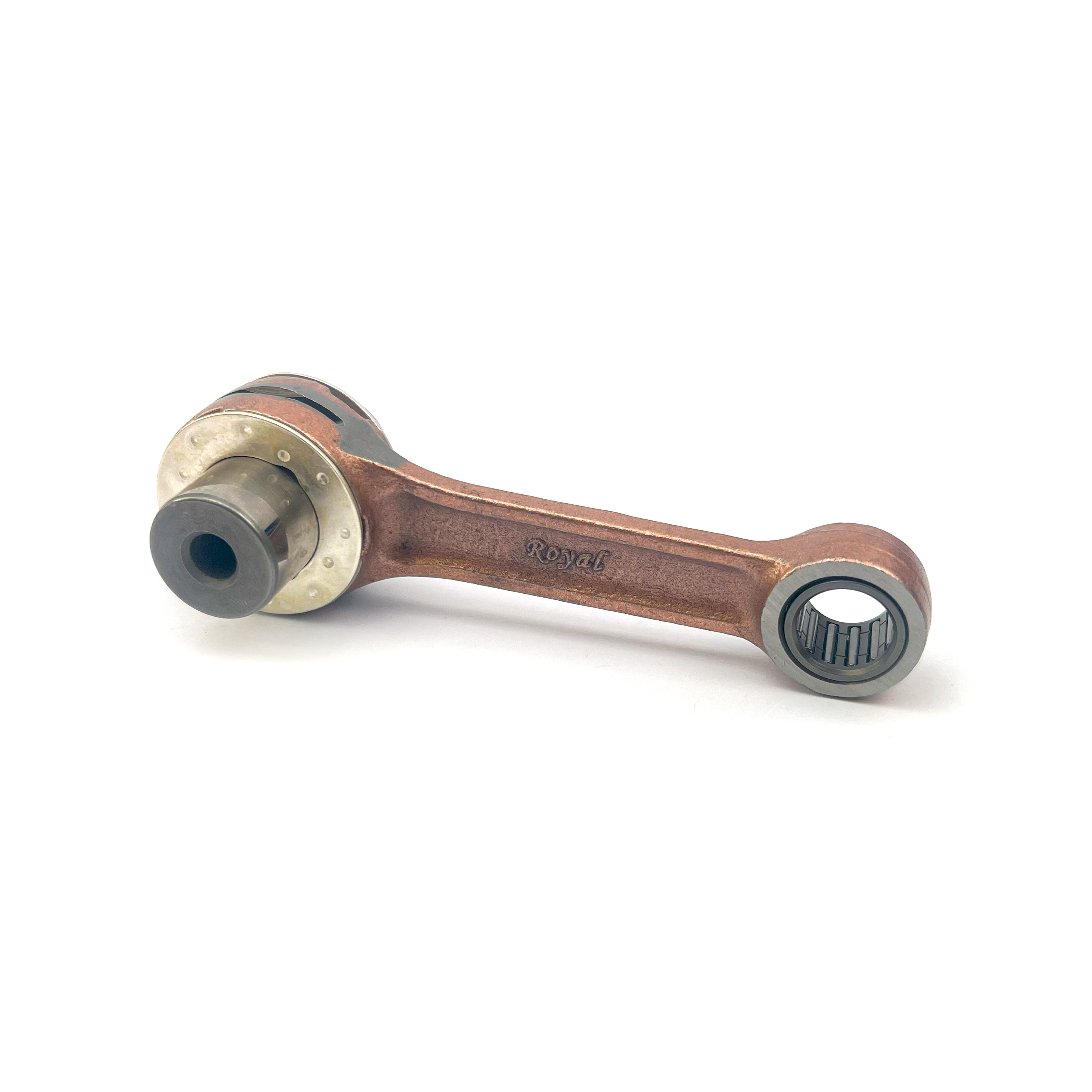

CONNECTING ROD KTM 85 03-12, PSYCHIC MX-09040 KTM SX105
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Connecting rod rebuild kit for KTM 85 SX (2003-2012) and KTM 105 SX (2004-2011). Heavy-duty OE replacement connecting rods made from certified chrome alloy steel. Crankpins constructed from hot-rolled ASTM steel and case-hardened, featuring advanced caged needle roller bearing designs for high RPM performance. Bronze phosphor thrust washers with silver coating for enhanced durability. Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required. Compatible with OE and aftermarket crankshafts. Manufactured using SNCM220 material. Centre to Centre: 96 mm. Small End Bearing: 14x18x16.8 mm. Small End Bore: 18 mm. Small End Width: 13 mm. Big End Bearing: 22x28x15.8 mm. Big End Bore: 28 mm. Big End Width: 16 mm. Big End Pin: 22 mm. Big End Pin Length: 46 mm. Washer Thickness: 1.00 mm. Cross-Reference OEM Part Numbers: 47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006. Part Number: 56-961.DR.
- SKU
- 56-961.DR
- Brand
- Psychic
- Availability
- In Stock (2)
Fitments (39)
| Make | Model | Year |
|---|---|---|
| KTM | 105 SX | 2003 |
| KTM | 105 SX | 2004 |
| KTM | 105 SX | 2005 |
| KTM | 105 SX | 2006 |
| KTM | 105 SX | 2007 |
| KTM | 105 SX | 2008 |
| KTM | 105 SX | 2009 |
| KTM | 105 SX | 2010 |
| KTM | 105 SX | 2011 |
| KTM | 85 SX | 2003 |
| KTM | 85 SX | 2004 |
| KTM | 85 SX | 2005 |
| KTM | 85 SX | 2006 |
| KTM | 85 SX | 2007 |
| KTM | 85 SX | 2008 |
| KTM | 85 SX | 2009 |
| KTM | 85 SX | 2010 |
| KTM | 85 SX | 2011 |
| KTM | 85 SX | 2012 |
| KTM | 85 SX 17/14 | 2003 |
| KTM | 85 SX 17/14 | 2004 |
| KTM | 85 SX 17/14 | 2005 |
| KTM | 85 SX 17/14 | 2006 |
| KTM | 85 SX 17/14 | 2007 |
| KTM | 85 SX 17/14 | 2008 |
| KTM | 85 SX 17/14 | 2009 |
| KTM | 85 SX 17/14 | 2010 |
| KTM | 85 SX 17/14 | 2011 |
| KTM | 85 SX 17/14 | 2012 |
| KTM | 85 SX 19/16 | 2003 |
| KTM | 85 SX 19/16 | 2004 |
| KTM | 85 SX 19/16 | 2005 |
| KTM | 85 SX 19/16 | 2006 |
| KTM | 85 SX 19/16 | 2007 |
| KTM | 85 SX 19/16 | 2008 |
| KTM | 85 SX 19/16 | 2009 |
| KTM | 85 SX 19/16 | 2010 |
| KTM | 85 SX 19/16 | 2011 |
| KTM | 85 SX 19/16 | 2012 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252347
FULL DESCRIPTION
Psychic Connecting Rod Rebuild Kit for KTM 85 SX and 105 SX
Enhance the performance and durability of your KTM motorcycle's engine with this high-quality connecting rod rebuild kit from Psychic. Engineered as a heavy-duty OE replacement, this kit is designed to be compatible with both original equipment and aftermarket crankshafts, ensuring a seamless integration into your existing setup.
Key Features:
- Premium Materials: Constructed from certified chrome alloy steel for exceptional strength and longevity. Crankpins are made from hot-rolled ASTM steel and are case-hardened for superior wear resistance.
- High RPM Performance: Features advanced caged needle roller bearing designs specifically engineered to withstand the demands of high RPM operation.
- Enhanced Durability: Includes bronze phosphor thrust washers with a silver coating to further boost durability under stress.
- Complete Kit: This comprehensive kit contains all necessary components for a full rebuild, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where applicable.
- Versatile Compatibility: Suitable for use with both OE and aftermarket crankshafts, offering flexibility for your repair or upgrade.
- Advanced Manufacturing: Utilizes SNCM220 material for robust construction.
Specifications:
- Centre to Centre: 96 mm
- Small End Bearing Dimensions: 14x18x16.8 mm
- Small End Bore Diameter: 18 mm
- Small End Width: 13 mm
- Big End Bearing Dimensions: 22x28x15.8 mm
- Big End Bore Diameter: 28 mm
- Big End Width: 16 mm
- Big End Pin Diameter: 22 mm
- Big End Pin Length: 46 mm
- Washer Thickness: 1.00 mm
