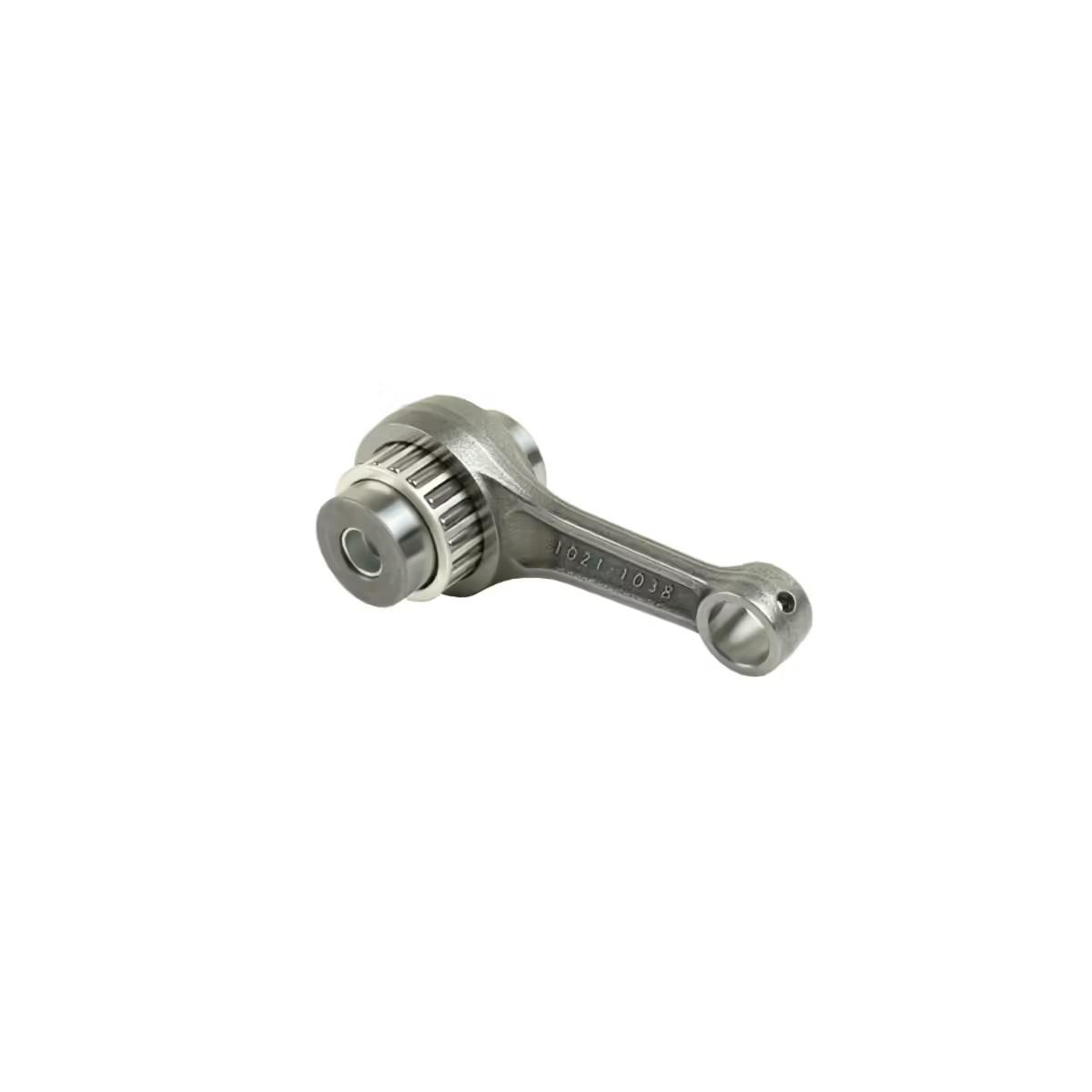

CONNECTING ROD KIT YAMAHA WR/YZ 250 14-25, ATHENA P40321021

Athena Connecting Rod Kit

This Athena Connecting Rod Kit is engineered for high-performance offroad motorcycles. Crafted using advanced materials and treatments, this kit is designed to provide exceptional durability and reliability for one of the most heavily stressed components in your engine. Athena's manufacturing process ensures an excellent rigidity-to-weight ratio and superior resistance to stress, all while maintaining competitive pricing.

Key Features:

• Premium Materials: Constructed with advanced materials and treatments for maximum performance.
• Enhanced Durability: Offers improved resistance to stress for longevity.
• Optimized Design: Achieves an excellent rigidity-weight ratio.
• High-Quality Construction: Manufactured to meet stringent performance standards.

Technical Specifications:

• Big End Bore: 38.00 mm
• Big End Pin Diameter: 30.00 mm
• Big End Width: 18.00 mm
• Center To Center Length: 92.50 mm
• Net Weight: 0.54 Kg
• Piston Pin Diameter: 16.00 mm
• Small End Width: 15.00 mm

Part Numbers:

• Athena: P40321021
• Partner Cross Reference: 1SM116510100, 1SM-11651-01-00, HOTRODS 8706, PROX 03.2414, WOSSNER P4063, 1SM-11651-00-00
