CONNECTING ROD KIT YAM DT100, RY-2008 558-11651-00 YAMAHA
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days

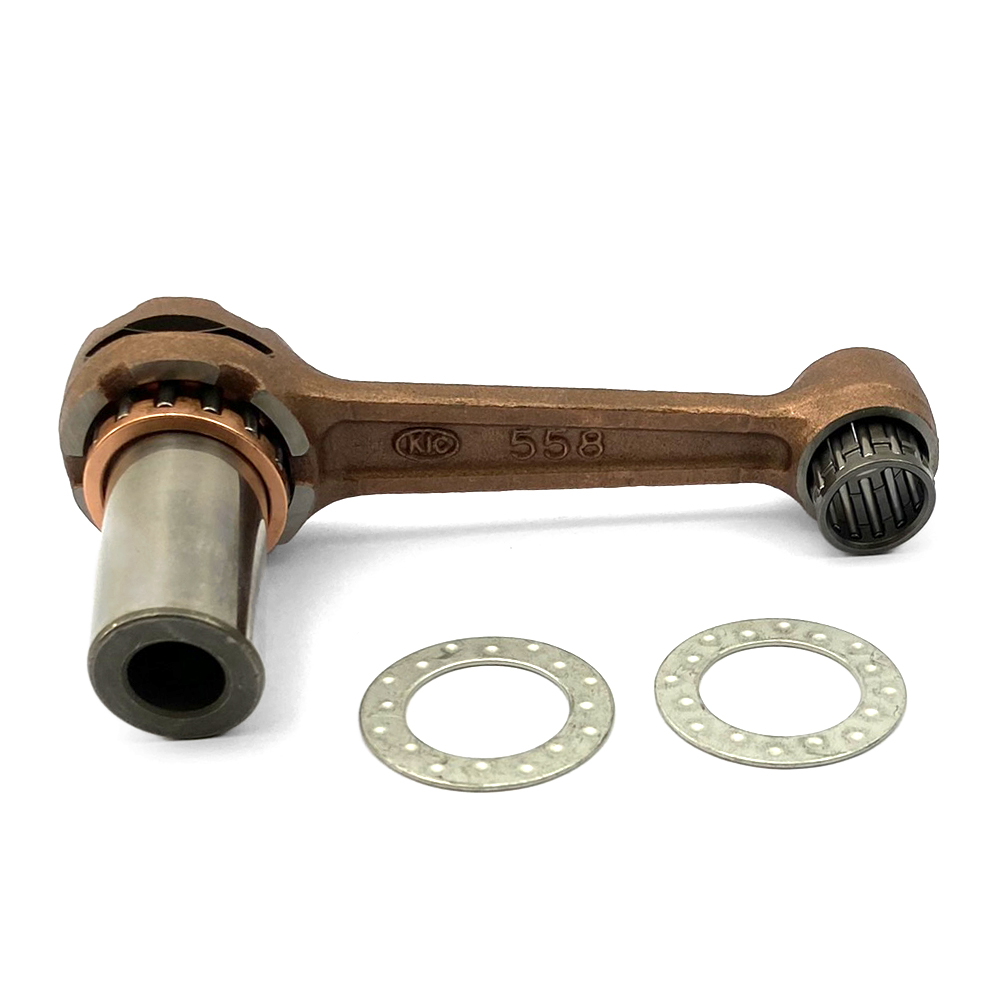

CONNECTING ROD KIT YAM DT100, RY-2008 558-11651-00 YAMAHA. This connecting rod kit is designed for YAMAHA RX-100 / DT-100X W/W, 1972-1983, YAMAHA DT100 LT2 LT3MX MX100 RS100. Cross reference number 558-11651-00-00. Dimensions: A = 100 mm, B = 14 mm, C = 22 mm, D = 15 mm, E = 15 mm, F = 49 mm. Pin: DIA. 22 × L 49. Washer: 34.5 × 22.2 × 1. Big end bearing: 22*28*14.8. Small end bearing: 14*18*16.5. Weight: 272 grams. Manufactured by Factory Image Racing.
- SKU
- 56-2944
- Brand
- Factory Image Racing
- Availability
- Out of Stock
Fitments (22)
| Make | Model | Year |
|---|---|---|
| YAMAHA | DT 100 | 1974 |
| YAMAHA | DT 100 | 1975 |
| YAMAHA | DT 100 | 1976 |
| YAMAHA | DT 100 | 1977 |
| YAMAHA | DT 100 | 1978 |
| YAMAHA | DT 100 | 1979 |
| YAMAHA | DT 100 | 1980 |
| YAMAHA | DT 100 | 1981 |
| YAMAHA | DT 100 | 1982 |
| YAMAHA | DT 100 | 1983 |
| YAMAHA | RX 100 | 1985 |
| YAMAHA | RX 100 | 1986 |
| YAMAHA | RX 100 | 1987 |
| YAMAHA | RX 100 | 1988 |
| YAMAHA | RX 100 | 1989 |
| YAMAHA | RX 100 | 1990 |
| YAMAHA | RX 100 | 1991 |
| YAMAHA | RX 100 | 1992 |
| YAMAHA | RX 100 | 1993 |
| YAMAHA | RX 100 | 1994 |
| YAMAHA | RX 100 | 1995 |
| YAMAHA | RX 100 | 1996 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250559
FULL DESCRIPTION
Connecting Rod Kit for Yamaha Motorcycles
This connecting rod kit is designed to be a high-quality replacement part for select Yamaha motorcycle models. Ensure your engine's performance is restored with this essential component.
Key Features:
- Direct Replacement: Engineered to meet or exceed original equipment specifications for a precise fit.
- Durable Construction: Built with robust materials for longevity and reliable operation.
- Complete Kit: Includes all necessary components for a straightforward installation.
Specifications:
This kit includes parts with the following approximate dimensions:
- Connecting Rod Dimensions: A = 100mm, B = 14mm, C = 22mm, D = 15mm, E = 15mm, F = 49mm
- Pin Diameter: 22mm
- Pin Length: 49mm
- Washer Dimensions: 34.5mm x 22.2mm x 1mm
- Big End Bearing Dimensions: 22mm x 28mm x 14.8mm
- Small End Bearing Dimensions: 14mm x 18mm x 16.5mm
Cross reference number: 558-11651-00-00.
