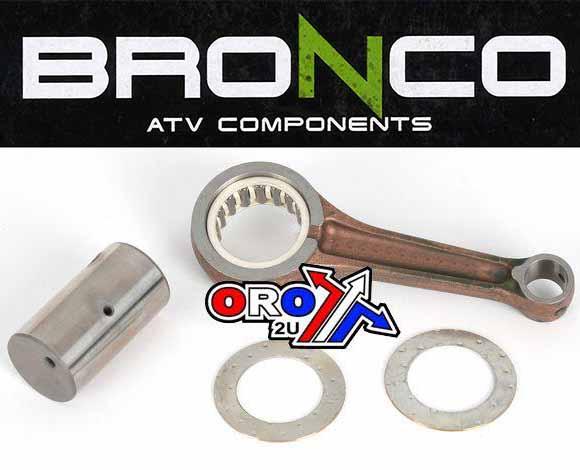

CONNECTING ROD KIT TRX250, BRONCO AT-09196 HONDA ATV

BRONCO Connecting Rod Kit for Honda ATVs

This BRONCO Connecting Rod Kit is engineered as a heavy-duty OE replacement part. It is designed to meet or exceed OEM quality standards, ensuring reliable performance for your Honda ATV.

Key Features:

• Superior Strength: Crafted from certified Chrome alloy steel for exceptional durability.
• Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and undergo a case hardening process for increased wear resistance.
• Advanced Bearing Design: Utilizes the latest caged needle roller bearing technology for enhanced longevity, especially at high RPMs.
• High-Quality Thrust Washers: Features bronze phosphor thrust washers with a silver coating for optimal performance.
• Complete Assembly: Each kit includes the connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers where applicable.
• OE Compatibility: Fully compatible with both aftermarket and original equipment (OE) crankshafts.
• Material: Constructed with SNCM220 material for robust performance.
• Reliability Tested: All BRONCO connecting rod kits are factory tested to ensure 100% reliability.
• Performance Ready: Designed to effectively handle increased power loads.
• Direct Replacement: Offers a direct fit as an OEM replacement part.

Specifications:

• Center to Center: 105.50 MM
• Small End Bore Diameter: 15 MM
• Small End Width: 18 MM
• Big End Bearing Size: 30x38x18 MM
• Big End Bore Diameter: 38 MM
• Big End Width: 18 MM
• Big End Pin Diameter: 30 MM
• Big End Pin Length: 54.00 MM
• Washer Thickness: 35x45x1.0 MM
