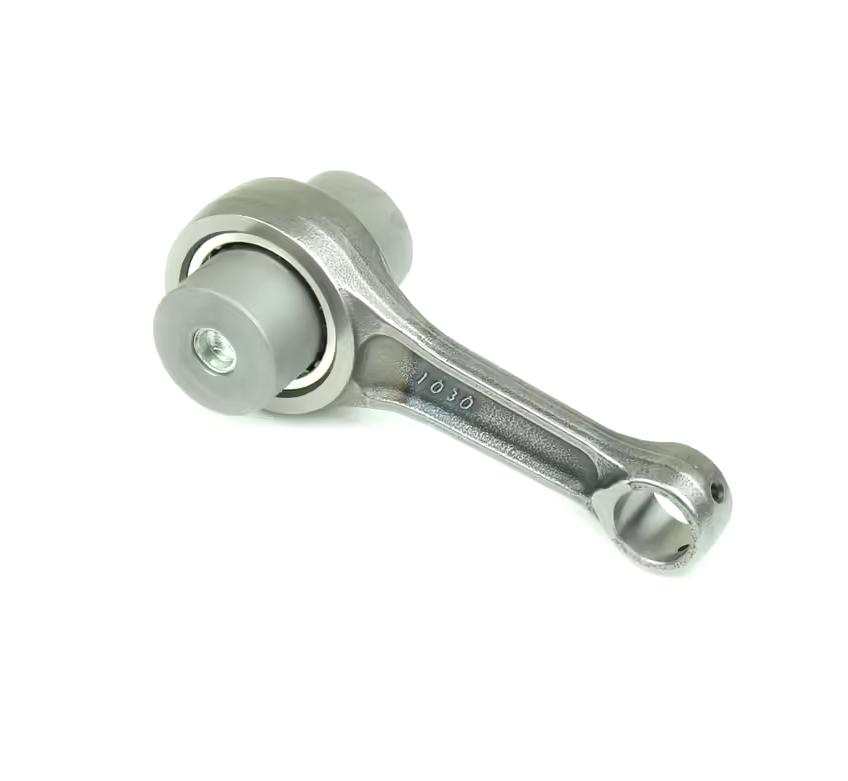

CONNECTING ROD KIT SUZUKI RM-Z 450 05-25, ATHENA P40321030
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
CONNECTING ROD KIT SUZUKI RM-Z 450 05-25, ATHENA P40321030. Athena connecting rods are made using advanced materials and treatments for engine component durability. Manufacturing processes offer an excellent rigidity-weight ratio and resistance to stress at a competitive price. Technical features: Big End Bore (mm) 42.00, Big End Pin Diameter (mm) 34.00, Big End Width (mm) 20.00, Center To Center (mm) 106.15, Net Weight (Kg) 0.71, Piston Pin Diameter (mm) 19.00, Small End Width (mm) 18.50. Partner Cross Reference: 12210-10H10, 12210-10H11, 09263-30060-0B0, 12161-49H00-0B0, HR008661, HOTRODS 8661, PROX 03.3405, PSYCHIC MX-09016. Part No. 56-136.ATH.
- SKU
- 56-136.ATH
- Brand
- Athena
- Availability
- In Stock (1)
Fitments (16)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 450 | 2005 |
| SUZUKI | RM-Z 450 | 2006 |
| SUZUKI | RM-Z 450 | 2007 |
| SUZUKI | RM-Z 450 | 2013 |
| SUZUKI | RM-Z 450 | 2014 |
| SUZUKI | RM-Z 450 | 2015 |
| SUZUKI | RM-Z 450 | 2016 |
| SUZUKI | RM-Z 450 | 2017 |
| SUZUKI | RM-Z 450 | 2018 |
| SUZUKI | RM-Z 450 | 2019 |
| SUZUKI | RM-Z 450 | 2020 |
| SUZUKI | RM-Z 450 | 2021 |
| SUZUKI | RM-Z 450 | 2022 |
| SUZUKI | RM-Z 450 | 2023 |
| SUZUKI | RM-Z 450 | 2024 |
| SUZUKI | RM-Z 450 | 2025 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250036
FULL DESCRIPTION
Athena Connecting Rod Offroad Kit
Upgrade your engine's performance and durability with the Athena Connecting Rod Offroad Kit. Engineered using advanced materials and treatments, this connecting rod is designed to withstand the extreme stresses of offroad riding. It offers an exceptional rigidity-to-weight ratio and enhanced resistance to stress, all while maintaining a competitive price point.
Key Technical Features:
- Big End Bore: 42.00 mm
- Big End Pin Diameter: 34.00 mm
- Big End Width: 20.00 mm
- Center To Center Length: 106.15 mm
- Net Weight: 0.71 Kg
- Piston Pin Diameter: 19.00 mm
- Small End Width: 18.50 mm
Partner Cross Reference Codes:
- 12210-10H10
- 12210-10H11
- 09263-30060-0B0
- 12161-49H00-0B0
- HR008661
- HOTRODS 8661
- PROX 03.3405
- PSYCHIC MX-09016
