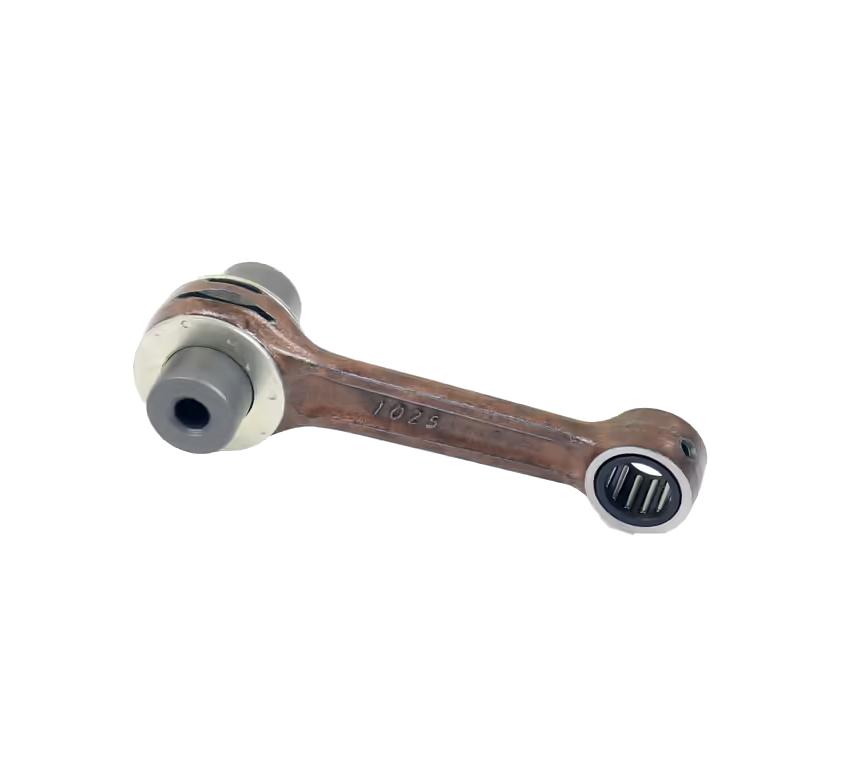

CONNECTING ROD KIT SUZUKI RM 85 02-23, ATHENA P40321025
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Athena Connecting Rod Offroad Kit. Made with advanced materials and treatments for high stress resistance. Offers excellent rigidity-weight ratio and improved stress resistance at a competitive price. Technical features: Big End Bore 26.00mm, Big End Pin Diameter 20.00mm, Big End Width 14.00mm, Center To Center 93.50mm, Net Weight 0.25kg, Piston Pin Diameter 18.00mm, Small End Width 14.00mm, Washer Thickness 1.50mm. Part Number: P40321025.
- SKU
- 56-108.ATH
- Brand
- Athena
- Availability
- In Stock (3)
Fitments (34)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 80 | 1990 |
| SUZUKI | RM 80 | 1991 |
| SUZUKI | RM 80 | 1992 |
| SUZUKI | RM 80 | 1993 |
| SUZUKI | RM 80 | 1994 |
| SUZUKI | RM 80 | 1995 |
| SUZUKI | RM 80 | 1996 |
| SUZUKI | RM 80 | 1997 |
| SUZUKI | RM 80 | 1998 |
| SUZUKI | RM 80 | 1999 |
| SUZUKI | RM 80 | 2000 |
| SUZUKI | RM 80 | 2001 |
| SUZUKI | RM 85 | 2002 |
| SUZUKI | RM 85 | 2003 |
| SUZUKI | RM 85 | 2004 |
| SUZUKI | RM 85 | 2005 |
| SUZUKI | RM 85 | 2006 |
| SUZUKI | RM 85 | 2007 |
| SUZUKI | RM 85 | 2008 |
| SUZUKI | RM 85 | 2009 |
| SUZUKI | RM 85 | 2010 |
| SUZUKI | RM 85 | 2011 |
| SUZUKI | RM 85 | 2012 |
| SUZUKI | RM 85 | 2013 |
| SUZUKI | RM 85 | 2014 |
| SUZUKI | RM 85 | 2015 |
| SUZUKI | RM 85 | 2016 |
| SUZUKI | RM 85 | 2017 |
| SUZUKI | RM 85 | 2018 |
| SUZUKI | RM 85 | 2019 |
| SUZUKI | RM 85 | 2020 |
| SUZUKI | RM 85 | 2021 |
| SUZUKI | RM 85 | 2022 |
| SUZUKI | RM 85 | 2023 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249951
FULL DESCRIPTION
Athena Connecting Rod Kit
Upgrade your motorcycle's engine performance with this high-quality Athena Connecting Rod Kit. Engineered for durability and superior strength, this kit is crafted using advanced materials and treatments to withstand the high stresses placed on this critical engine component. Athena's manufacturing processes ensure an exceptional rigidity-to-weight ratio and enhanced resistance to stress, all while maintaining a competitive price point.
Key Features:
- Constructed with advanced materials for maximum durability.
- Designed for optimal rigidity-weight ratio.
- Offers superior resistance to stress under demanding conditions.
- Manufactured to provide reliable performance.
Technical Specifications:
- Big End Bore: 26.00 mm
- Big End Pin Diameter: 20.00 mm
- Big End Width: 14.00 mm
- Center To Center Length: 93.50 mm
- Net Weight: 0.25 Kg
- Piston Pin Diameter: 18.00 mm
- Small End Width: 14.00 mm
- Washer Thickness: 1.50 mm
