CONNECTING ROD KIT SUZUKI LT-A500F BRONCO AT-09248
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

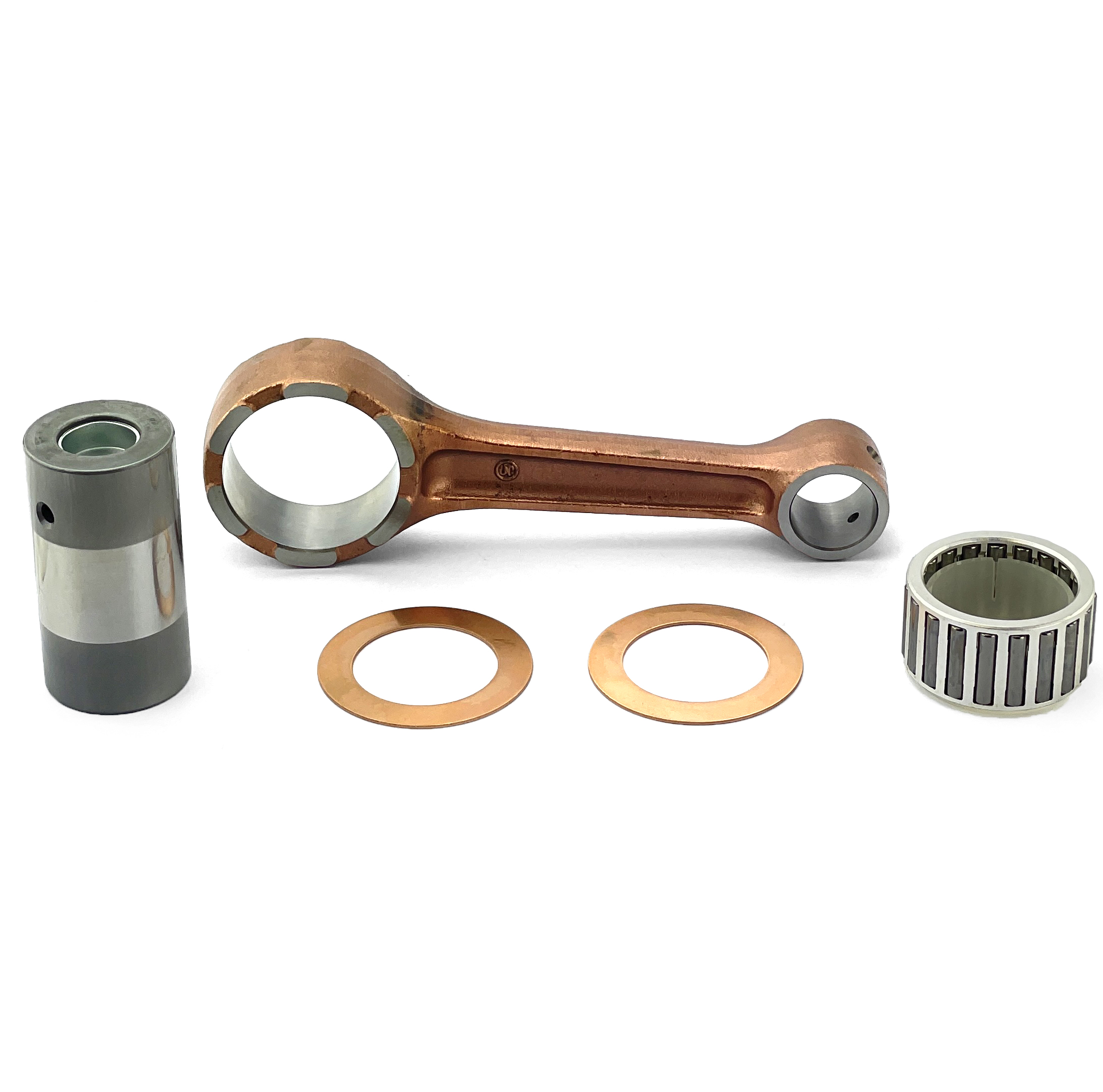

BRONCO AT-09248 connecting rod rebuild kit is a heavy-duty OE replacement. Certified Chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods use the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. The rod assembly is sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material: SNCM220. Size (mm): Centre to Centre: 139.80, Small End Bore ø: 23, Small End Width: 25, Big End Bearing: 37x47x24.8, Big End Bore ø: 47, Big End Width: 25, Big End Pin ø: 37, Big End Pin Length: 70.00, Washer Thickness: 37.4x55x1.0. Part No. 56-217.BR. Cross reference numbers: Vesrah VA-3009 VA3009, 09160-37006, 09263-37007, 12161-32E00, 12210-24B01-0A0.
- SKU
- 56-217.BR
- Brand
- Bronco
- Availability
- In Stock (19)
Fitments (99)
| Make | Model | Year |
|---|---|---|
| ARCTIC CAT | 400 2x4 | 2001 |
| ARCTIC CAT | 400 2x4 | 2002 |
| ARCTIC CAT | 400 4x4 Manual | 2001 |
| ARCTIC CAT | 400 4x4 Manual | 2002 |
| ARCTIC CAT | 4X4 MANUAL 400 | 2001 |
| ARCTIC CAT | 4X4 MANUAL 400 | 2002 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2000 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2001 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2002 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2003 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2004 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2005 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2006 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2007 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2008 |
| ARCTIC CAT | 500 4x4 / FIS / TBX / TRV Auto | 2009 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 1998 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 1999 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2000 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2001 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2002 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2003 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2004 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2005 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2006 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2007 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2008 |
| ARCTIC CAT | 500 4x4 / FIS Manual | 2009 |
| ARCTIC CAT | ALL 500 | 1998 |
| ARCTIC CAT | ALL 500 | 1999 |
| ARCTIC CAT | ALL 500 | 2000 |
| ARCTIC CAT | ALL 500 | 2001 |
| ARCTIC CAT | ALL 500 | 2002 |
| ARCTIC CAT | ALL 500 | 2003 |
| ARCTIC CAT | ALL 500 | 2004 |
| ARCTIC CAT | ALL 500 | 2005 |
| ARCTIC CAT | ALL 500 | 2006 |
| ARCTIC CAT | ALL 500 | 2007 |
| ARCTIC CAT | ALL 500 | 2008 |
| ARCTIC CAT | ALL 500 | 2009 |
| ARCTIC CAT | TRV 400 | 2001 |
| ARCTIC CAT | TRV 400 | 2002 |
| ARCTIC CAT | TRV 500 | 2000 |
| ARCTIC CAT | TRV 500 | 2001 |
| ARCTIC CAT | TRV 500 | 2002 |
| ARCTIC CAT | TRV 500 | 2003 |
| ARCTIC CAT | TRV 500 | 2004 |
| ARCTIC CAT | TRV 500 | 2005 |
| ARCTIC CAT | TRV 500 | 2006 |
| ARCTIC CAT | TRV 500 | 2007 |
| ARCTIC CAT | TRV 500 | 2008 |
| ARCTIC CAT | TRV 500 | 2009 |
| SUZUKI | LT A F 500 | 2000 |
| SUZUKI | LT A F 500 | 2001 |
| SUZUKI | LT A F 500 | 2002 |
| SUZUKI | LT A F 500 | 2003 |
| SUZUKI | LT A F 500 | 2004 |
| SUZUKI | LT A F 500 | 2005 |
| SUZUKI | LT A F 500 | 2006 |
| SUZUKI | LT A F VINSON 500 | 2002 |
| SUZUKI | LT A F VINSON 500 | 2003 |
| SUZUKI | LT A F VINSON 500 | 2004 |
| SUZUKI | LT A F VINSON 500 | 2005 |
| SUZUKI | LT A F VINSON 500 | 2006 |
| SUZUKI | LT A F VINSON 500 | 2007 |
| SUZUKI | LT F 500 | 2003 |
| SUZUKI | LT F 500 | 2004 |
| SUZUKI | LT F 500 | 2005 |
| SUZUKI | LT F 500 | 2006 |
| SUZUKI | LT F 500 | 2007 |
| SUZUKI | LT F QUADRUNNER 500 | 1998 |
| SUZUKI | LT F QUADRUNNER 500 | 1999 |
| SUZUKI | LT F QUADRUNNER 500 | 2000 |
| SUZUKI | LT F QUADRUNNER 500 | 2001 |
| SUZUKI | LT F QUADRUNNER 500 | 2002 |
| SUZUKI | LT F QUADRUNNER 500 | 2003 |
| SUZUKI | LT F QUADRUNNER 500 | 2004 |
| SUZUKI | LT F QUADRUNNER 500 | 2005 |
| SUZUKI | LT-A 500F Quadmaster | 2000 |
| SUZUKI | LT-A 500F Quadmaster | 2001 |
| SUZUKI | LT-A 500F Vinson 4WD | 2002 |
| SUZUKI | LT-A 500F Vinson 4WD | 2003 |
| SUZUKI | LT-A 500F Vinson 4WD | 2004 |
| SUZUKI | LT-A 500F Vinson 4WD | 2005 |
| SUZUKI | LT-A 500F Vinson 4WD | 2006 |
| SUZUKI | LT-A 500F Vinson 4WD | 2007 |
| SUZUKI | LT-F 500F Quadrunner | 1998 |
| SUZUKI | LT-F 500F Quadrunner | 1999 |
| SUZUKI | LT-F 500F Quadrunner | 2000 |
| SUZUKI | LT-F 500F Quadrunner | 2001 |
| SUZUKI | LT-F 500F Quadrunner | 2002 |
| SUZUKI | LT-F 500F Quadrunner | 2003 |
| SUZUKI | LT-F 500F Quadrunner | 2004 |
| SUZUKI | LT-F 500F Quadrunner | 2005 |
| SUZUKI | LT-F 500F Vinson 4WD | 2003 |
| SUZUKI | LT-F 500F Vinson 4WD | 2004 |
| SUZUKI | LT-F 500F Vinson 4WD | 2005 |
| SUZUKI | LT-F 500F Vinson 4WD | 2006 |
| SUZUKI | LT-F 500F Vinson 4WD | 2007 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250296
FULL DESCRIPTION
Bronco Connecting Rod Rebuild Kit
This heavy-duty OE replacement connecting rod kit from Bronco is designed to provide superior strength and longevity for your motorcycle or ATV engine. Manufactured with certified Chrome alloy steel and hot-rolled ASTM steel crankpins, this kit ensures reliable performance even under demanding conditions.
Key Features:
- Superior Strength: Constructed from certified Chrome alloy steel (SNCM220) for exceptional durability.
- Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for increased wear resistance.
- High RPM Longevity: Features advanced caged needle roller bearing designs for sustained performance at high RPMs.
- Premium Thrust Washers: Includes thrust washers made from bronze phosphor and silver coated for enhanced protection.
- Complete Kit: Sold as a complete assembly including the rod, crankpin, crankpin bearing, top end bearing, and necessary thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
Specifications (MM):
- Centre to Centre: 139.80
- Small End Bore Diameter: 23
- Small End Width: 25
- Big End Bearing: 37x47x24.8
- Big End Bore Diameter: 47
- Big End Width: 25
- Big End Pin Diameter: 37
- Big End Pin Length: 70.00
- Washer Thickness: 37.4x55x1.0
