CONNECTING ROD KIT KLF300, BRONCO AT-09164, 13044-5066
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

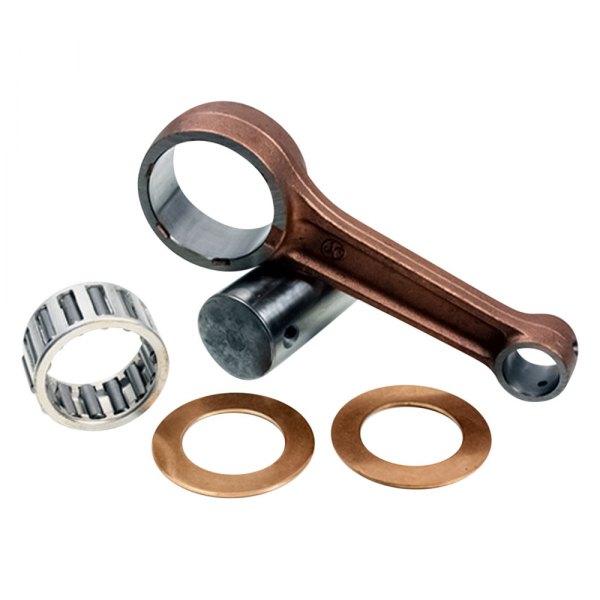

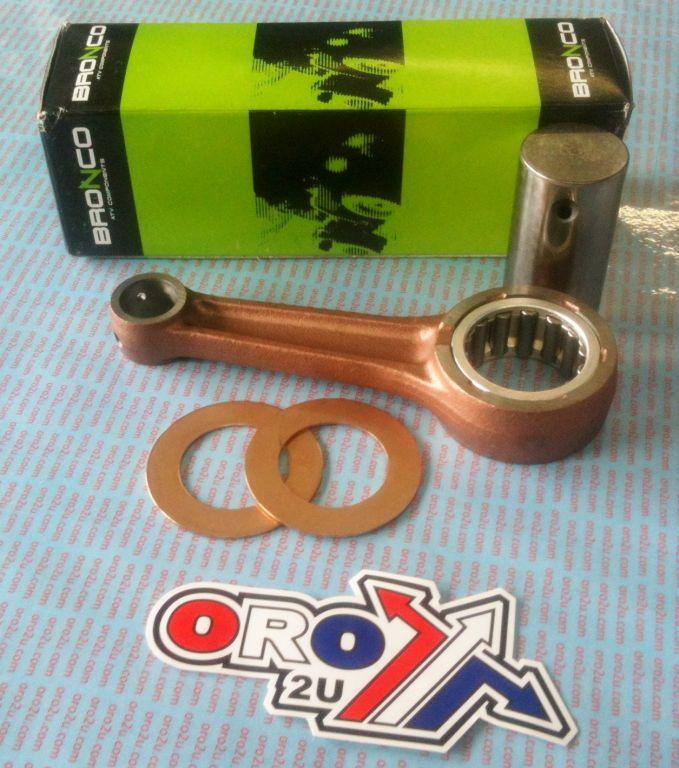

CONNECTING ROD KIT KLF300, BRONCO AT-09164, 13044-5066. Heavy-duty OE replacement connecting rods. Certified Chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Centre to Centre size: 117mm. Small End Bearing: None. Small End Bore Ø: 18mm. Small End Width: 18mm. Big End Bearing: 32x43x22.5mm. Big End Bore Ø: 43mm. Big End Width: 22.6mm. Big End Pin Ø: 32mm. Big End Pin Length: 58.10mm. Washer Thickness: 32x52x1.2mm. Part No. 56-250.DR. Cross reference numbers: Vesrah VA4008 / VA-4008, 13044-5066. Manufacturer: Namura Technologies.
- SKU
- 56-250.DR
- Brand
- Namura Technologies
- Availability
- In Stock (13)
Fitments (119)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KEF 300 | 1995 |
| KAWASAKI | KEF 300 | 1996 |
| KAWASAKI | KEF 300 | 1997 |
| KAWASAKI | KEF 300 | 1998 |
| KAWASAKI | KEF 300 | 1999 |
| KAWASAKI | KEF 300 | 2000 |
| KAWASAKI | KEF 300 | 2001 |
| KAWASAKI | KEF 300 | 2002 |
| KAWASAKI | KEF 300 | 2003 |
| KAWASAKI | KEF 300 Lakota | 1995 |
| KAWASAKI | KEF 300 Lakota | 1996 |
| KAWASAKI | KEF 300 Lakota | 1997 |
| KAWASAKI | KEF 300 Lakota | 1998 |
| KAWASAKI | KEF 300 Lakota | 1999 |
| KAWASAKI | KEF 300 Lakota | 2000 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 1995 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 1996 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 1997 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 1998 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 1999 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 2000 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 2001 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 2002 |
| KAWASAKI | KEF 300 Lakota / Lakota Sport | 2003 |
| KAWASAKI | KEF 300 Lakota Sport | 2001 |
| KAWASAKI | KEF 300 Lakota Sport | 2002 |
| KAWASAKI | KEF 300 Lakota Sport | 2003 |
| KAWASAKI | KLF 300 Bayou | 1986 |
| KAWASAKI | KLF 300 Bayou | 1987 |
| KAWASAKI | KLF 300 Bayou | 1988 |
| KAWASAKI | KLF 300 Bayou | 1989 |
| KAWASAKI | KLF 300 Bayou | 1990 |
| KAWASAKI | KLF 300 Bayou | 1991 |
| KAWASAKI | KLF 300 Bayou | 1992 |
| KAWASAKI | KLF 300 Bayou | 1993 |
| KAWASAKI | KLF 300 Bayou | 1994 |
| KAWASAKI | KLF 300 Bayou | 1995 |
| KAWASAKI | KLF 300 Bayou | 1996 |
| KAWASAKI | KLF 300 Bayou | 1997 |
| KAWASAKI | KLF 300 Bayou | 1998 |
| KAWASAKI | KLF 300 Bayou | 1999 |
| KAWASAKI | KLF 300 Bayou | 2000 |
| KAWASAKI | KLF 300 Bayou | 2001 |
| KAWASAKI | KLF 300 Bayou | 2002 |
| KAWASAKI | KLF 300 Bayou | 2003 |
| KAWASAKI | KLF 300 Bayou | 2004 |
| KAWASAKI | KLF 300 Bayou | 2005 |
| KAWASAKI | KLF 300 Bayou A / B | 1986 |
| KAWASAKI | KLF 300 Bayou A / B | 1987 |
| KAWASAKI | KLF 300 Bayou A / B | 1988 |
| KAWASAKI | KLF 300 Bayou A / B | 1989 |
| KAWASAKI | KLF 300 Bayou A / B | 1990 |
| KAWASAKI | KLF 300 Bayou A / B | 1991 |
| KAWASAKI | KLF 300 Bayou A / B | 1992 |
| KAWASAKI | KLF 300 Bayou A / B | 1993 |
| KAWASAKI | KLF 300 Bayou A / B | 1994 |
| KAWASAKI | KLF 300 Bayou A / B | 1995 |
| KAWASAKI | KLF 300 Bayou A / B | 1996 |
| KAWASAKI | KLF 300 Bayou A / B | 1997 |
| KAWASAKI | KLF 300 Bayou A / B | 1998 |
| KAWASAKI | KLF 300 Bayou A / B | 1999 |
| KAWASAKI | KLF 300 Bayou A / B | 2000 |
| KAWASAKI | KLF 300 Bayou A / B | 2001 |
| KAWASAKI | KLF 300 Bayou A / B | 2002 |
| KAWASAKI | KLF 300 Bayou A / B | 2003 |
| KAWASAKI | KLF 300 Bayou A / B | 2004 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1989 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1990 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1991 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1992 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1993 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1994 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1995 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1996 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1997 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1998 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 1999 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2000 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2001 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2002 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2003 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2004 |
| KAWASAKI | KLF 300 Bayou C 4x4 | 2005 |
| KAWASAKI | KLF BAYOU 300 | 1986 |
| KAWASAKI | KLF BAYOU 300 | 1987 |
| KAWASAKI | KLF BAYOU 300 | 1988 |
| KAWASAKI | KLF BAYOU 300 | 1989 |
| KAWASAKI | KLF BAYOU 300 | 1990 |
| KAWASAKI | KLF BAYOU 300 | 1991 |
| KAWASAKI | KLF BAYOU 300 | 1992 |
| KAWASAKI | KLF BAYOU 300 | 1993 |
| KAWASAKI | KLF BAYOU 300 | 1994 |
| KAWASAKI | KLF BAYOU 300 | 1995 |
| KAWASAKI | KLF BAYOU 300 | 1996 |
| KAWASAKI | KLF BAYOU 300 | 1997 |
| KAWASAKI | KLF BAYOU 300 | 1998 |
| KAWASAKI | KLF BAYOU 300 | 1999 |
| KAWASAKI | KLF BAYOU 300 | 2000 |
| KAWASAKI | KLF BAYOU 300 | 2001 |
| KAWASAKI | KLF BAYOU 300 | 2002 |
| KAWASAKI | KLF BAYOU 300 | 2003 |
| KAWASAKI | KLF BAYOU 300 | 2004 |
| KAWASAKI | KLF BAYOU 300 | 2005 |
| KAWASAKI | KVF 300 Prairie | 1999 |
| KAWASAKI | KVF 300 Prairie | 2000 |
| KAWASAKI | KVF 300 Prairie | 2001 |
| KAWASAKI | KVF 300 Prairie | 2002 |
| KAWASAKI | KVF 300 Prairie / Prairie 4x4 | 1999 |
| KAWASAKI | KVF 300 Prairie / Prairie 4x4 | 2000 |
| KAWASAKI | KVF 300 Prairie / Prairie 4x4 | 2001 |
| KAWASAKI | KVF 300 Prairie / Prairie 4x4 | 2002 |
| KAWASAKI | KVF 300 Prairie 4x4 | 1999 |
| KAWASAKI | KVF 300 Prairie 4x4 | 2000 |
| KAWASAKI | KVF 300 Prairie 4x4 | 2001 |
| KAWASAKI | KVF 300 Prairie 4x4 | 2002 |
| KAWASAKI | KVF PRAIRIE 300 | 1999 |
| KAWASAKI | KVF PRAIRIE 300 | 2000 |
| KAWASAKI | KVF PRAIRIE 300 | 2001 |
| KAWASAKI | KVF PRAIRIE 300 | 2002 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250381
FULL DESCRIPTION
Connecting Rod Rebuild Kit
This heavy-duty OE replacement connecting rod kit is designed to provide superior strength and longevity for your engine. Constructed from certified chrome alloy steel, the connecting rods offer exceptional durability.
The crankpins are precision manufactured from hot-rolled ASTM steel and undergo a case hardening process for increased wear resistance. Psychic Rods utilizes advanced caged needle roller bearing designs, ensuring reliable performance even at high RPMs.
Thrust washers are made from phosphor bronze with a silver coating for optimal friction management. This rod assembly is sold as a complete kit, including the connecting rod, crankpin, crankpin bearing, top end bearing, and any necessary thrust washers.
This kit is fully compatible with both aftermarket and original equipment crankshafts. The primary material used is SNCM220.
Specifications:
- Center to Center: 117 MM
- Small End Bearing: None
- Small End Bore Diameter: 18 MM
- Small End Width: 18 MM
- Big End Bearing: 32x43x22.5 MM
- Big End Bore Diameter: 43 MM
- Big End Width: 22.6 MM
- Big End Pin Diameter: 32 MM
- Big End Pin Length: 58.10 MM
- Washer Thickness: 32x52x1.2 MM
Cross Reference Numbers:
- Vesrah VA4008
- 13044-5066
QUESTIONS? JUST ASK
Talk to John or Phil. Real people, Monday to Friday, 10:00 to 17:00.
Check the fitment table on this page against your make, model and year. Not sure? Call or email us and we will check it for you before you order.
UK delivery is £4.99, or free on orders over £60. Orders ship within 3 working days, then delivery takes 2–4 business days. Delivery details
Yes. You have 14 days from delivery to return it, unused and in its original packaging. Contact us first and we will send you the return instructions. Returns policy
By card, PayPal, Apple Pay or Google Pay, or spread the cost with Klarna. Payment is taken securely by Stripe, and the options for your order are shown at checkout.
More answers in our FAQ.
