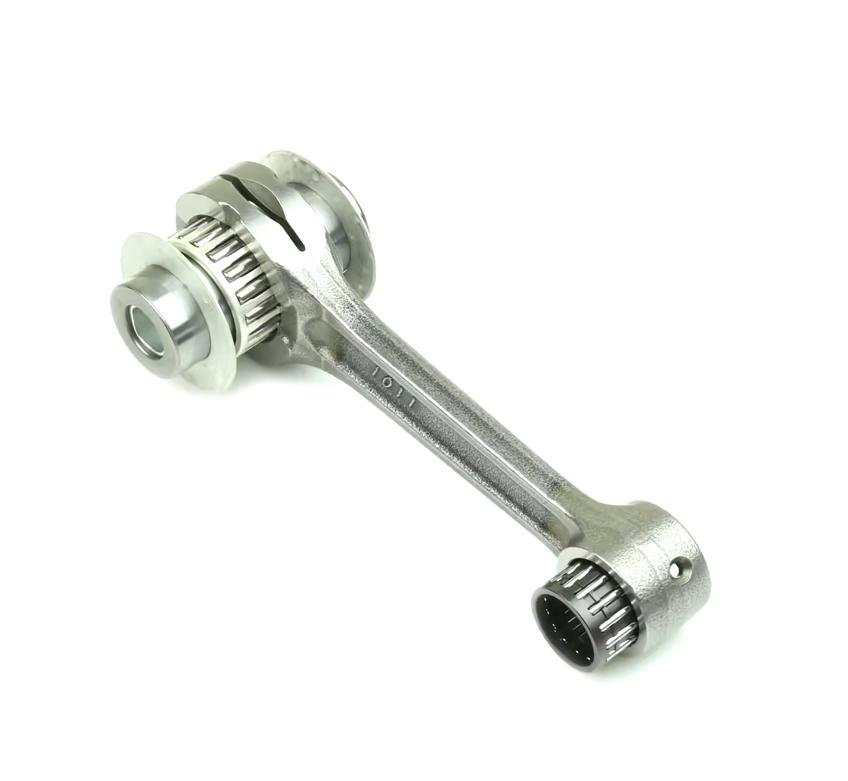

CONNECTING ROD KIT HONDA CR 250 02-07, ATHENA P40321011
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Athena's connecting rods are manufactured using advanced materials and treatments. They offer an excellent rigidity-weight ratio and improved resistance to stress at a competitive price. Technical features include: Big End Bore (mm) 32.00, Big End Pin Diameter (mm) 25.00, Big End Width (mm) 16.50, Center To Center (mm) 125.30, Net Weight (Kg) 0.48, Piston Pin Diameter (mm) 22.00, Small End Width (mm) 20.00, Washer Thickness (mm) 1.00. Partner Cross Reference codes include HOTRODS 8608, WOSSNER P2020, WISECO WPR187, PSYCHIC MX-09009, HONDA: 13300-KSK-670, 13300-KSK-730, 13300-KZ3-L20, and PROX 03.1322. Part No. 56-169.ATH.
- SKU
- 56-169.ATH
- Brand
- Athena
- Availability
- In Stock (7)
Fitments (12)
| Make | Model | Year |
|---|---|---|
| HONDA | CR 250 | 2002 |
| HONDA | CR 250 | 2003 |
| HONDA | CR 250 | 2004 |
| HONDA | CR 250 | 2005 |
| HONDA | CR 250 | 2006 |
| HONDA | CR 250 | 2007 |
| HONDA | CR 250R | 2002 |
| HONDA | CR 250R | 2003 |
| HONDA | CR 250R | 2004 |
| HONDA | CR 250R | 2005 |
| HONDA | CR 250R | 2006 |
| HONDA | CR 250R | 2007 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250131
FULL DESCRIPTION
Athena Connecting Rod Kit for Honda CR 250 (2002-2007)
Upgrade your engine's performance and reliability with the Athena Connecting Rod Kit. Engineered using advanced materials and treatments, this kit is designed to withstand the extreme stresses placed on one of the most critical engine components. Athena's manufacturing process ensures an exceptional rigidity-to-weight ratio and superior stress resistance, all while maintaining a competitive price point.
Key Features:
- Constructed with advanced materials for maximum durability.
- Optimized for an excellent rigidity-weight ratio.
- Enhanced resistance to high stress environments.
- Designed to maintain a competitive price without compromising quality.
Technical Specifications:
- Big End Bore: 32.00 mm
- Big End Pin Diameter: 25.00 mm
- Big End Width: 16.50 mm
- Center To Center Length: 125.30 mm
- Net Weight: 0.48 Kg
- Piston Pin Diameter: 22.00 mm
- Small End Width: 20.00 mm
- Washer Thickness: 1.00 mm
