CONNECTING ROD KIT 96-02 RM250, PSYCHIC MX-09054 SUZUKI
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
CONNECTING ROD CONROD REBUILD KIT PSYCHIC MX-09054 for SUZUKI RM250 1996 - 2002. Heavy-duty OE replacement connecting rods made with certified Chorme alloy steel for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods use the latest caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers. Fully compatible with aftermarket and OE crankshafts. Material: SNCM220. Size specifications: Centre to Centre 125.50mm, Small End Bearing 18x23x22mm, Small End Bore Ø 23mm, Small End Width 20mm, Big End Bearing 24x30x19.8mm, Big End Bore Ø 30mm, Big End Width 20mm, Big End Pin Ø 24mm, Big End Pin Length 58.00mm, Washer Thickness 1.50mm. Part No. 56-879.DR. Cross reference numbers: MX-09054, 12161-37E00, WPR161, HOT RODS 8141, WOSSNER P2026.
- SKU
- 56-879.DR
- Brand
- Psychic
- Availability
- In Stock (3)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 250 | 1996 |
| SUZUKI | RM 250 | 1997 |
| SUZUKI | RM 250 | 1998 |
| SUZUKI | RM 250 | 1999 |
| SUZUKI | RM 250 | 2000 |
| SUZUKI | RM 250 | 2001 |
| SUZUKI | RM 250 | 2002 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252070
FULL DESCRIPTION

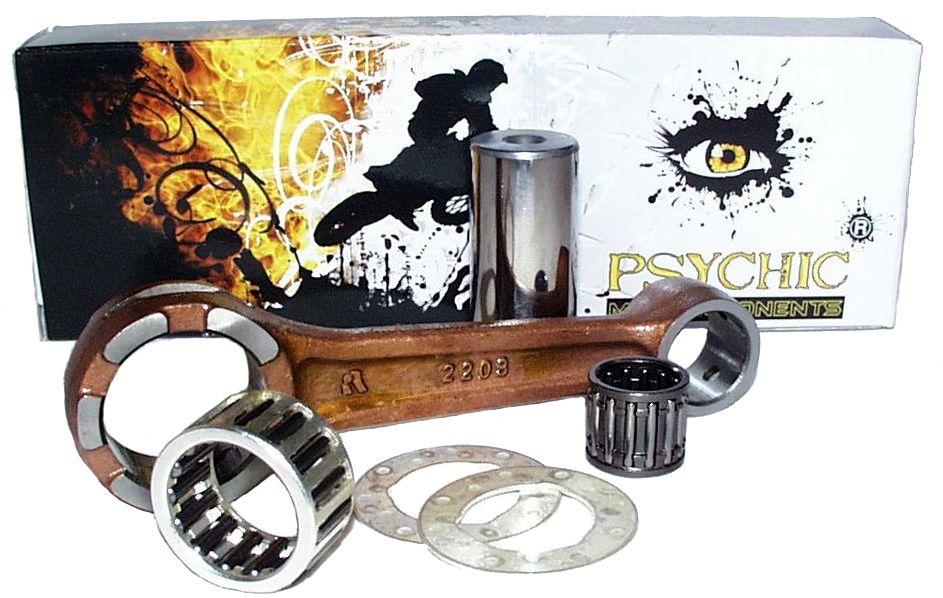

Psychic Connecting Rod Kit
This connecting rod kit from Psychic is designed to be a heavy-duty OE replacement for your motorcycle's engine. It is constructed using certified chrome alloy steel for superior strength and durability.
Key Features:
- Made from certified chrome alloy steel (SNCM220) for enhanced strength.
- Crankpins are manufactured from hot-rolled ASTM steel and are case hardened for longevity.
- Utilizes the latest in caged needle roller bearing designs for high RPM performance and durability.
- Thrust washers are made from bronze phosphor and are silver coated.
- This rod assembly is sold complete and includes the rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if applicable).
- Fully compatible with both aftermarket and OE crankshafts.
Specifications:
- Centre to Centre: 125.50 mm
- Small End Bearing Dimensions: 18x23x22 mm
- Small End Bore Diameter: 23 mm
- Small End Width: 20 mm
- Big End Bearing Dimensions: 24x30x19.8 mm
- Big End Bore Diameter: 30 mm
- Big End Width: 20 mm
- Big End Pin Diameter: 24 mm
- Big End Pin Length: 58.00 mm
- Washer Thickness: 1.50 mm
