CONNECTING ROD KIT 87-95 RM250, HOTROD 8105 SUZUKI RMX250

Hot Rods Connecting Rod Kit for Suzuki RM/RMX 250

This premium connecting rod kit from Hot Rods is engineered for high-performance motorcycle applications, ensuring exceptional durability under demanding conditions. Precision-manufactured for Suzuki RM 250 and RMX 250 models, this kit is built to withstand rigorous use and deliver reliable performance.

Key Features:

• Constructed from hot-rolled ASTM 4115 material for superior strength.
• Case-hardened to 58-62 Rc for enhanced durability.
• Features side scalloping and vent slots designed to minimize bearing race distortion at high RPMs.
• Double-forged rods provide improved grain flow and consistent dimensions.
• Shot-peened and double-honed for maximum resilience under heavy loads.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
• Includes silver-coated thrust washers and crank pin bearings for improved lubricity and wear resistance.

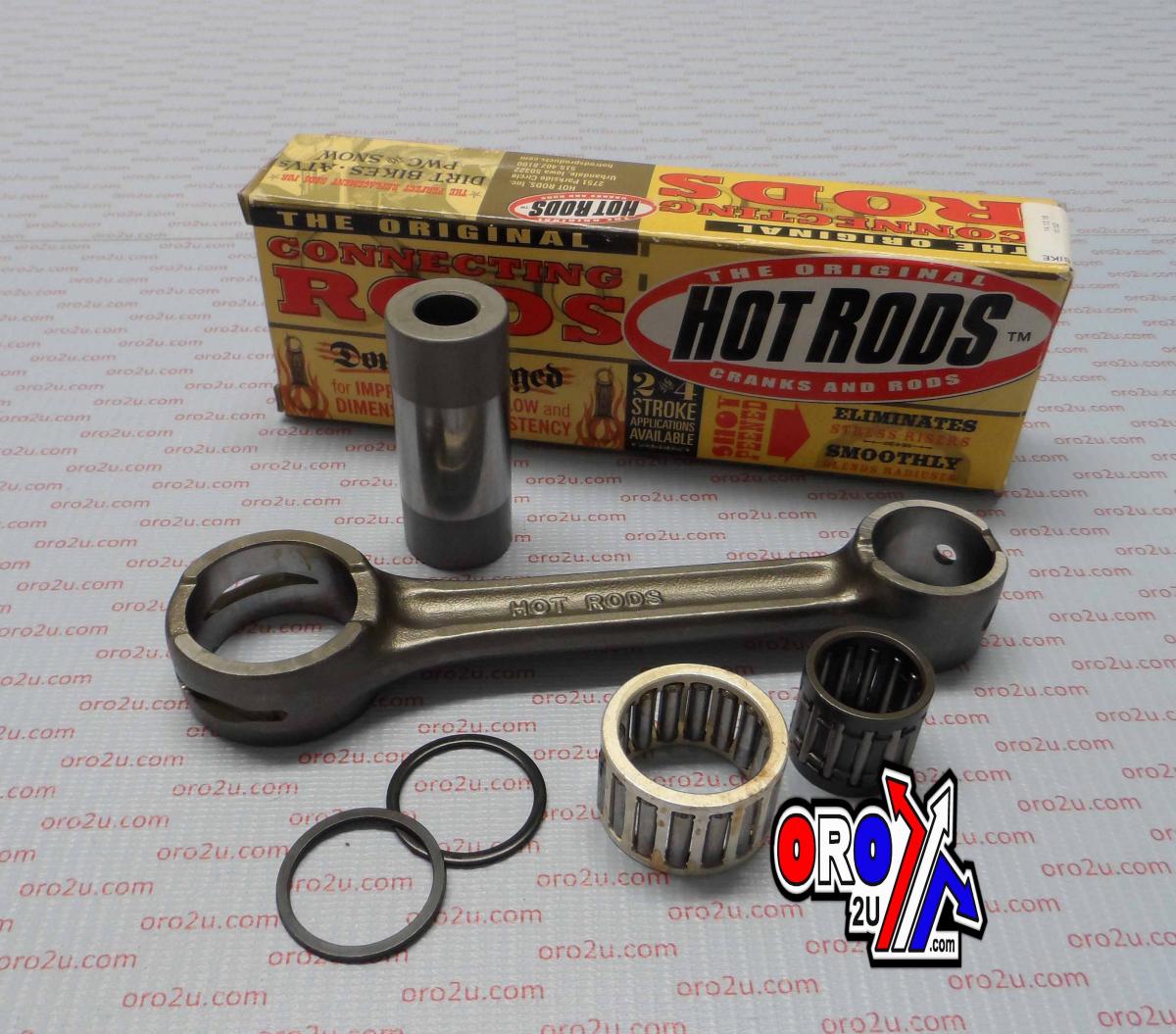

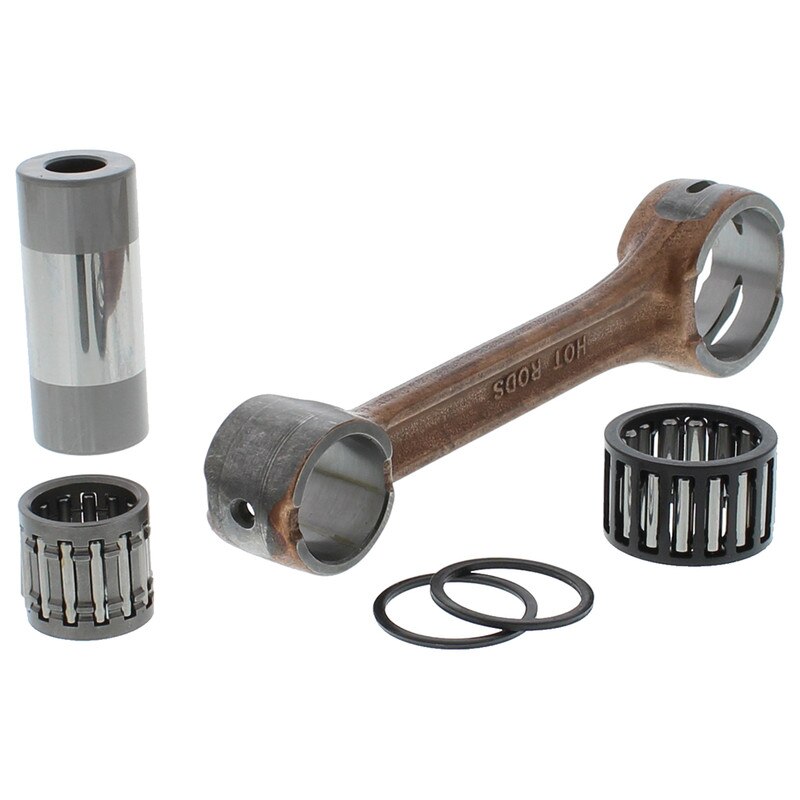

• Complete kit contains: connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Specifications:

• Centre to Centre: 128.00 mm
• Big End Bore Diameter: 32.00 mm
• Pin Diameter: 24.00 mm
• Pin Length: 57.70 mm
• Small End Bore Diameter: 23.00 mm

This connecting rod kit is a high-quality replacement part designed to meet or exceed original equipment specifications.
