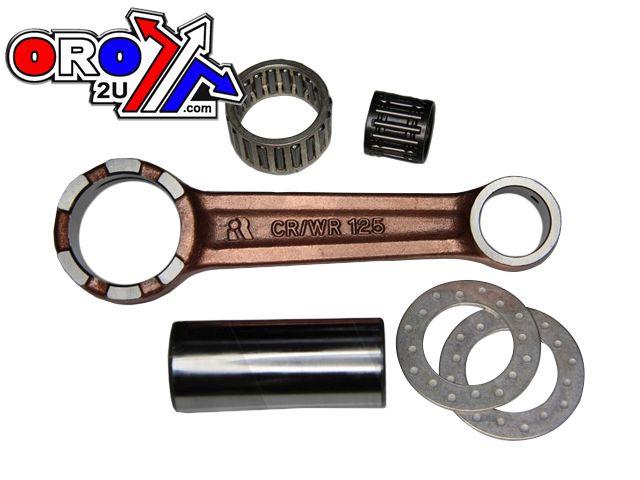

CONNECTING ROD HUSQVARNA 125, CR125 WR125 1997-2010

Heavy-Duty Connecting Rod Rebuild Kit for Husqvarna Motorcycles

This comprehensive connecting rod rebuild kit is engineered for Husqvarna CR125 and WR125 models. It provides a robust OE replacement designed to enhance performance and longevity.

Key Features:

• Superior Strength: Constructed from certified Chrome alloy steel for exceptional durability.
• Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for increased resistance to wear.
• High-RPM Longevity: Utilizes advanced caged needle roller bearing designs to withstand high rotational speeds.
• Premium Thrust Washers: Thrust washers are made from bronze phosphor and finished with a silver coating for optimal performance.
• Complete Kit: Sold as a complete assembly including the connecting rod, crankpin, big end bearing, small end bearing, and thrust washers where applicable.
• OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
• Material: SNCM220

Kit Specifications:

• Rod Length: 105mm
• Big End Dimensions: 30mm x 16mm
• Small End Dimensions: 19mm x 16mm
• Washer Size: 24.2mm x 39mm x 1mm
• Big End Bearing Dimensions: 24mm x 30mm x 15.7mm
• Small End Bearing Dimensions: 15mm x 19mm x 17.2mm
• Pin Dimensions: 24mm x 55.3mm
• Measurement A (Rod Length): 105mm
• Measurement B (Big End Width): 15mm
• Measurement C (Big End Diameter): 24mm
• Measurement D (Small End Width): 16mm
• Measurement E (Small End Diameter): 16mm
• Measurement F (Pin Length): 55.3mm
