CONNECTING ROD EXC 530R KTM, HOTROD 8692, 78630015144
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
High-quality connecting rod kit manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc. Features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion. Double-forged construction improves grain flow and maintains dimensional consistency. Shot-peened and double-honed rods provide superior strength under heavy loads. Double-drilled small ends for enhanced lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings for improved lubricity. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Big End Bearing: KU 35x42x19.8mm. Big End Bore: 42.00mm. Big End Width: 19.90mm. Center to Center: 120.00mm. Pin Diameter: 35.00mm. Pin Length: 62.80mm. Small End Bearing: Bushing. Small End Bore: 19.00mm. Cross-reference OEM part numbers: 78630015144, WOSSNER P4047, HOTROD 8692. Part Number: 56-868.HR. Manufacturer: Hot Rods.
- SKU
- 56-868.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
Fitments (13)
| Make | Model | Year |
|---|---|---|
| KTM | 530 EXC | 2008 |
| KTM | 530 EXC | 2009 |
| KTM | 530 EXC | 2010 |
| KTM | 530 EXC | 2011 |
| KTM | 530 EXC R | 2008 |
| KTM | 530 EXC R | 2009 |
| KTM | 530 EXC R | 2010 |
| KTM | 530 EXC R | 2011 |
| KTM | 530 EXC-R | 2008 |
| KTM | 530 EXC-R | 2009 |
| KTM | 530 EXC-R | 2010 |
| KTM | 530 EXC-R | 2011 |
| KTM | 530 XC-W | 2011 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252040
FULL DESCRIPTION
Hot Rods Connecting Rod Kit
Engineered for superior strength and longevity, this high-quality connecting rod kit is designed to meet or exceed OEM standards. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, it provides exceptional durability for demanding performance applications.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for robust performance.
- Advanced design includes strategically placed side scalloping and vent slots to minimize high-rpm bearing race distortion.
- Double-forged construction ensures improved grain flow and consistent dimensions.
- Shot-peened and double-honed rods offer enhanced strength under heavy loads.
- Double-drilled small ends promote optimal lubrication and cooling of the wrist pin bearing.
- Features silver-coated thrust washers and crank pin bearings for improved lubricity.

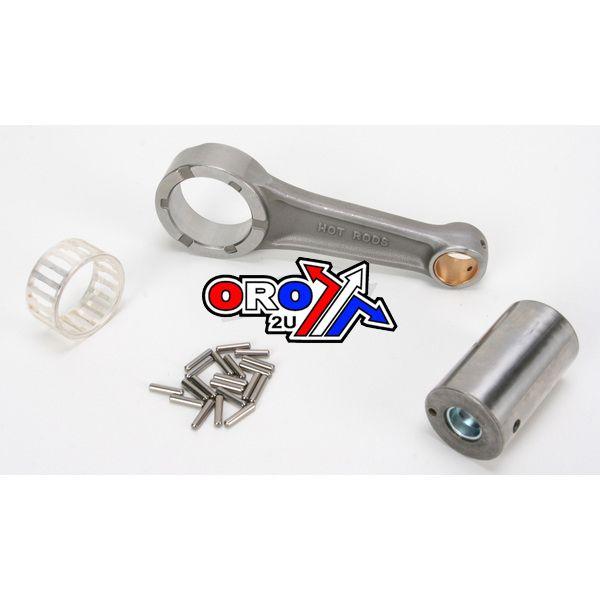

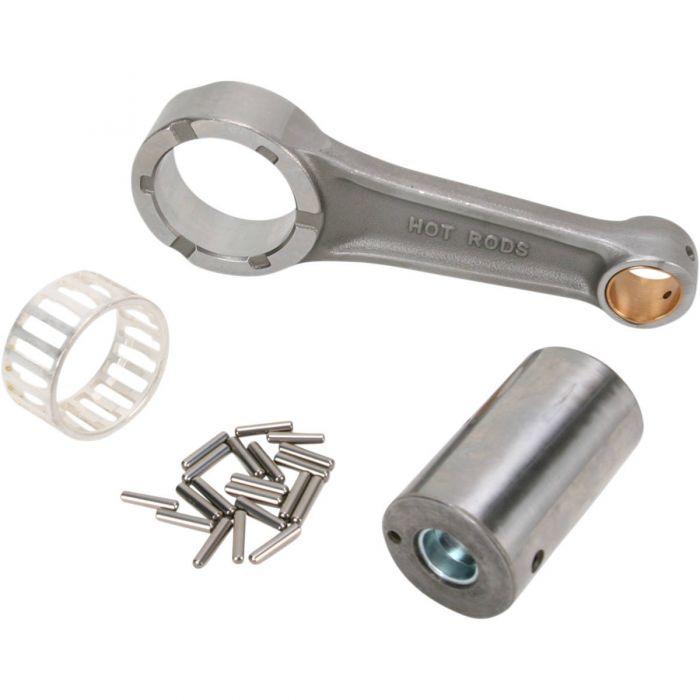

- This comprehensive kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Big End Bearing Dimensions: 35x42x19.8 mm
- Big End Bore: 42.00 mm
- Big End Width: 19.90 mm
- Center to Center Length: 120.00 mm
- Crank Pin Diameter: 35.00 mm
- Crank Pin Length: 62.80 mm
- Small End Bearing Type: Bushing
- Small End Bore: 19.00 mm
