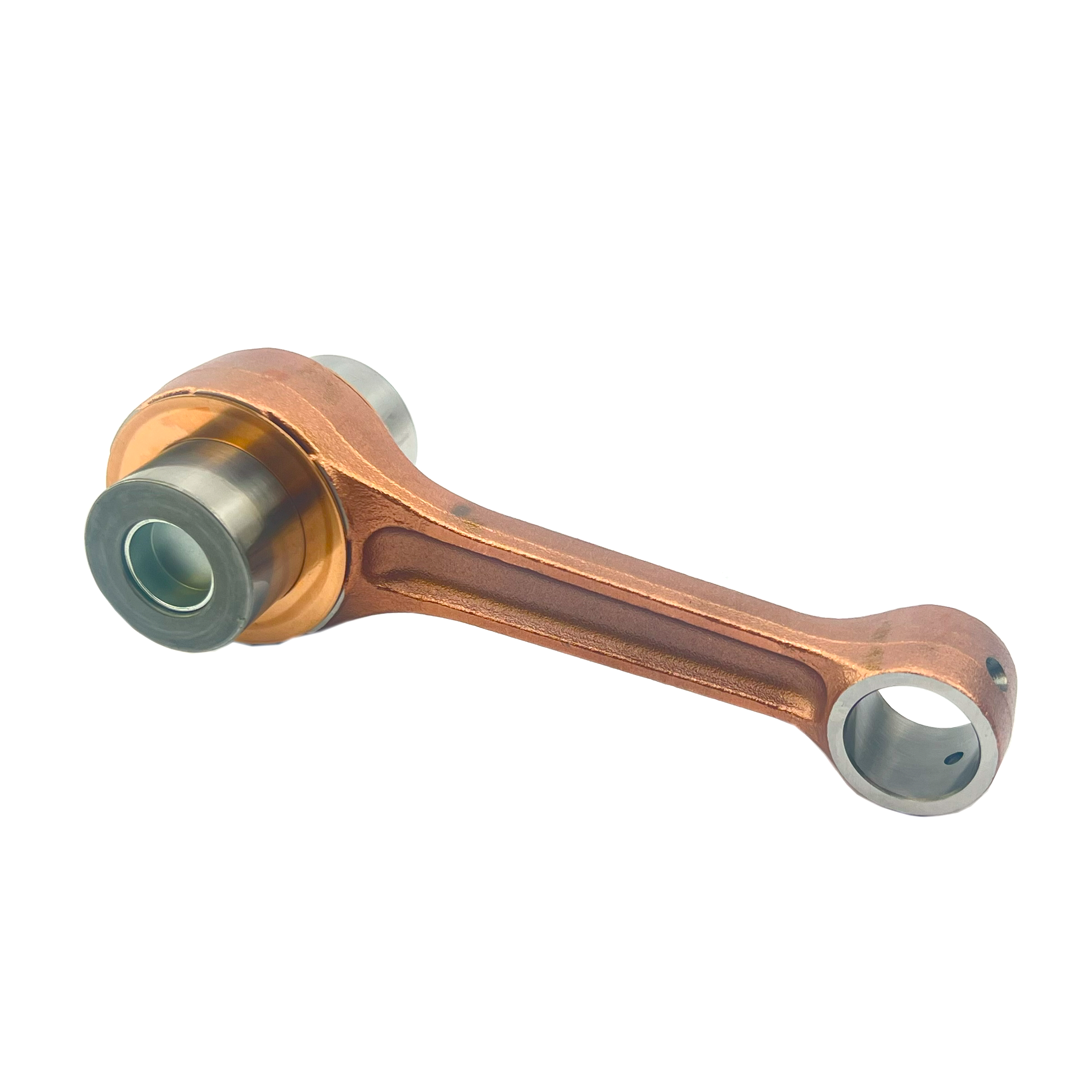

CONNECTING ROD ARCTIC CAT, BRONCO AT-09411 ATV / UTV
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
CONNECTING ROD REBUILD KIT BRONCO AT-09411. CENTER-TO-CENTER 139.8mm. Big Bore 47x25mm, Small Bore 23x25mm, Bottom Bearing 37x47x24.80mm, Washers 37.44x55x1.0mm. Heavy-duty OE replacement connecting rods. Certified Chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Part No. 56-0357.BR. Cross reference numbers: 0805-032, 0805-073, 0805-278, 0805-286, 0805-325, 0805-3.
- SKU
- 56-0357.BR
- Brand
- Namura Technologies
- Availability
- In Stock (1)
Fitments (147)
| Make | Model | Year |
|---|---|---|
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2009 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2010 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2011 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2012 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2013 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2014 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2015 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2016 |
| ARCTIC CAT | 550 H1 / TRV / GT / Alterra / XR / XT | 2017 |
| ARCTIC CAT | 550 Prowler / XT | 2009 |
| ARCTIC CAT | 550 Prowler / XT | 2010 |
| ARCTIC CAT | 550 Prowler / XT | 2011 |
| ARCTIC CAT | 550 Prowler / XT | 2012 |
| ARCTIC CAT | 550 Prowler / XT | 2013 |
| ARCTIC CAT | 550 Prowler / XT | 2014 |
| ARCTIC CAT | 550 Prowler / XT | 2015 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2005 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2006 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2007 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2008 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2009 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2010 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2011 |
| ARCTIC CAT | 650 H1 / TBX / TRV / 4x4 | 2012 |
| ARCTIC CAT | 650 Prowler | 2006 |
| ARCTIC CAT | 650 Prowler | 2007 |
| ARCTIC CAT | 650 Prowler | 2008 |
| ARCTIC CAT | 650 Prowler | 2009 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2008 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2009 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2010 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2011 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2012 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2013 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2014 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2015 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2016 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2017 |
| ARCTIC CAT | 700 H1 / TBX / HDX / Alterra | 2018 |
| ARCTIC CAT | 700 Prowler | 2008 |
| ARCTIC CAT | 700 Prowler | 2009 |
| ARCTIC CAT | 700 Prowler | 2010 |
| ARCTIC CAT | 700 Prowler | 2011 |
| ARCTIC CAT | 700 Prowler | 2012 |
| ARCTIC CAT | 700 Prowler | 2013 |
| ARCTIC CAT | 700 Prowler | 2014 |
| ARCTIC CAT | 700 Prowler | 2015 |
| ARCTIC CAT | 700 Prowler | 2016 |
| ARCTIC CAT | 700 Prowler | 2017 |
| ARCTIC CAT | ALL 650 | 2006 |
| ARCTIC CAT | ALL 650 | 2007 |
| ARCTIC CAT | ALL 650 | 2008 |
| ARCTIC CAT | ALL 650 | 2009 |
| ARCTIC CAT | ALL 700 | 2008 |
| ARCTIC CAT | ALL 700 | 2009 |
| ARCTIC CAT | ALL 700 | 2010 |
| ARCTIC CAT | ALL 700 | 2011 |
| ARCTIC CAT | ALL 700 | 2012 |
| ARCTIC CAT | ALL 700 | 2013 |
| ARCTIC CAT | ALL 700 | 2014 |
| ARCTIC CAT | ALL 700 | 2015 |
| ARCTIC CAT | ALL 700 | 2016 |
| ARCTIC CAT | ALL 700 | 2017 |
| ARCTIC CAT | ALTERRA TRV 550 | 2009 |
| ARCTIC CAT | ALTERRA TRV 550 | 2010 |
| ARCTIC CAT | ALTERRA TRV 550 | 2011 |
| ARCTIC CAT | ALTERRA TRV 550 | 2012 |
| ARCTIC CAT | ALTERRA TRV 550 | 2013 |
| ARCTIC CAT | ALTERRA TRV 550 | 2014 |
| ARCTIC CAT | ALTERRA TRV 550 | 2015 |
| ARCTIC CAT | ALTERRA TRV 550 | 2016 |
| ARCTIC CAT | ALTERRA TRV 550 | 2017 |
| ARCTIC CAT | GT 550 | 2009 |
| ARCTIC CAT | GT 550 | 2010 |
| ARCTIC CAT | GT 550 | 2011 |
| ARCTIC CAT | GT 550 | 2012 |
| ARCTIC CAT | GT 550 | 2013 |
| ARCTIC CAT | GT 550 | 2014 |
| ARCTIC CAT | GT 550 | 2015 |
| ARCTIC CAT | GT 550 | 2016 |
| ARCTIC CAT | GT 550 | 2017 |
| ARCTIC CAT | H1 650 | 2005 |
| ARCTIC CAT | H1 650 | 2006 |
| ARCTIC CAT | H1 650 | 2007 |
| ARCTIC CAT | H1 650 | 2008 |
| ARCTIC CAT | H1 650 | 2009 |
| ARCTIC CAT | H1 650 | 2010 |
| ARCTIC CAT | H1 650 | 2011 |
| ARCTIC CAT | H1 650 | 2012 |
| ARCTIC CAT | H1 650 | 2013 |
| ARCTIC CAT | H1 650 | 2014 |
| ARCTIC CAT | H1 700 | 2008 |
| ARCTIC CAT | H1 700 | 2009 |
| ARCTIC CAT | H1 700 | 2010 |
| ARCTIC CAT | H1 700 | 2011 |
| ARCTIC CAT | H1 700 | 2012 |
| ARCTIC CAT | H1 700 | 2013 |
| ARCTIC CAT | H1 700 | 2014 |
| ARCTIC CAT | H1 700 | 2015 |
| ARCTIC CAT | H1 700 | 2016 |
| ARCTIC CAT | H1 700 | 2017 |
| ARCTIC CAT | H1 700 | 2018 |
| ARCTIC CAT | TBX 650 | 2005 |
| ARCTIC CAT | TBX 650 | 2006 |
| ARCTIC CAT | TBX 650 | 2007 |
| ARCTIC CAT | TBX 650 | 2008 |
| ARCTIC CAT | TBX 650 | 2009 |
| ARCTIC CAT | TBX 650 | 2010 |
| ARCTIC CAT | TBX 650 | 2011 |
| ARCTIC CAT | TBX 650 | 2012 |
| ARCTIC CAT | TBX 700 | 2008 |
| ARCTIC CAT | TBX 700 | 2009 |
| ARCTIC CAT | TBX 700 | 2010 |
| ARCTIC CAT | TBX 700 | 2011 |
| ARCTIC CAT | TBX 700 | 2012 |
| ARCTIC CAT | TBX 700 | 2013 |
| ARCTIC CAT | TBX 700 | 2014 |
| ARCTIC CAT | TBX 700 | 2015 |
| ARCTIC CAT | TBX 700 | 2016 |
| ARCTIC CAT | TBX 700 | 2017 |
| ARCTIC CAT | TBX 700 | 2018 |
| ARCTIC CAT | TRV 550 | 2009 |
| ARCTIC CAT | TRV 550 | 2010 |
| ARCTIC CAT | TRV 550 | 2011 |
| ARCTIC CAT | TRV 550 | 2012 |
| ARCTIC CAT | TRV 550 | 2013 |
| ARCTIC CAT | TRV 550 | 2014 |
| ARCTIC CAT | TRV 550 | 2015 |
| ARCTIC CAT | TRV 550 | 2016 |
| ARCTIC CAT | TRV 550 | 2017 |
| ARCTIC CAT | TRV 650 | 2005 |
| ARCTIC CAT | TRV 650 | 2006 |
| ARCTIC CAT | TRV 650 | 2007 |
| ARCTIC CAT | TRV 650 | 2008 |
| ARCTIC CAT | TRV 650 | 2009 |
| ARCTIC CAT | TRV 650 | 2010 |
| ARCTIC CAT | TRV 650 | 2011 |
| ARCTIC CAT | TRV 650 | 2012 |
| ARCTIC CAT | XT 550 | 2009 |
| ARCTIC CAT | XT 550 | 2010 |
| ARCTIC CAT | XT 550 | 2011 |
| ARCTIC CAT | XT 550 | 2012 |
| ARCTIC CAT | XT 550 | 2013 |
| ARCTIC CAT | XT 550 | 2014 |
| ARCTIC CAT | XT 550 | 2015 |
| ARCTIC CAT | XT 550 | 2016 |
| ARCTIC CAT | XT 550 | 2017 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249774
FULL DESCRIPTION
Connecting Rod Rebuild Kit for Arctic Cat ATVs and UTVs
This heavy-duty OE replacement connecting rod assembly is designed for enhanced performance and longevity on compatible Arctic Cat ATVs and UTVs. It is engineered to meet rigorous standards for strength and reliability.
Key Features:
- Superior Strength: Certified chrome alloy steel construction provides exceptional durability.
- Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for increased wear resistance.
- High RPM Longevity: Features advanced caged needle roller bearing designs for sustained performance at high engine speeds.
- Bronze Phosphor Thrust Washers: Includes silver-coated thrust washers made from bronze phosphor for optimal friction management.
- Complete Assembly: Sold as a complete kit including the rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment (OE) and aftermarket crankshafts.
- Material: Constructed from SNCM220 material.
Specifications:
- Center-to-Center Length: 139.8mm
- Big Bore Dimensions: 47mm x 25mm
- Small Bore Dimensions: 23mm x 25mm
- Bottom Bearing Dimensions: 37mm x 47mm x 24.80mm
- Washer Dimensions: 37.44mm x 55mm x 1.0mm
