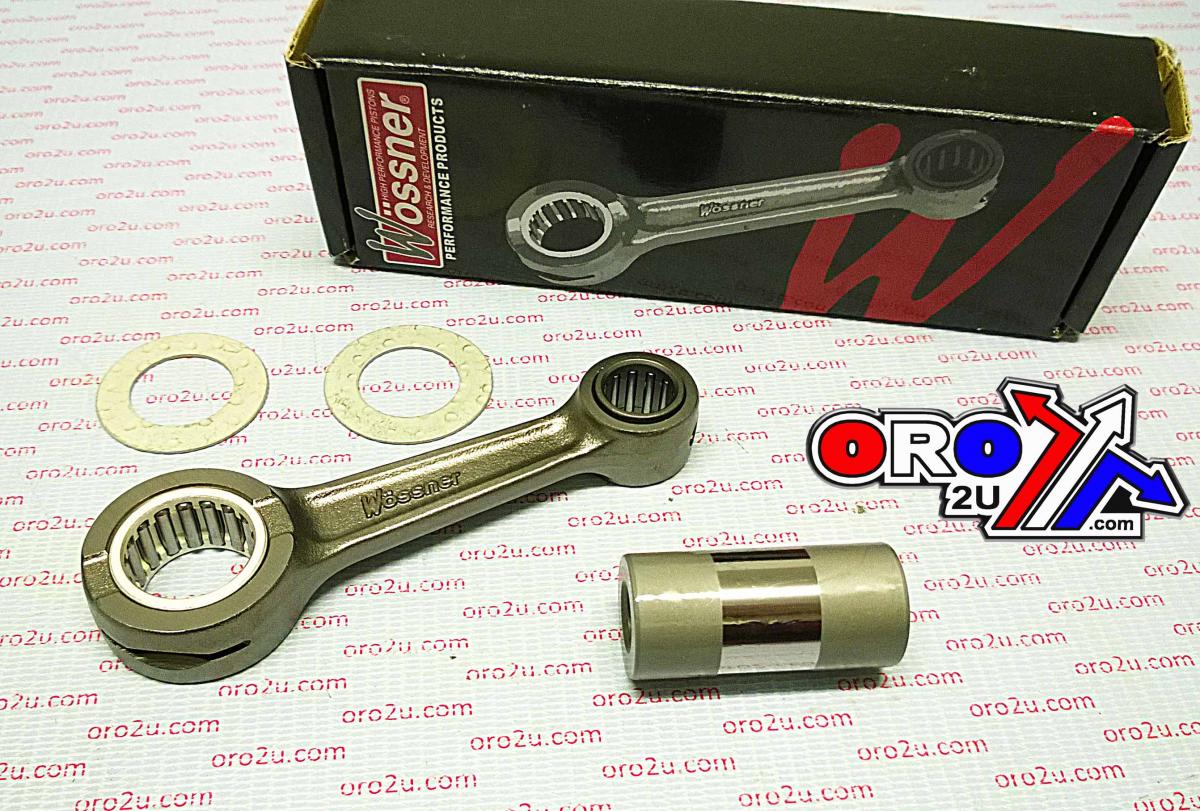

CONNECTING ROD 99-03 RM125, WOSSNER P2013 REPAIR KIT
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner P2013 connecting rod rebuild kit for Suzuki RM125 1999-2003. Made in Germany, Wossners forged high performance connecting rods provide the highest quality for maximum performance and reliability. The connecting rods are made of the best material which is CNC machined to remove all surface imperfections. The rods are then machined to final size and has then been shot-peened to achieve the ultimate in strength and durability. Center 2 Centre: 102 MM. Small End Bearing: 15x19x20 MM. Small End Bore Ø: 19 MM. Small End Width: 17.90 MM. Big End Bearing: 22x28x16 MM. Big End Bore Ø: 28 MM. Big End Width: 15.90 MM. Big End Pin Ø: 22 MM. Big End Pin Length: 52.90 MM. Washer Thickness: 22x42X1 MM. Part No. 56-117.WO. Cross reference numbers: RS-3203, 12161-43D00, HOT RODS 8159, WOSSNER P2013, WISECO WPR177, PSYCHIC MX-09057, PROX 03.3219.
- SKU
- 56-117.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (5)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 125 | 1999 |
| SUZUKI | RM 125 | 2000 |
| SUZUKI | RM 125 | 2001 |
| SUZUKI | RM 125 | 2002 |
| SUZUKI | RM 125 | 2003 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249993
FULL DESCRIPTION
Wossner P2013 Connecting Rod Repair Kit
Enhance the performance and reliability of your motorcycle with this high-performance connecting rod repair kit from Wossner. Engineered for demanding use, this kit provides the utmost quality for maximum output.
The connecting rods are meticulously crafted from superior materials and CNC machined to eliminate all surface imperfections. Following machining, the rods undergo a shot-peening process to achieve exceptional strength and durability. This product is proudly Made in Germany.
- Part Type: Connecting Rod Rebuild Kit
- Manufacturer: Wossner
- Model Number: P2013
- Material: Forged High Performance
- Manufacturing: CNC Machined and Shot-Peened
- Origin: Made in Germany
Specifications:
- Centre to Centre: 102 mm
- Small End Bearing: 15 x 19 x 20 mm
- Small End Bore Diameter: 19 mm
- Small End Width: 17.90 mm
- Big End Bearing: 22 x 28 x 16 mm
- Big End Bore Diameter: 28 mm
- Big End Width: 15.90 mm
- Big End Pin Diameter: 22 mm
- Big End Pin Length: 52.90 mm
- Washer Thickness: 22 x 42 x 1 mm
