CONNECTING ROD 99-03 RM125, HOT RODS 8159 REPAIR KIT
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Hot Rods connecting rod kit 8159 for Suzuki RM125 1999-2003. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength. Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion. Double-forged rods enhance grain flow and dimensional consistency. Shot-peened and double-honed for maximum durability under heavy loads. Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing. Thrust washers and crank pin bearings are silver-coated for added lubricity. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Center to Center Length: 102 mm. Small End Bearing Dimensions: 15 x 19 x 20 mm. Small End Bore Diameter: 19 mm. Small End Width: 17.90 mm. Big End Bearing Dimensions: 22 x 28 x 16 mm. Big End Bore Diameter: 28 mm. Big End Width: 15.90 mm. Big End Pin Diameter: 22 mm. Big End Pin Length: 52.90 mm. Washer Dimensions: 22 x 42 x 1 mm. Cross-Reference OEM Part Numbers: Suzuki 12161-43D00, Hot Rods 8159, Wossner P2013, Wiseco WPR177, Psychic MX-09057. Part Number: 56-117_HR.
- SKU
- 56-117_HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249994
FULL DESCRIPTION
Hot Rods Connecting Rod Repair Kit for RM125
This high-quality Hot Rods connecting rod repair kit is precision-engineered for Suzuki RM125 models. Designed for exceptional durability and performance, this kit is essential for maintaining your engine's optimal function, especially under demanding conditions.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel for superior strength.
- Case-hardened to 58-62 Rc for enhanced wear resistance.
- Features an advanced design with side scalloping and vent slots to minimize high-RPM bearing race distortion.
- Double-forged rods ensure improved grain flow and consistent dimensions.
- Shot-peened and double-honed for maximum durability under heavy stress.
- Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings for added lubricity.

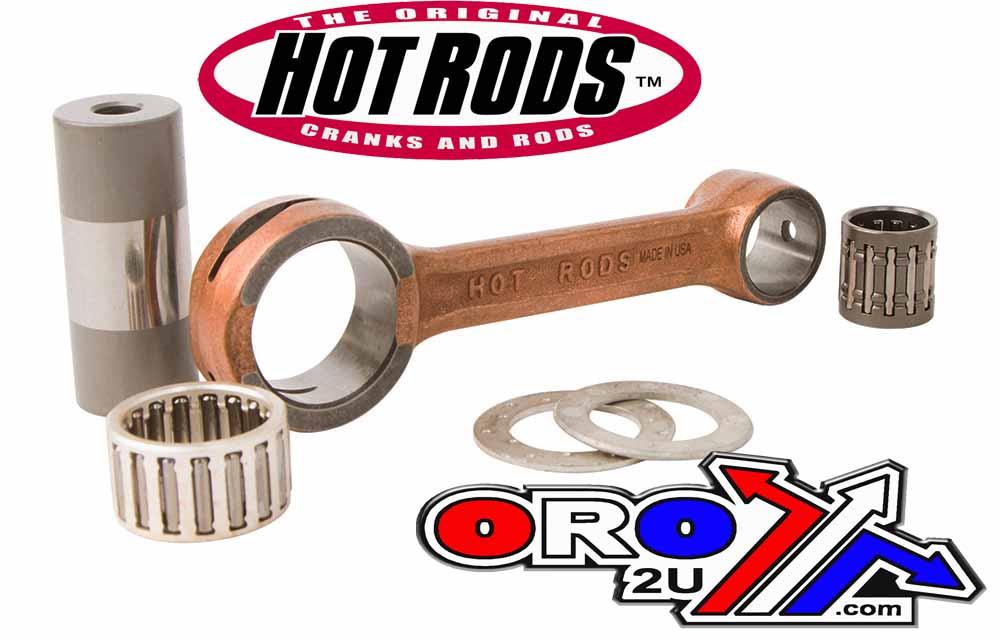

- This comprehensive kit contains the rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Center to Center Length: 102 mm
- Small End Bearing Dimensions: 15 x 19 x 20 mm
- Small End Bore Diameter: 19 mm
- Small End Width: 17.90 mm
- Big End Bearing Dimensions: 22 x 28 x 16 mm
- Big End Bore Diameter: 28 mm
- Big End Width: 15.90 mm
- Big End Pin Diameter: 22 mm
- Big End Pin Length: 52.90 mm
- Washer Dimensions: 22 x 42 x 1 mm
