CONNECTING ROD 97-98 RM125, HOT RODS 8142 SUZUKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
CONNECTING ROD 97-98 RM125, HOT RODS 8142 SUZUKI MX. High-quality Hot Rods connecting rod kit manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength. Features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion. Double-forged rods improve grain flow and maintain dimensional consistency. Shot-peened and double-honed for superior durability under heavy loads. Double-drilled small ends improve lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Cross-Reference OEM Part Numbers: Suzuki: 12161-43D00. Technical Specifications: Big End Bore (mm): 28.00, Center-to-Center (mm): 100.00, Pin Diameter (mm): 22.00, Pin Length (mm): 52.90, Small End Bore (mm): 19.00, Washer Thickness (mm): 1.60. Part Number: 56-882.HR. Manufacturer: Hot Rods.
- SKU
- 56-882.HR
- Brand
- Hot Rods
- Availability
- In Stock (3)
Fitments (2)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 125 | 1997 |
| SUZUKI | RM 125 | 1998 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252084
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Suzuki RM125 (1997-1998)
This high-quality Hot Rods connecting rod kit is engineered as a direct replacement for Suzuki RM125 motorcycles from 1997 and 1998. Constructed with precision and durability in mind, it is designed to withstand the demanding conditions of off-road riding.
Key Features:
- Premium Material: Manufactured from hot-rolled ASTM 4115 steel for exceptional strength and longevity.
- Case-Hardened: Treated to a hardness of 58-62 Rc, providing superior wear resistance and durability under high stress.
- Enhanced Bearing Performance: Features strategically located side scalloping and vent slots that minimize high-rpm bearing race distortion.
- Improved Grain Flow: Double-forged rods enhance grain flow for consistent dimensions and increased strength.
- Surface Treatment: Shot-peened and double-honed surfaces contribute to superior durability, even under heavy loads.
- Optimized Lubrication: Double-drilled small ends ensure improved lubrication and cooling for the wrist pin bearing, crucial when dealing with close piston crown proximity.
- Reduced Friction: Equipped with silver-coated thrust washers and crank pin bearings that enhance lubricity and reduce friction.

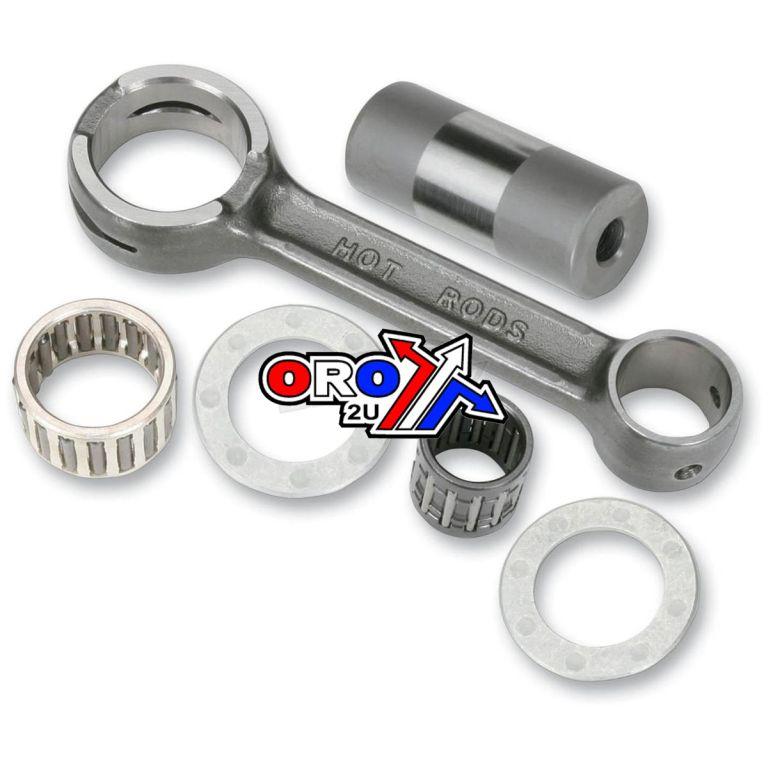

- Complete Kit: This comprehensive kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers, providing everything needed for replacement.
Technical Specifications:
- Big End Bore: 28.00 mm
- Center-to-Center Length: 100.00 mm
- Crank Pin Diameter: 22.00 mm
- Crank Pin Length: 52.90 mm
- Small End Bore: 19.00 mm
- Washer Thickness: 1.60 mm
