CONNECTING ROD 94-97 KX125, HOT RODS 8163 CR132
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

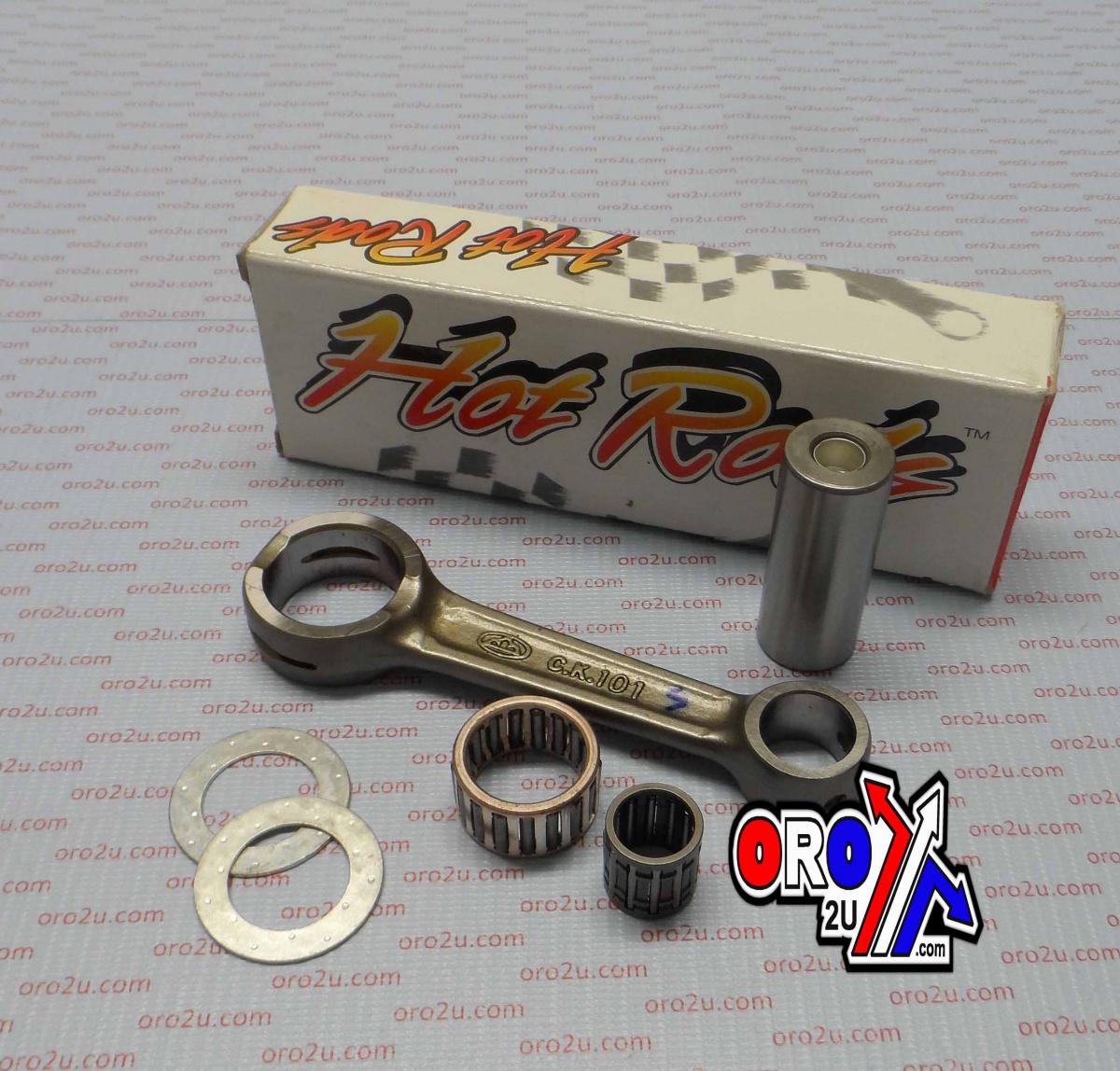

Hot Rods connecting rod kit designed as a replacement for Kawasaki KX125 models. Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc. Features strategically designed side scalloping and vent slots to reduce high RPM bearing race distortion. Double-forged rods improve grain flow and dimensional consistency. Shot-peened and double-honed for superior durability. Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing. Thrust washers and crank pin bearings are silver-coated for increased lubricity. Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Specifications: Big End Bore 29.00 mm, Center to Center 106.00 mm, Pin Diameter 22.00 mm, Pin Length 50.90 mm, Small End Bore 19.00 mm, Washer Thickness 1.00 mm. Part Number: 8163.
- SKU
- 56-886.HR
- Brand
- Hot Rods
- Availability
- In Stock (2)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 125 | 1994 |
| KAWASAKI | KX 125 | 1995 |
| KAWASAKI | KX 125 | 1996 |
| KAWASAKI | KX 125 | 1997 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252089
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Kawasaki KX125
Upgrade your motorcycle's performance and reliability with this high-performance Hot Rods connecting rod kit. Engineered as a direct replacement for specific Kawasaki KX125 models, this kit is built to withstand demanding riding conditions and deliver lasting durability.
Key Features:
- Exceptional Strength: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior resilience.
- Reduced Bearing Distortion: Strategically designed side scalloping and vent slots help minimize high RPM bearing race distortion.
- Enhanced Grain Flow: Double-forged rods improve grain flow and ensure consistent dimensions for optimal performance.
- Superior Durability: Shot-peened and double-honed to endure heavy loads and provide extended service life.
- Optimized Lubrication: Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing.
- Increased Lubricity: Silver-coated thrust washers and crank pin bearings offer improved lubrication.
- Complete Kit: Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers for a comprehensive replacement.
Specifications:
- Big End Bore: 29.00 mm
- Center to Center Length: 106.00 mm
- Pin Diameter: 22.00 mm
- Pin Length: 50.90 mm
- Small End Bore: 19.00 mm
- Washer Thickness: 1.00 mm
