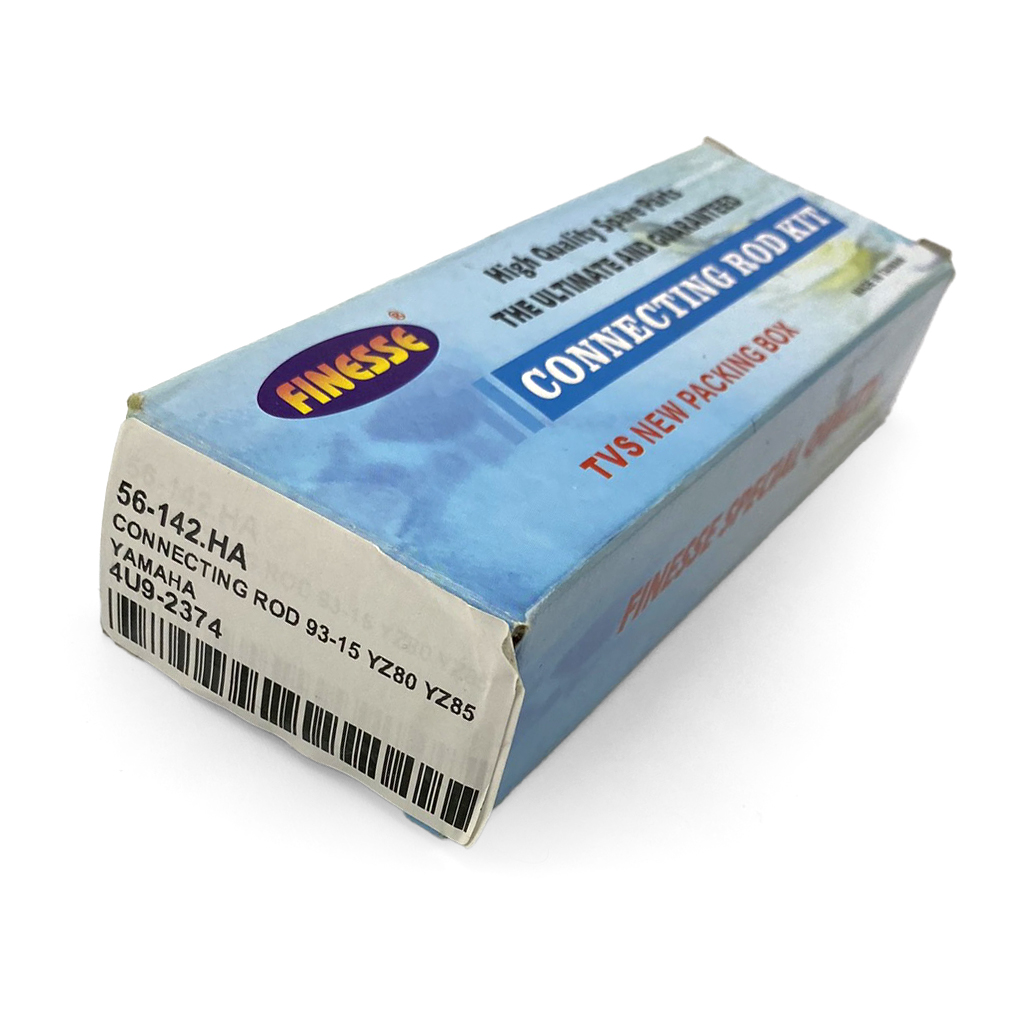

CONNECTING ROD 93-15 YZ80 YZ85, YAMAHA

Oro2u Connecting Rod Rebuild Kit

Restore the heart of your motorcycle's engine with this high-quality connecting rod rebuild kit. Designed as an OE replacement, this kit ensures your engine performs at its best.

Key Features:

• Superior Strength: Constructed from certified Chrome Alloy Steel for exceptional durability.
• Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for longevity.
• High RPM Longevity: Utilizes the latest caged needle roller bearing designs for reliable performance at high engine speeds.
• Bronze Phosphor Thrust Washers: Silver coated thrust washers made from bronze phosphor for smooth operation.

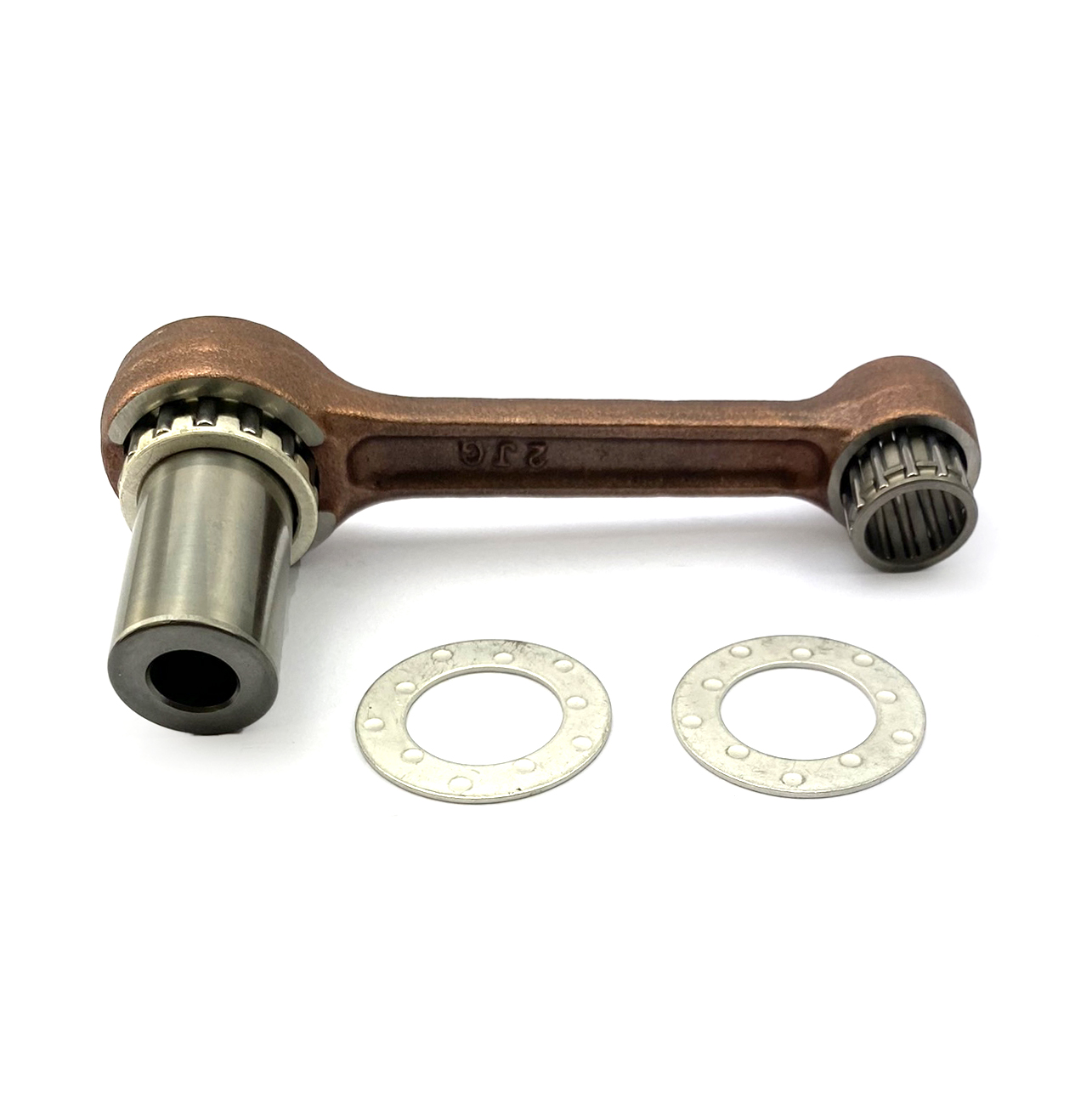

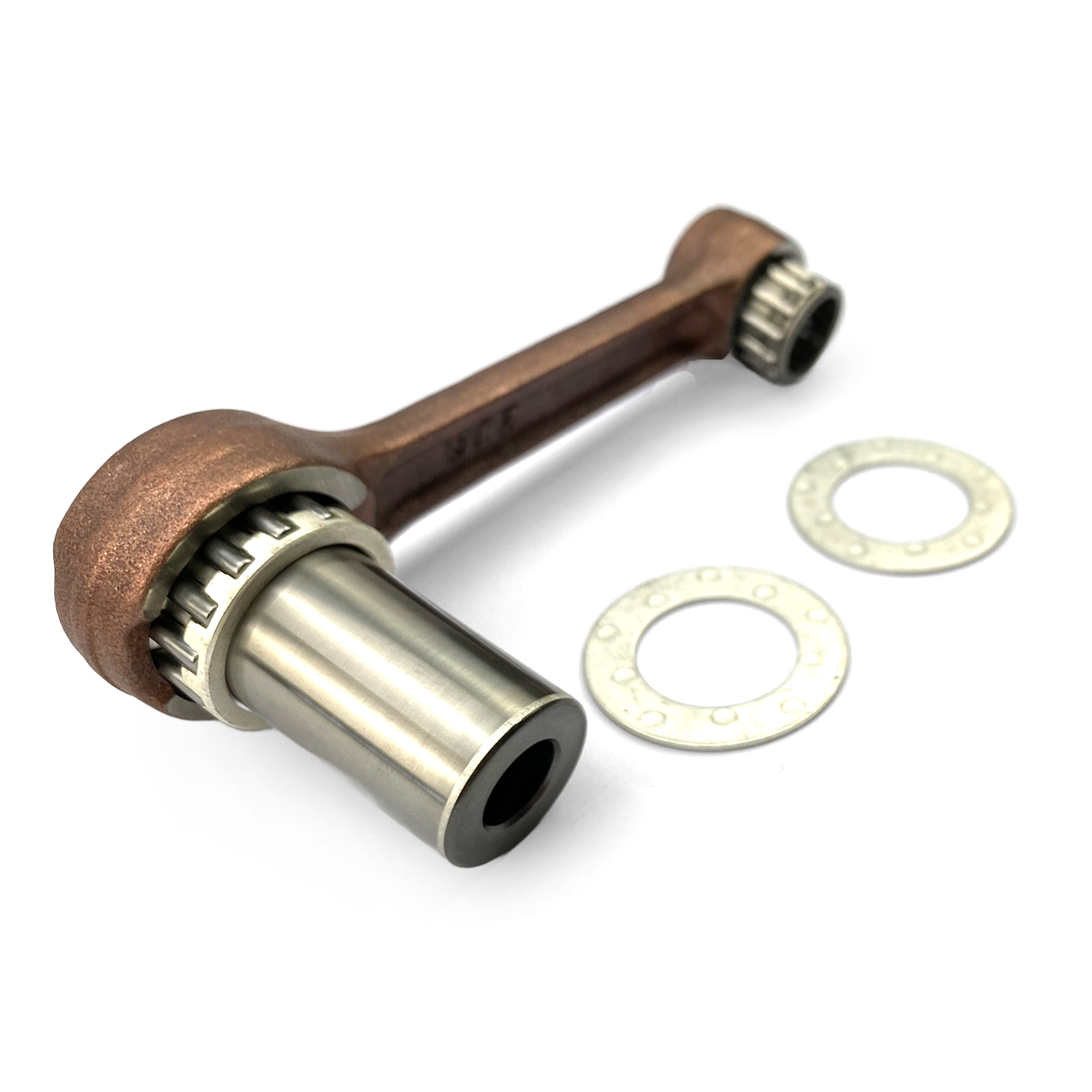

• Complete Assembly: The rod assembly is sold complete with the rod, crankpin, crankpin bearing, top end bearing, and thrust washers where applicable.
• OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
• Durable Material: Manufactured with SNCM220 material for robust performance.
• Guaranteed Satisfaction: Oro2u products are high-quality replacement parts backed by a guarantee of your satisfaction.

Specifications:

• Big End Bearing (mm): 20 x 26 x 13.8
• Big End Bore (mm): 26.00
• Big End Width (mm): 13.98
• Center To Center (mm): 96.00
• Pin Diameter (mm): 20.00
• Pin Length (mm): 43.50
• Small End Bearing (mm): 14 x 18 x 16.3
• Small End Bore (mm): 18.00
• Small End Width (mm): 13.98
• Washer Thickness (mm): 1.00
