CONNECTING ROD 87-06 YFS200, HOTROD 8144 YAMAHA ATV

Hot Rods Connecting Rod Kit for Yamaha Blaster 200

Upgrade your Yamaha Blaster 200 with this high-performance connecting rod kit from Hot Rods. Engineered for exceptional durability and reliable performance, this kit is constructed from premium materials for demanding applications. It is designed to enhance the strength and longevity of your engine.

Key Features:

• Premium Material Construction: Manufactured using hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and wear resistance.
• Advanced Bearing Protection: Features side scalloping and vent slots that effectively reduce high RPM bearing race distortion.
• Enhanced Strength and Consistency: Double-forged rods improve grain flow and ensure dimensional consistency, leading to increased reliability.
• Durability Under Load: The rod undergoes shot-peening and double-honing processes to significantly enhance its strength when subjected to heavy loads.
• Optimized Lubrication System: Double-drilled small ends provide improved lubrication and cooling for the wrist pin bearing, which is especially beneficial for pistons with crowns positioned close to the bearing.
• Coated Components: Includes silver-coated thrust washers and crank pin bearings to provide increased lubricity.

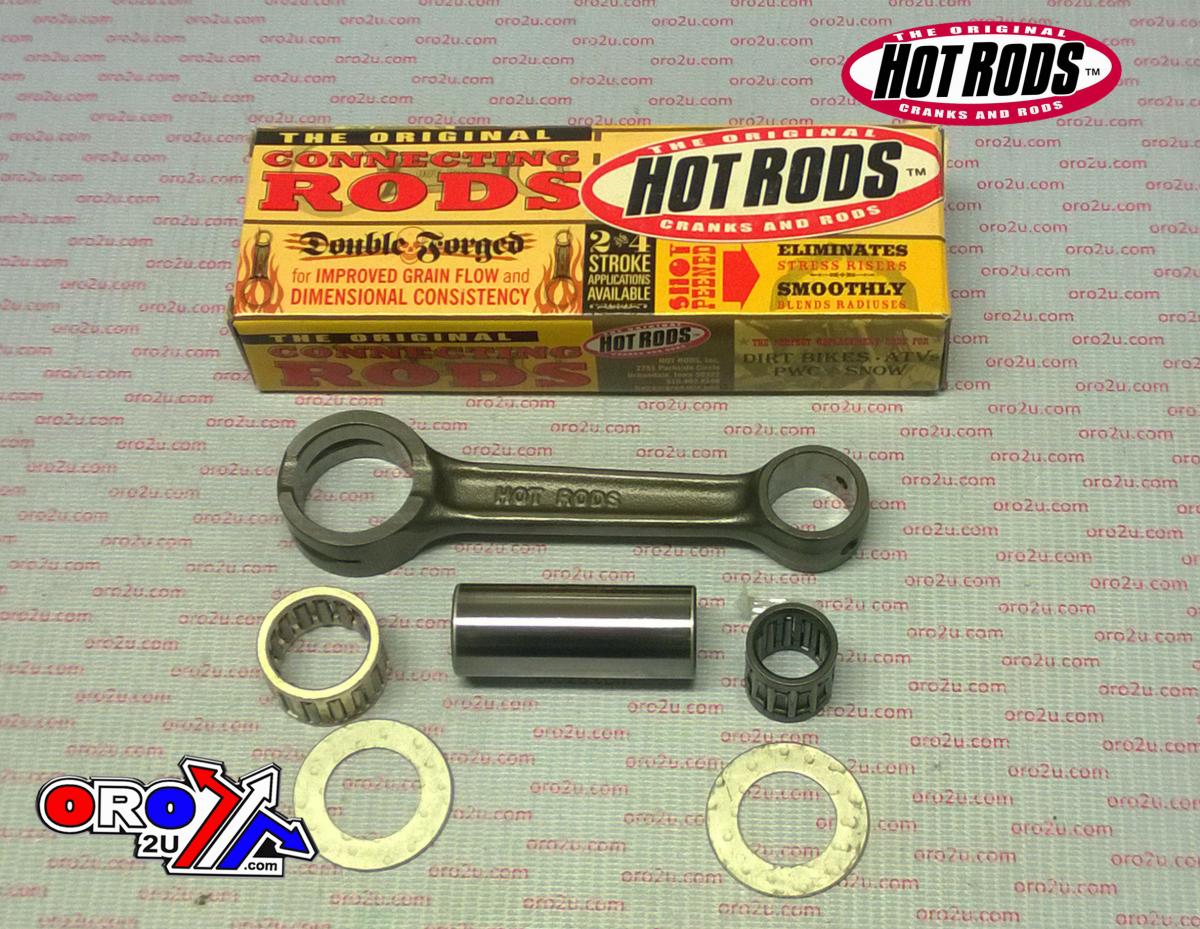

• Complete Assembly: This comprehensive kit contains all necessary components for installation, including the connecting rod, crank pin, crank pin bearing, top-end bearing, needle cage bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

• Dimensions: 22x29x17
• Big End Bore: 29.00 mm
• Big End Width: 17.00 mm
• Center to Center Length: 110.00 mm

Part Number: 8144
