CONNECTING ROD 83-04 KX500, HOTROD 8148 KAWASAKI

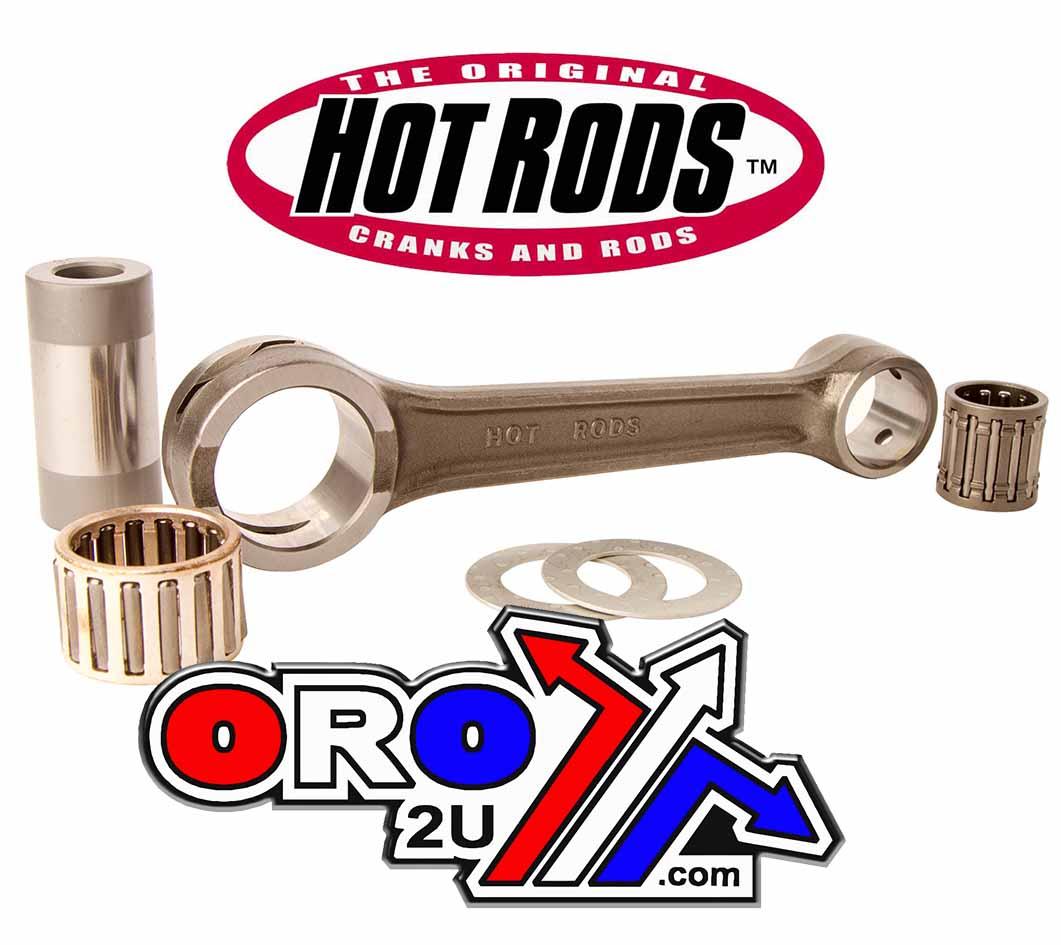

Hot Rods Connecting Rod Kit for Kawasaki KX500

Upgrade your Kawasaki KX500 with this premium Hot Rods connecting rod kit, engineered for exceptional durability and precision performance. Designed for models from 1983 to 2004, this kit is built to withstand the rigors of high-performance riding and demanding conditions.

Key Features:

• Superior Material Strength: Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum toughness and wear resistance.
• Advanced Design for High RPM: Features strategically placed side scalloping and vent slots to minimize bearing race distortion and maintain performance at high engine speeds.
• Enhanced Durability: Double-forged rods ensure improved grain flow for consistent dimensions and increased structural integrity.
• Optimized Surface Finish: Shot-peened and double-honed surfaces contribute to superior strength and extended longevity.
• Improved Lubrication: Small ends are double drilled for enhanced lubrication and cooling of the wrist pin bearing, reducing heat buildup.
• Reduced Friction: Includes silver-coated thrust washers and crank pin bearings to minimize friction and enhance lubricity.
• Complete Assembly: This comprehensive kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers for a complete installation.

Technical Specifications:

• Center to Center (A): 145 mm
• Small End Bore (B): 19 mm
• Big End Bore (C): 26 mm
• Big End Width (D): 22 mm
• Small End Width (E): 22 mm
• Crank Pin Length (F): 54.5 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1184, 13044-4077, 13044-5048, 13044-5072, 13044-5076, 13044-5077
• Hot Rods: 8148
