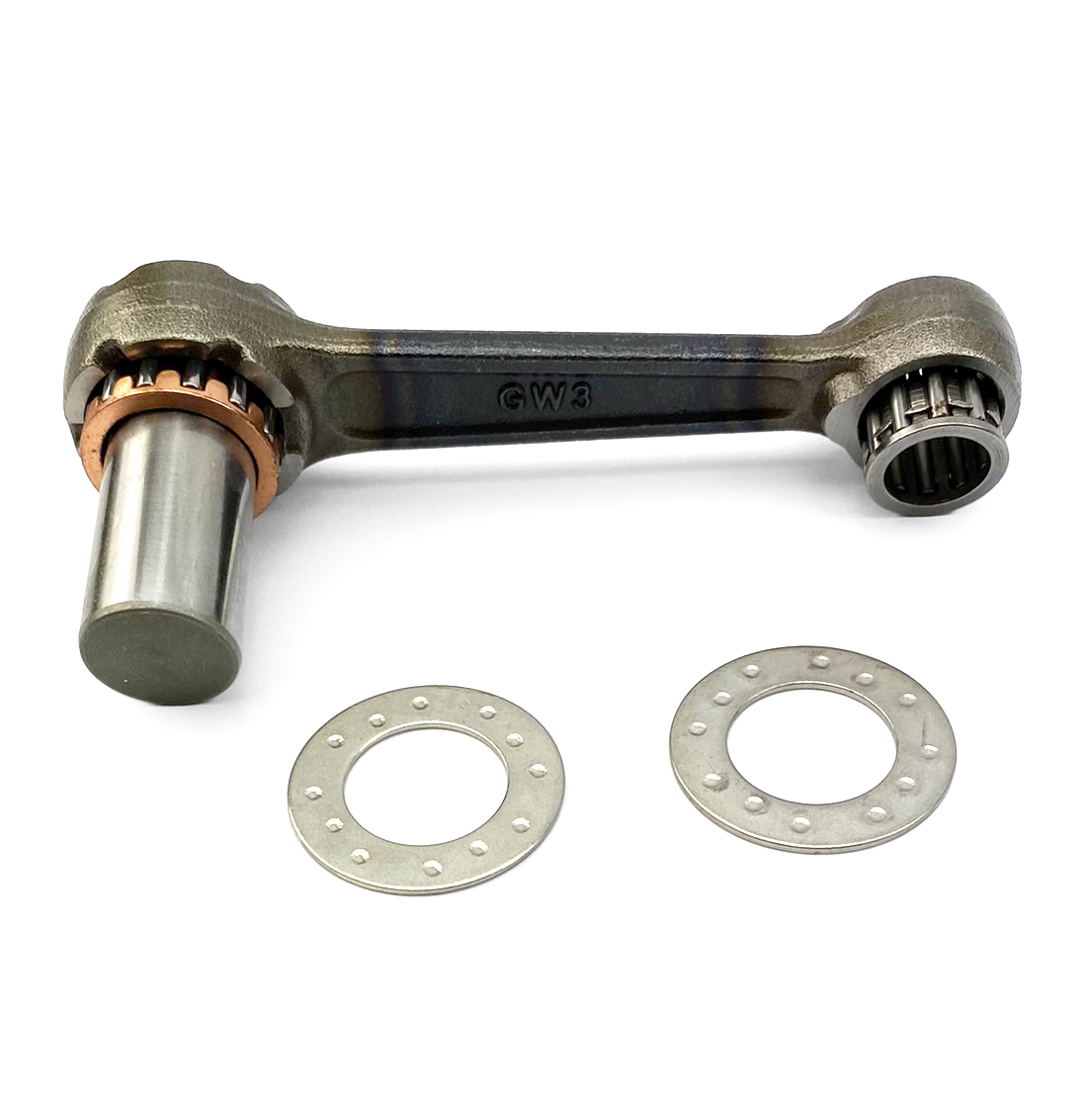

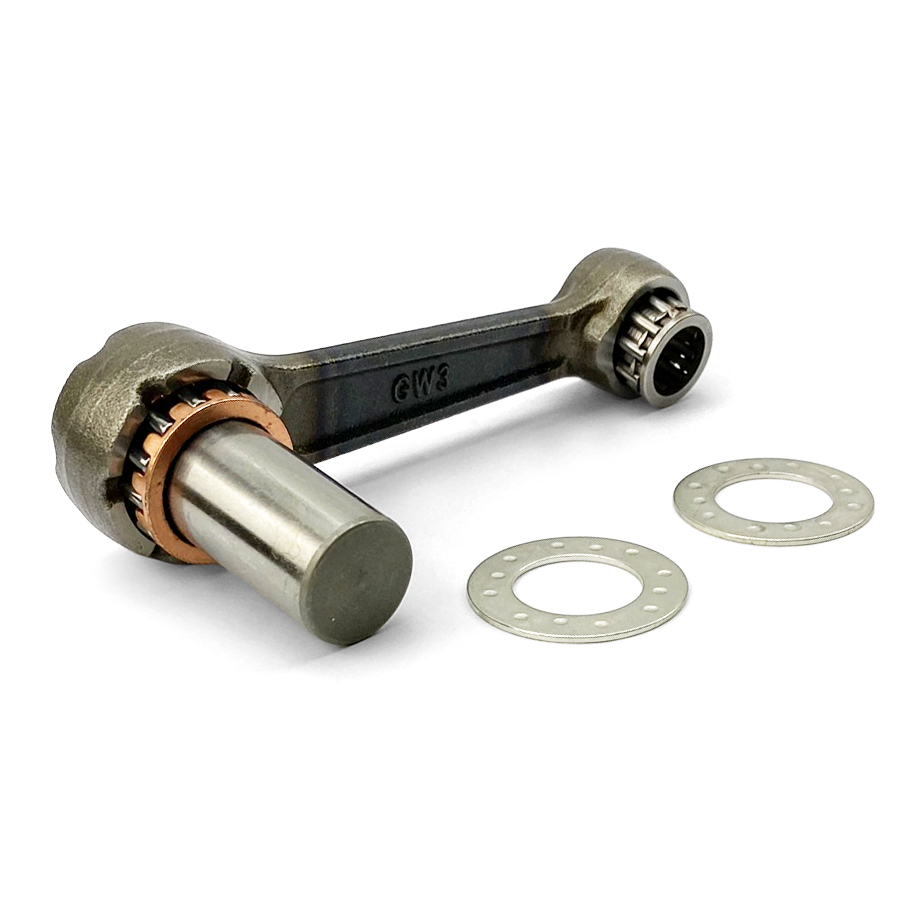

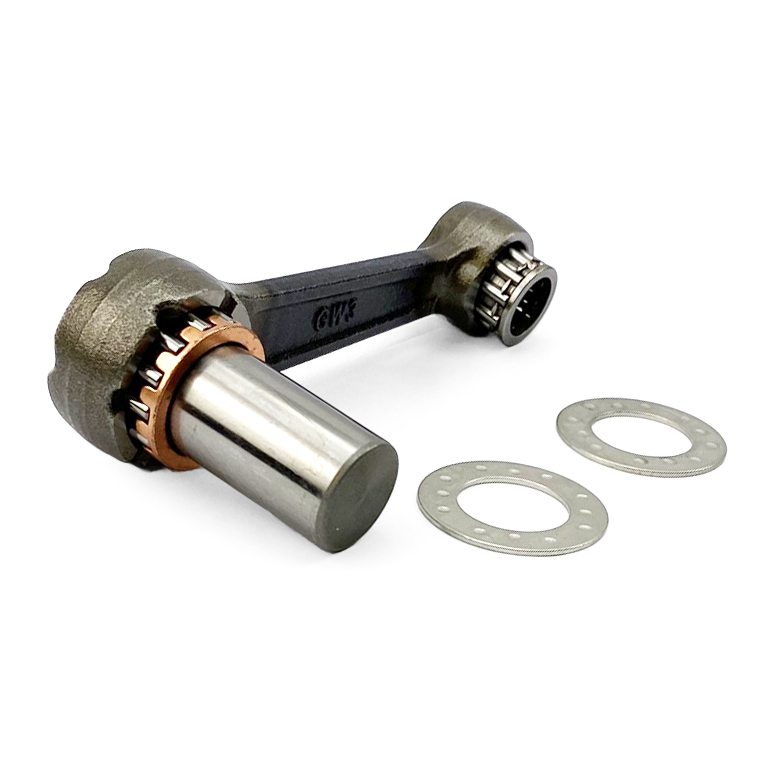

CONNECTING ROD 82-92 YAMAHA YZ 80 39K1165100
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
OE replacement connecting rod assembly engineered from certified chrome alloy steel (SNCM220) for superior strength and durability. Designed to withstand high RPM conditions, it includes all essential components for installation and is fully compatible with both aftermarket and OE crankshafts. Crankpins are made from hot-rolled ASTM steel and case hardened. Includes latest caged needle roller bearing designs for high RPM durability. Features bronze phosphor, silver-coated thrust washers. Complete assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed). Centre to Centre: 91.00mm. Small End Bearing: 12x17x14.00mm. Small End Bore: 17mm. Small End Width: 13.50mm. Big End Bearing: 18x24x13.80mm. Big End Bore: 24mm. Big End Width: 13.5mm. Big End Pin: 18mm. Big End Pin Length: 40.00mm. Washer Thickness: None. Cross-Reference OEM Part Numbers: 6062104, ROD 39K1165100, BEARING 93310418M6, PIN 4V01168100, BEARING 93310312M5.
- SKU
- 56-131.AAA
- Brand
- No Brand
- Availability
- In Stock (4)
Fitments (11)
| Make | Model | Year |
|---|---|---|
| YAMAHA | YZ 80 | 1982 |
| YAMAHA | YZ 80 | 1983 |
| YAMAHA | YZ 80 | 1984 |
| YAMAHA | YZ 80 | 1985 |
| YAMAHA | YZ 80 | 1986 |
| YAMAHA | YZ 80 | 1987 |
| YAMAHA | YZ 80 | 1988 |
| YAMAHA | YZ 80 | 1989 |
| YAMAHA | YZ 80 | 1990 |
| YAMAHA | YZ 80 | 1991 |
| YAMAHA | YZ 80 | 1992 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 303671
FULL DESCRIPTION
Yamaha YZ 80 Connecting Rod Assembly
This is a high-quality, OE replacement connecting rod assembly designed for Yamaha YZ 80 motorcycles. Engineered for exceptional strength and durability, this assembly is built to withstand demanding high RPM conditions and ensure reliable engine performance.
Key Features:
- Superior Material: Constructed from certified SNCM220 chrome alloy steel for outstanding strength and longevity.
- Durable Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and undergo case hardening for enhanced wear resistance.
- High RPM Performance: Features the latest caged needle roller bearing designs, optimized for durability in high rotational speed environments.
- Premium Thrust Washers: Includes bronze phosphor, silver-coated thrust washers for smooth operation.
- Complete Kit: This assembly provides a full replacement, including the connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers (where applicable).
- OE and Aftermarket Compatibility: Fully compatible with both original equipment (OE) and aftermarket crankshafts.
Specifications:
- Centre to Centre Length: 91.00mm
- Small End Bearing Dimensions: 12mm x 17mm x 14.00mm
- Small End Bore Diameter: 17mm
- Small End Width: 13.50mm
- Big End Bearing Dimensions: 18mm x 24mm x 13.80mm
- Big End Bore Diameter: 24mm
- Big End Width: 13.5mm
- Big End Pin Diameter: 18mm
- Big End Pin Length: 40.00mm
Cross-Reference OEM Part Numbers:
- 6062104
- ROD 39K1165100
- BEARING 93310418M6
- PIN 4V01168100
- BEARING 93310312M5
