CONNECTING ROD +5 AT-09134, 86-07 BANSHEE LONG ROD +5
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply
CONNECTING ROD +5 AT-09134, 86-07 BANSHEE LONG ROD +5. Heavy-duty OE replacement connecting rods. Certified Chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. SIZE: Centre 2 Centre 115mm, Small End Bearing 16x21x22.3mm, Small End Bore Ø 21mm, Small End Width 17.90mm, Big End Bearing 22x29x17mm, Big End Bore Ø 22mm, Big End Width 17mm, Big End Pin Ø 29mm, Big End Pin Length 52.70mm, Washer Thickness 22.20x36.90x1.00mm. Part No. 56-267.DR. +5mm long rod for use on 4011 & 4111 crankshafts. YAMAHA: 29L-11651-00-00, HOTRODS 8158. Manufacturer: Dirt Racing.
- SKU
- 56-267.DR
- Brand
- Dirt Racing
- Availability
- In Stock (2)
Fitments (62)
| Make | Model | Year |
|---|---|---|
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1987 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1988 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1989 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1990 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1991 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1992 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1993 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1994 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1995 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1996 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1997 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1998 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 1999 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2000 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2001 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2002 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2003 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2004 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2005 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2006 |
| YAMAHA | YFZ 350 Banshee (Long Rod +5mm) | 2007 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1987 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1988 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1989 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1990 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1991 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1992 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1993 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1994 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1995 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1996 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1997 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1998 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 1999 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2000 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2001 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2002 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2003 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2004 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2005 |
| YAMAHA | YFZ 350 Banshee (Long Rod) | 2006 |
| YAMAHA | YFZ BANSHEE 350 | 1987 |
| YAMAHA | YFZ BANSHEE 350 | 1988 |
| YAMAHA | YFZ BANSHEE 350 | 1989 |
| YAMAHA | YFZ BANSHEE 350 | 1990 |
| YAMAHA | YFZ BANSHEE 350 | 1991 |
| YAMAHA | YFZ BANSHEE 350 | 1992 |
| YAMAHA | YFZ BANSHEE 350 | 1993 |
| YAMAHA | YFZ BANSHEE 350 | 1994 |
| YAMAHA | YFZ BANSHEE 350 | 1995 |
| YAMAHA | YFZ BANSHEE 350 | 1996 |
| YAMAHA | YFZ BANSHEE 350 | 1997 |
| YAMAHA | YFZ BANSHEE 350 | 1998 |
| YAMAHA | YFZ BANSHEE 350 | 1999 |
| YAMAHA | YFZ BANSHEE 350 | 2000 |
| YAMAHA | YFZ BANSHEE 350 | 2001 |
| YAMAHA | YFZ BANSHEE 350 | 2002 |
| YAMAHA | YFZ BANSHEE 350 | 2003 |
| YAMAHA | YFZ BANSHEE 350 | 2004 |
| YAMAHA | YFZ BANSHEE 350 | 2005 |
| YAMAHA | YFZ BANSHEE 350 | 2006 |
| YAMAHA | YFZ BANSHEE 350 | 2007 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250421
FULL DESCRIPTION
Dirt Racing Connecting Rod +5mm for Yamaha YFZ350 Banshee
Upgrade your Yamaha YFZ350 Banshee's performance with this heavy-duty OE replacement connecting rod kit from Dirt Racing. Designed as a long rod, this component offers enhanced power and durability for your off-road adventures.
Key Features:
- Superior Strength: Constructed from certified Chrome alloy steel for exceptional durability and resistance to stress.
- High-Quality Crankpins: Manufactured from hot-rolled ASTM steel and case hardened for maximum longevity and performance.
- Advanced Bearing Design: Features caged needle roller bearings, utilizing the latest designs for high RPM operation and extended lifespan.
- Durable Thrust Washers: Made from bronze phosphor and silver coated for reliable performance.

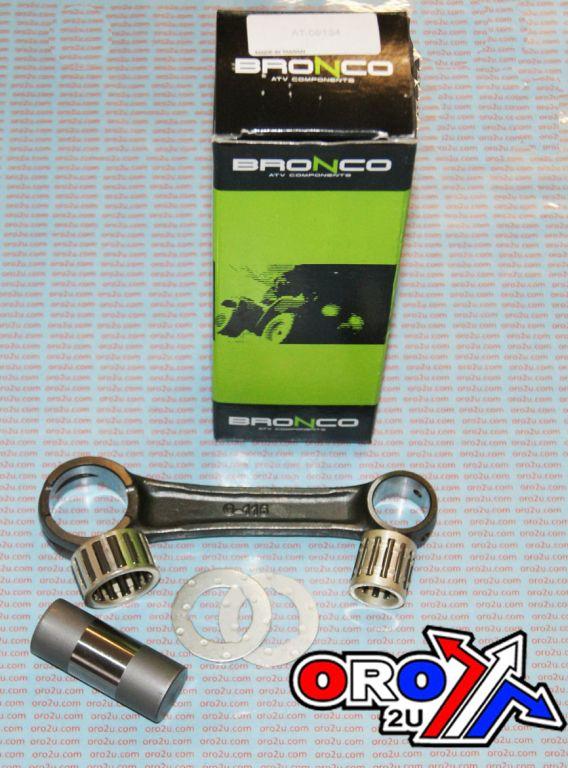

- Complete Kit: This assembly includes the connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
- Versatile Compatibility: Fully compatible with both aftermarket and original equipment manufacturer (OEM) crankshafts.
- Material: SNCM220
- Dimensions:
- Center to Center: 115mm
- Small End Bearing: 16x21x22.3mm
- Small End Bore Diameter: 21mm
- Small End Width: 17.90mm
- Big End Bearing: 22x29x17mm
- Big End Bore Diameter: 22mm
- Big End Width: 17mm
- Big End Pin Diameter: 29mm
- Big End Pin Length: 52.70mm
- Washer Thickness: 22.20x36.90x1.00mm
This +5mm long rod is specifically designed for use with 4011 & 4111 crankshafts.
