CONNECTING ROD 10-16 KX250F, HOTRODS 8690 KAWASAKI KXF
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Hot Rods Connecting Rod Kit for Kawasaki KX250F (2010-2016). Features heavy-duty construction with hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc. Includes advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion. Double-forged rods improve grain flow and dimensional consistency, while being shot-peened and double-honed for superior strength. Small ends are double drilled for enhanced lubrication and cooling of the wrist pin bearing. Thrust washers and crankpin bearings have a silver coating for added lubricity. Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Technical Specifications: Centre to Centre: 92.50 mm, Big End Bearing: KU 30x38x17.8 mm, Big End Bore: 38.00 mm, Big End Width: 17.98 mm, Pin Diameter: 30.00 mm. Cross-Reference OEM Part Numbers: KAWASAKI: 13032-0076. Part Number: 56-942.HR.
- SKU
- 56-942.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 250F | 2010 |
| KAWASAKI | KX 250F | 2011 |
| KAWASAKI | KX 250F | 2012 |
| KAWASAKI | KX 250F | 2013 |
| KAWASAKI | KX 250F | 2014 |
| KAWASAKI | KX 250F | 2015 |
| KAWASAKI | KX 250F | 2016 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252307
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Kawasaki KX250F (2010-2016)
Upgrade your Kawasaki KX250F's engine performance and durability with this heavy-duty connecting rod kit from Hot Rods. Engineered for demanding use, this premium replacement kit includes all the necessary components for a complete and robust engine rebuild, ensuring exceptional strength and reliability.
Key Features:
- Superior Material Strength: Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for outstanding durability and wear resistance.
- Advanced Design: Incorporates side scalloping and vent slots to minimize high-RPM bearing race distortion, promoting longer component life.
- Enhanced Grain Flow: Double-forged rods ensure improved grain flow characteristics and consistent dimensional accuracy.
- Reinforced Construction: Shot-peened and double-honed for exceptional strength, capable of withstanding heavy loads.
- Optimized Lubrication: Small ends feature double drilling to enhance lubrication and cooling of the wrist pin bearing.
- High-Performance Bearings: Includes thrust washers and crankpin bearings treated with a silver coating for increased lubricity and reduced friction.
- Complete Kit: This comprehensive kit contains the connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers, providing everything needed for installation.

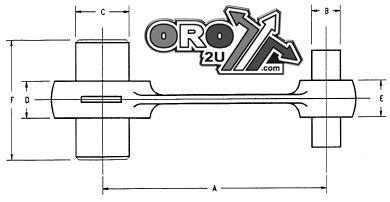

Technical Specifications:
- Centre to Centre Length: 92.50 mm
- Big End Bearing Size: KU 30x38x17.8 mm
- Big End Bore Diameter: 38.00 mm
- Big End Width: 17.98 mm
- Pin Diameter: 30.00 mm
OEM Cross-Reference:
- KAWASAKI: 13032-0076
