CONNECTING ROD 08-14 RMZ450, HOT RODS 8661 SUZUKI MX

Hot Rods Connecting Rod Kit for Suzuki RM-Z450

This heavy-duty connecting rod kit is engineered as a premium replacement part for your Suzuki RM-Z450. Crafted for superior durability and enhanced performance, this kit provides unwavering reliability even in the most demanding riding conditions. Its advanced design features work to minimize high-rpm bearing race distortion and extend the operational lifespan of your engine.

Key Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength and resilience.
• Strategically integrated side scalloping and vent slots are designed to reduce high-rpm bearing race distortion.
• Double-forged rod construction promotes improved grain flow and maintains consistent dimensional accuracy.
• Shot-peened and double-honed surface treatments enhance strength under significant load.
• The small end features double drilling to ensure optimal lubrication and cooling for the wrist pin bearing.
• Includes silver-coated thrust washers and crank pin bearings to improve lubricity.

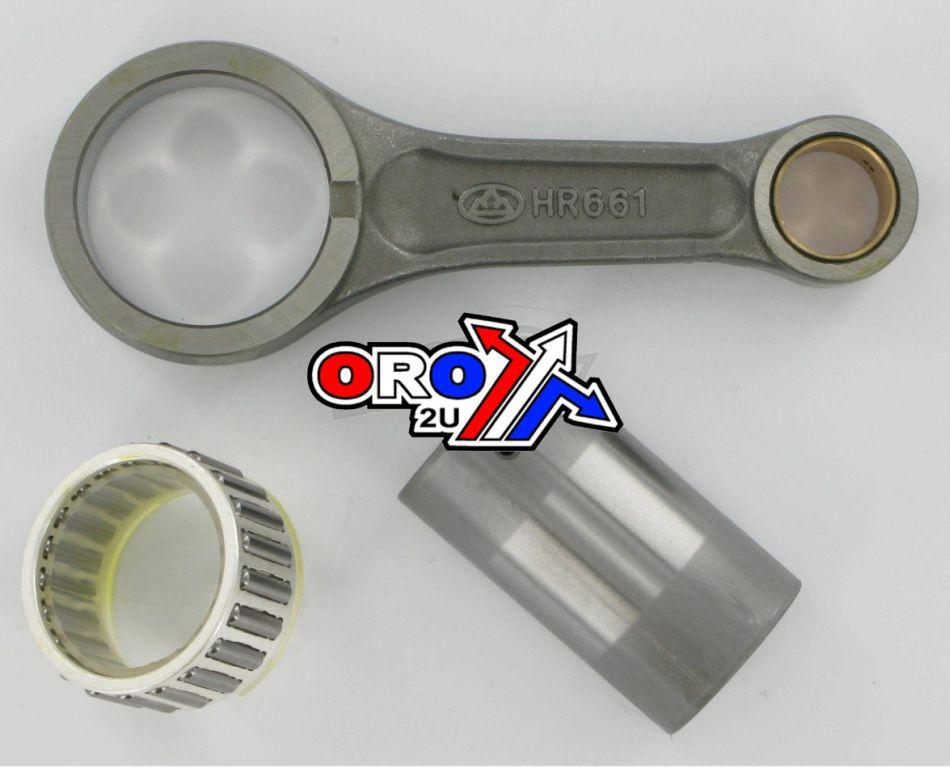

• This comprehensive kit contains the connecting rod, crank pin, crank pin bearing, top-end bearing, and necessary thrust washers.

Technical Specifications:

• Big End Bearing Dimensions (mm): 34x42x19.7
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.75
• Center to Center Length (mm): 105.60
• Crank Pin Diameter (mm): 34.00
• Crank Pin Length (mm): 60.80
• Small End Bearing Type: No Bushing
• Small End Bore (mm): 19.00
• Small End Width (mm): 16.50
