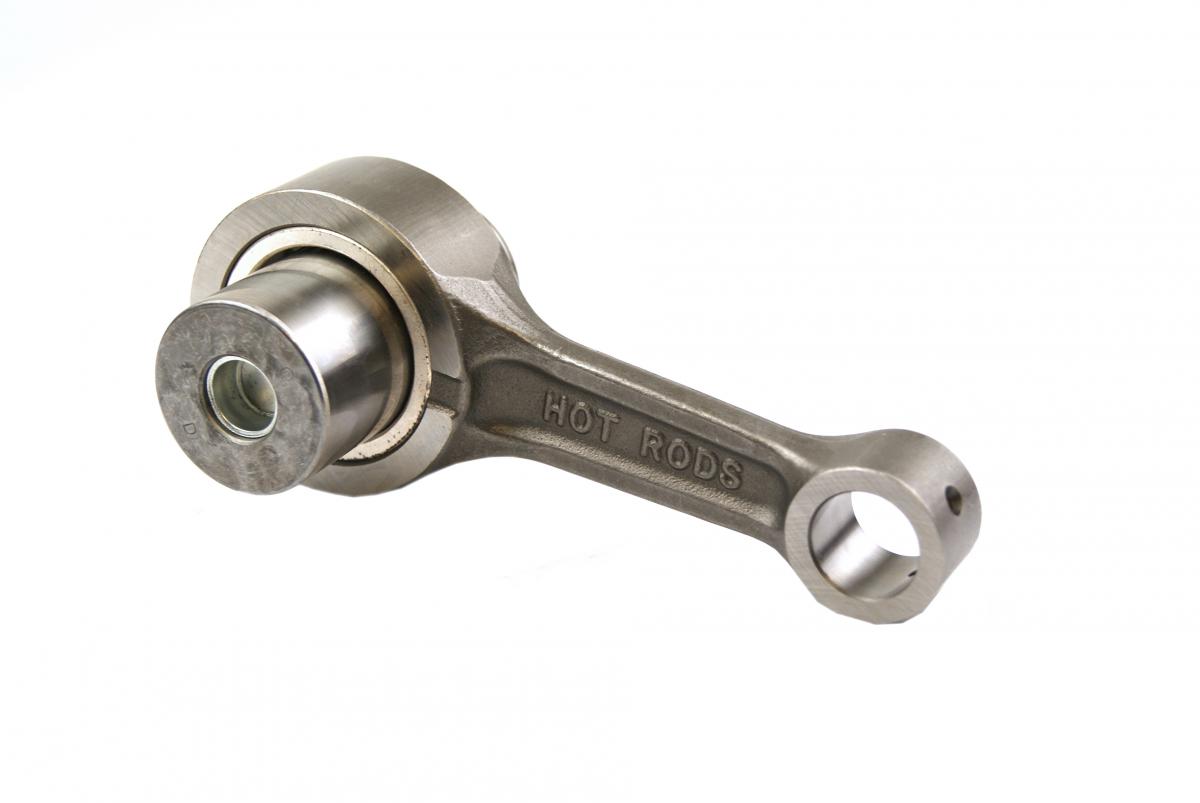

CONNECTING ROD 08-11 WR250R/X, HOT ROD 8696 YAMAHA
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

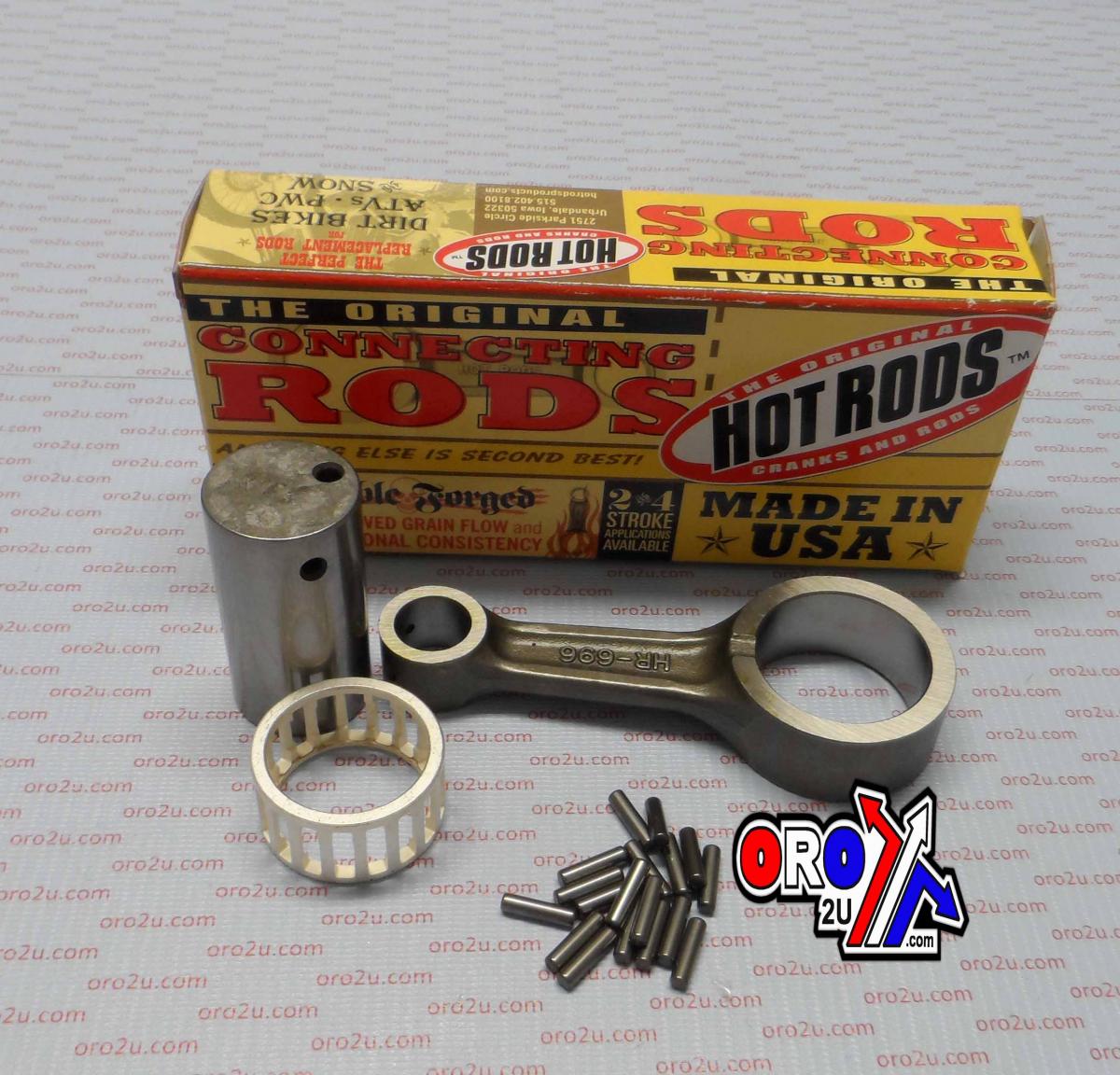

Hot Rods Heavy-Duty Connecting Rod Kit. Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc. Features advanced side scalloping and vent slots to reduce high RPM bearing race distortion. Double-forged rods enhance grain flow and dimensional consistency. Shot-peened and double-honed for increased strength under heavy loads. Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings offer added lubricity and extended lifespan. Big End Bearing: 32 x 40 x 20.8 mm. Big End Bore: 40.00 mm. Big End Width: 21.00 mm. Center to Center: 94.00 mm. Pin Diameter: 32.00 mm. Pin Length: 60.80 mm. Small End Bearing: No Bushing. Small End Bore: 17.00 mm. Small End Width: 17.00 mm. Washer Thickness: Not Used. Cross-Reference OEM Part Numbers: Yamaha 3D7-11651-00-00. Part Number: 56-858.HR.
- SKU
- 56-858.HR
- Brand
- Hot Rods
- Availability
- In Stock (2)
Fitments (13)
| Make | Model | Year |
|---|---|---|
| YAMAHA | WR R 250 | 2008 |
| YAMAHA | WR R 250 | 2009 |
| YAMAHA | WR R 250 | 2010 |
| YAMAHA | WR R 250 | 2011 |
| YAMAHA | WR R 250 | 2012 |
| YAMAHA | WR R 250 | 2013 |
| YAMAHA | WR R 250 | 2014 |
| YAMAHA | WR R 250 | 2015 |
| YAMAHA | WR R 250 | 2016 |
| YAMAHA | WR X 250 | 2008 |
| YAMAHA | WR X 250 | 2009 |
| YAMAHA | WR X 250 | 2010 |
| YAMAHA | WR X 250 | 2011 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 251996
FULL DESCRIPTION
Hot Rods Heavy-Duty Connecting Rod Kit
Upgrade your motorcycle's performance and reliability with this high-quality Hot Rods Heavy-Duty Connecting Rod Kit. Engineered for demanding applications, this kit is built to withstand extreme stress and provide exceptional durability.
Key Features:
- Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
- Constructed from hot-rolled ASTM 4115 steel for superior strength.
- Case-hardened to 58-62 Rc for maximum wear resistance.
- Advanced side scalloping and vent slots minimize high RPM bearing race distortion.
- Double-forged rods ensure improved grain flow and consistent dimensions.
- Shot-peened and double-honed treatment increases strength for heavy loads.
- Small end features double drilling for optimal wrist pin bearing lubrication and cooling.
- Silver-coated thrust washers and crank pin bearings enhance lubricity and extend lifespan.
Technical Specifications:
- Big End Bearing (mm): 32 x 40 x 20.8
- Big End Bore (mm): 40.00
- Big End Width (mm): 21.00
- Center to Center (mm): 94.00
- Pin Diameter (mm): 32.00
- Pin Length (mm): 60.80
- Small End Bore (mm): 17.00
- Small End Width (mm): 17.00
This connecting rod kit is designed to offer enhanced performance and longevity for your motorcycle's engine.
