CONNECTING ROD 07-20 CRF150, HOT RODS 8646 13000-KSE-670, 13000-KSE-671

Hot Rods Connecting Rod Rebuild Kit

This Hot Rods connecting rod rebuild kit is designed as a heavy-duty OE replacement part. It is constructed with certified chrome alloy steel for superior strength and durability. The crankpins are manufactured from hot-rolled ASTM steel and are case hardened for enhanced performance. Psychic Rods utilizes advanced caged needle roller bearing designs to ensure longevity at high RPMs.

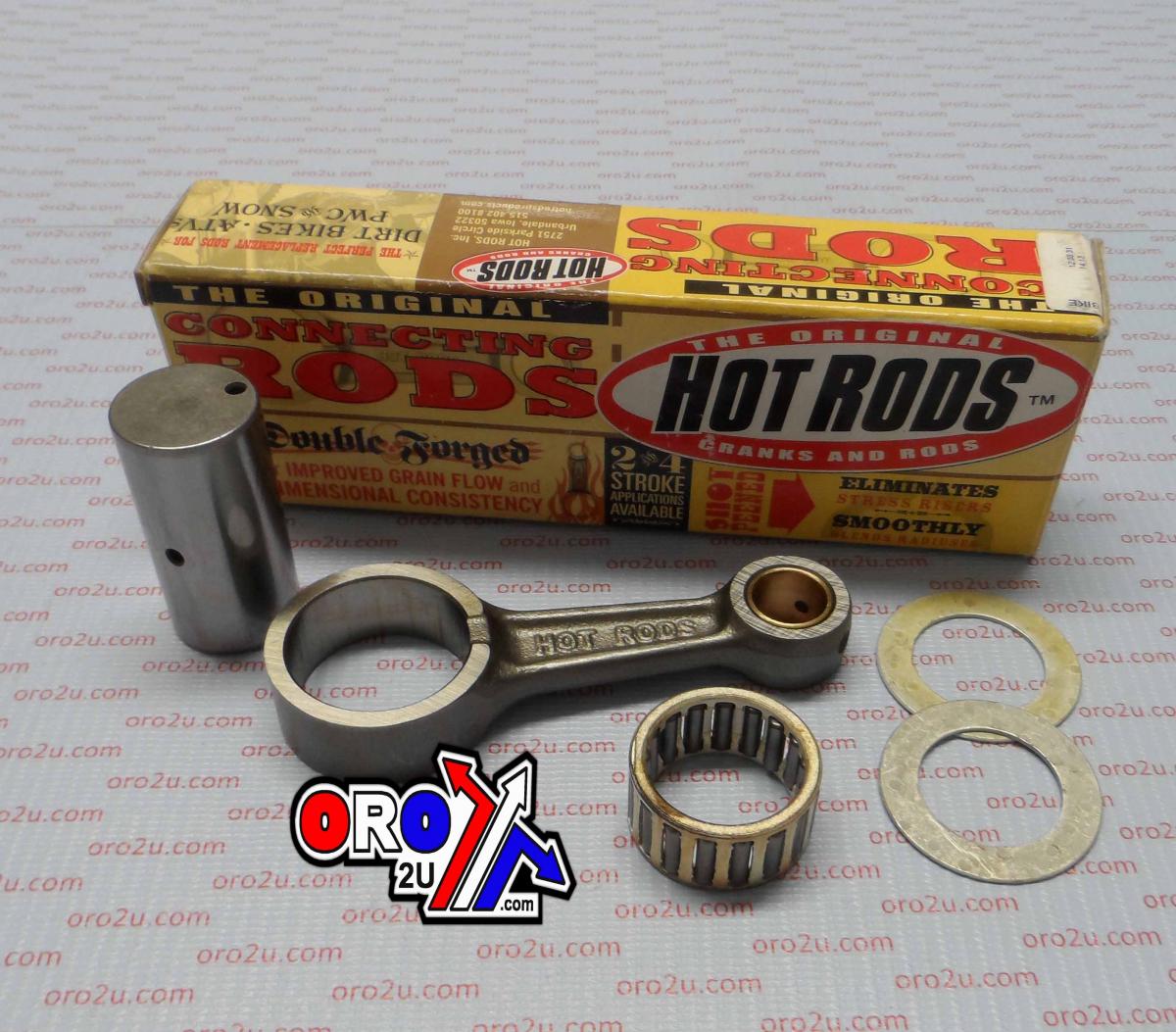

The thrust washers included in this kit are made from bronze phosphor and are silver coated. This rod assembly is sold complete with the rod, crankpin, crankpin bearing, and thrust washers. It is fully compatible with both aftermarket and OE crankshafts. The primary material used is SNCM220.

• Material: Certified Chrome Alloy Steel (SNCM220)
• Crankpin Construction: Hot-rolled ASTM steel, case hardened
• Bearing Type: Caged needle roller bearings
• Thrust Washers: Bronze phosphor, silver coated
• Compatibility: Fully compatible with aftermarket and OE crankshafts
• Kit Includes: Rod, crankpin, crankpin bearing, top end bearing, and thrust washers

Specifications

• Centre to Centre: 75.40 mm
• Small End Bearing: None
• Small End Bore Diameter: 14 mm
• Small End Width: 14 mm
• Big End Bearing: 25x32x15.7 mm
• Big End Bore Diameter: 32 mm
• Big End Width: 15.75 mm
• Big End Pin Diameter: 25 mm
• Big End Pin Length: 50 mm
• Washer Thickness: 0.94 mm

Part Numbers:, 56-934_HR, 8646

Cross Reference Numbers: 13000-KSE-670, 13000-KSE-671, WOSSNER P4024, WISECO WPR204, MX-09046, 03.1227
