CONNECTING ROD 07-15 RMZ250, HOTRODS 8653 SUZUKI MX

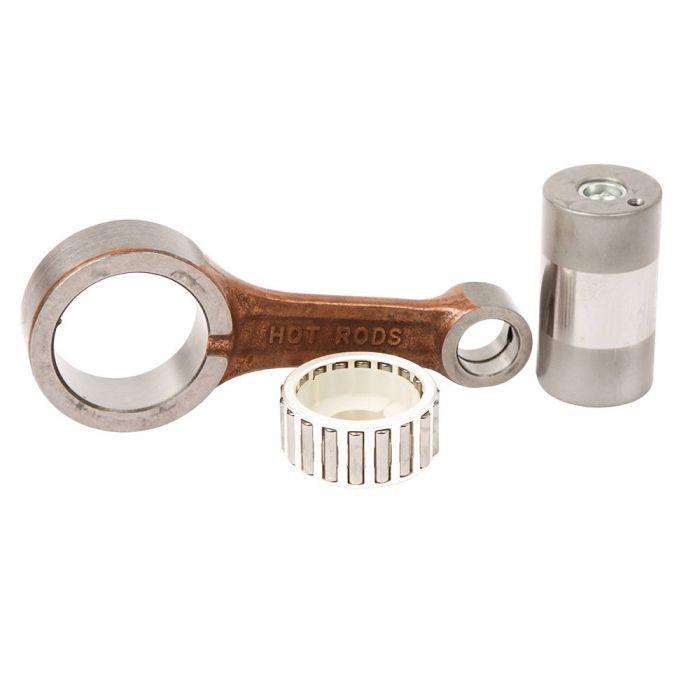

Hot Rods Connecting Rod for Suzuki RM-Z250

Enhance the performance and durability of your Suzuki RM-Z250 with this heavy-duty connecting rod kit from Hot Rods. Engineered as a premium replacement, this connecting rod is built to withstand the rigorous demands of high-rpm engine operation, ensuring long-lasting reliability for your off-road adventures.

Key Features:

• Constructed from hot-rolled ASTM 4115 steel, providing exceptional strength and resilience.
• Case-hardened to a hardness of 58-62 Rc for superior wear resistance.
• Features an advanced design with side scalloping and vent slots to effectively minimize bearing race distortion at high engine speeds.
• Double-forged construction promotes improved grain flow and ensures precise dimensional accuracy.
• Shot-peened and double-honed surfaces contribute to increased strength under heavy load conditions.
• Double-drilled small ends offer enhanced lubrication and cooling for the wrist pin bearing.
• Includes silver-coated thrust washers and crank pin bearings to boost lubricity and extend durability.

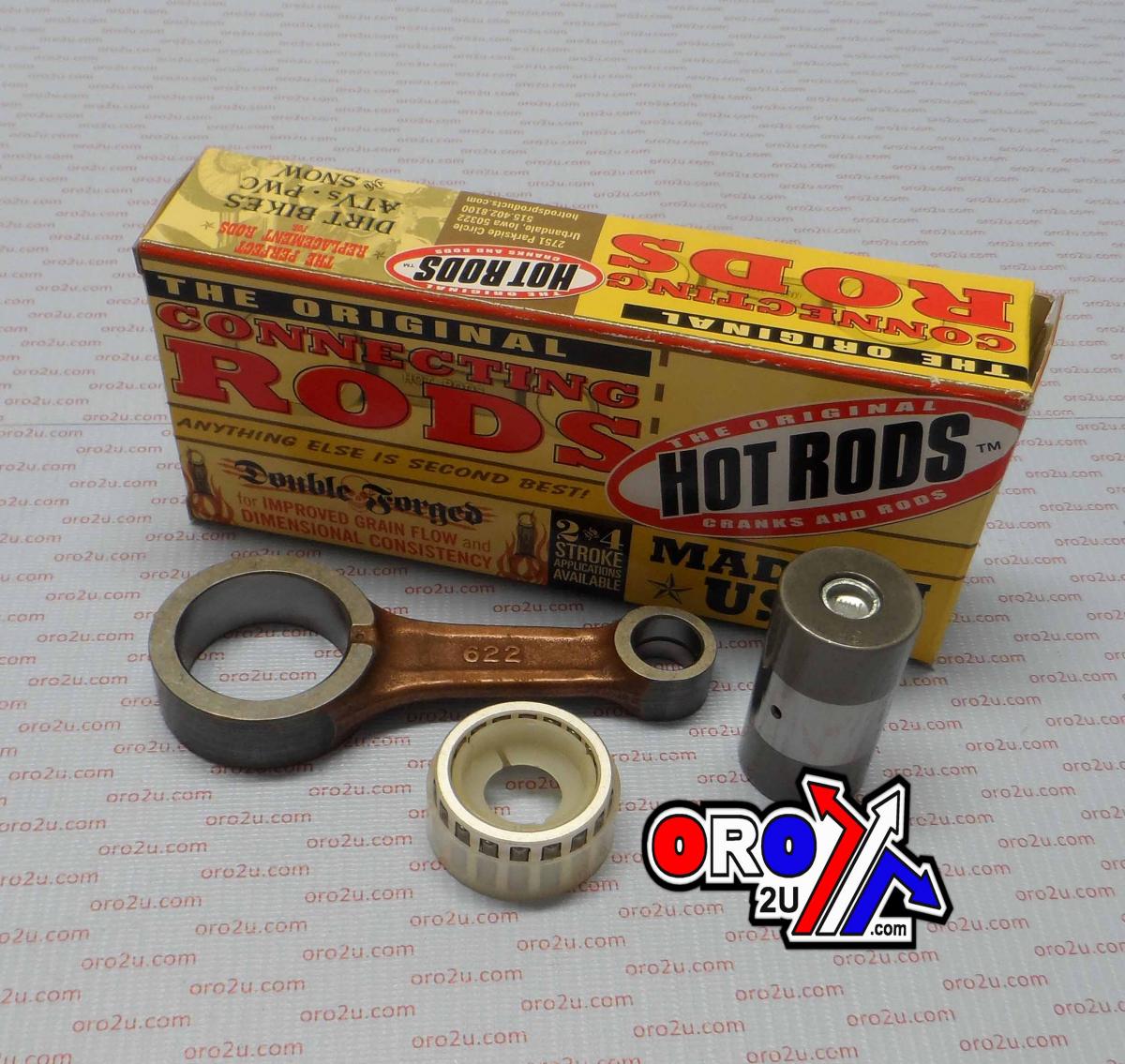

• This comprehensive kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and necessary thrust washers.

Technical Specifications:

• Big End Bearing Dimensions (mm): 30x38x17.7
• Big End Bore (mm): 38.00
• Big End Width (mm): 17.75
• Center to Center Length (mm): 92.50
• Crank Pin Diameter (mm): 30.00
• Crank Pin Length (mm): 54.85
• Small End Bearing Type: Bushing
• Small End Bore (mm): 16.00
• Small End Width (mm): 15.00
• Washer Thickness (mm): Not Used
