CONNECTING ROD 06-09 LTR450, HOTRODS 8648 SUZUKI ATV
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

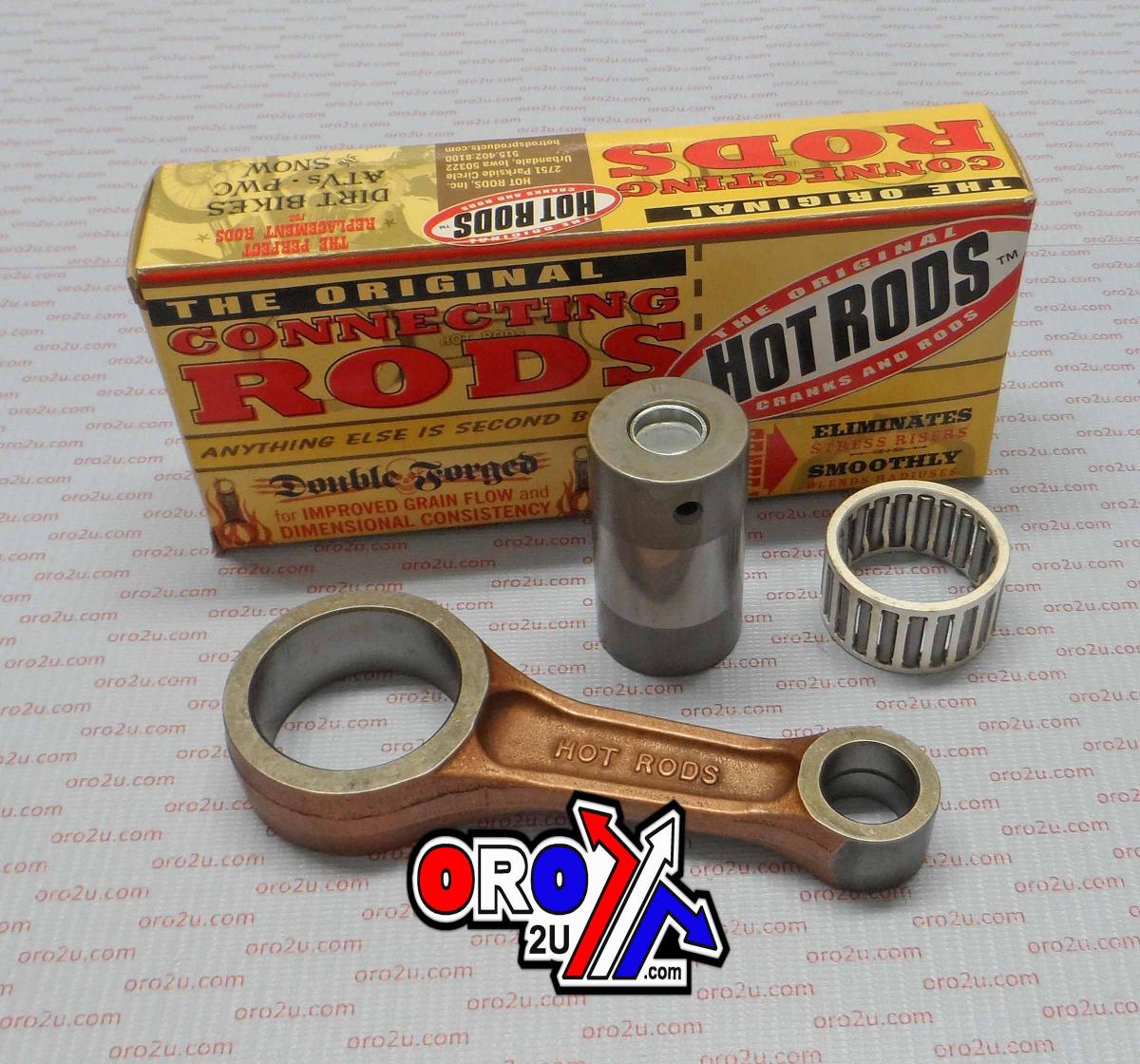

The Hot Rods Connecting Rod Kit (8648) is a premium-quality replacement designed for durability and high performance. It features advanced manufacturing techniques for reliability under extreme conditions and includes all necessary components for installation. Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc, it offers exceptional strength and longevity. Side scalloping and vent slots minimize high-rpm bearing race distortion. Double-forged rods improve grain flow and maintain dimensional consistency. Shot-peened and double-honed for enhanced durability under heavy loads. Double-drilled small ends ensure superior lubrication and cooling for the wrist pin bearing. Thrust washers and crank pin bearings are silver-coated for increased lubricity. The complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers. Big End Bearing: 34x42x21.6 mm. Big End Bore: 42.00 mm. Big End Width: 21.75 mm. Center to Center: 107.00 mm. Pin Diameter: 34.00 mm. Pin Length: 60.80 mm. Small End Bearing: Bushing. Small End Bore: 19.00 mm. Cross-Reference OEM Part Numbers: 12160-45G10, 12161-45G00. Part Number: 8648.
- SKU
- 56-274_HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 250437
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Suzuki LT-R 450
Enhance the performance and durability of your Suzuki LT-R 450 with the Hot Rods Connecting Rod Kit (Part Number 8648). This premium-quality replacement is engineered for exceptional strength and reliability, making it ideal for repairs or engine rebuilds. Utilizing advanced manufacturing techniques, this connecting rod is built to withstand demanding riding conditions.
Key Features:
- Material Strength: Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for superior strength and a long service life.
- Performance Enhancements: Side scalloping and vent slots are incorporated to minimize distortion in bearing races at high RPMs.
- Durable Construction: Double-forged rods improve grain flow and ensure consistent dimensions, while shot-peening and double-honing enhance durability under heavy loads.
- Optimized Lubrication: Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
- Enhanced Bearing Performance: Thrust washers and crank pin bearings feature a silver coating for increased lubricity.
- Complete Kit: Includes all essential components for installation: rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
Technical Specifications:
- Big End Bearing: 34x42x21.6 mm
- Big End Bore: 42.00 mm
- Big End Width: 21.75 mm
- Center to Center Length: 107.00 mm
- Pin Diameter: 34.00 mm
- Pin Length: 60.80 mm
- Small End Bearing Type: Bushing
- Small End Bore: 19.00 mm
