CONNECTING ROD 04-11 RM125, HOT RODS 8615 SUZUKI MX

Hot Rods Connecting Rod Kit for RM125

This high-quality connecting rod kit is designed as a premium replacement part for your Suzuki RM125. Engineered for superior strength, durability, and performance, especially in demanding high-rpm and heavy-load operating conditions. Manufactured using advanced materials and processes, this comprehensive kit provides all the essential components for a reliable engine rebuild.

Key Features:

• Premium Construction: Features a connecting rod crafted from hot-rolled ASTM 4115 steel, case-hardened to a Rockwell hardness of 58-62 Rc for exceptional resilience.
• Performance Enhancements: Incorporates an advanced design with side scalloping and vent slots to effectively minimize bearing race distortion at high RPMs.
• Forged Durability: Double-forged rod construction ensures improved grain flow and consistent dimensional accuracy for long-lasting performance.
• Stress Resistance: Shot-peened and double-honed rod surfaces enhance durability, enabling the component to withstand heavy operational loads.
• Optimized Lubrication: Small ends are double-drilled to promote superior lubrication and cooling of the wrist pin bearing.
• Enhanced Lubricity: Includes silver-coated thrust washers and crank pin bearings for increased surface lubricity.

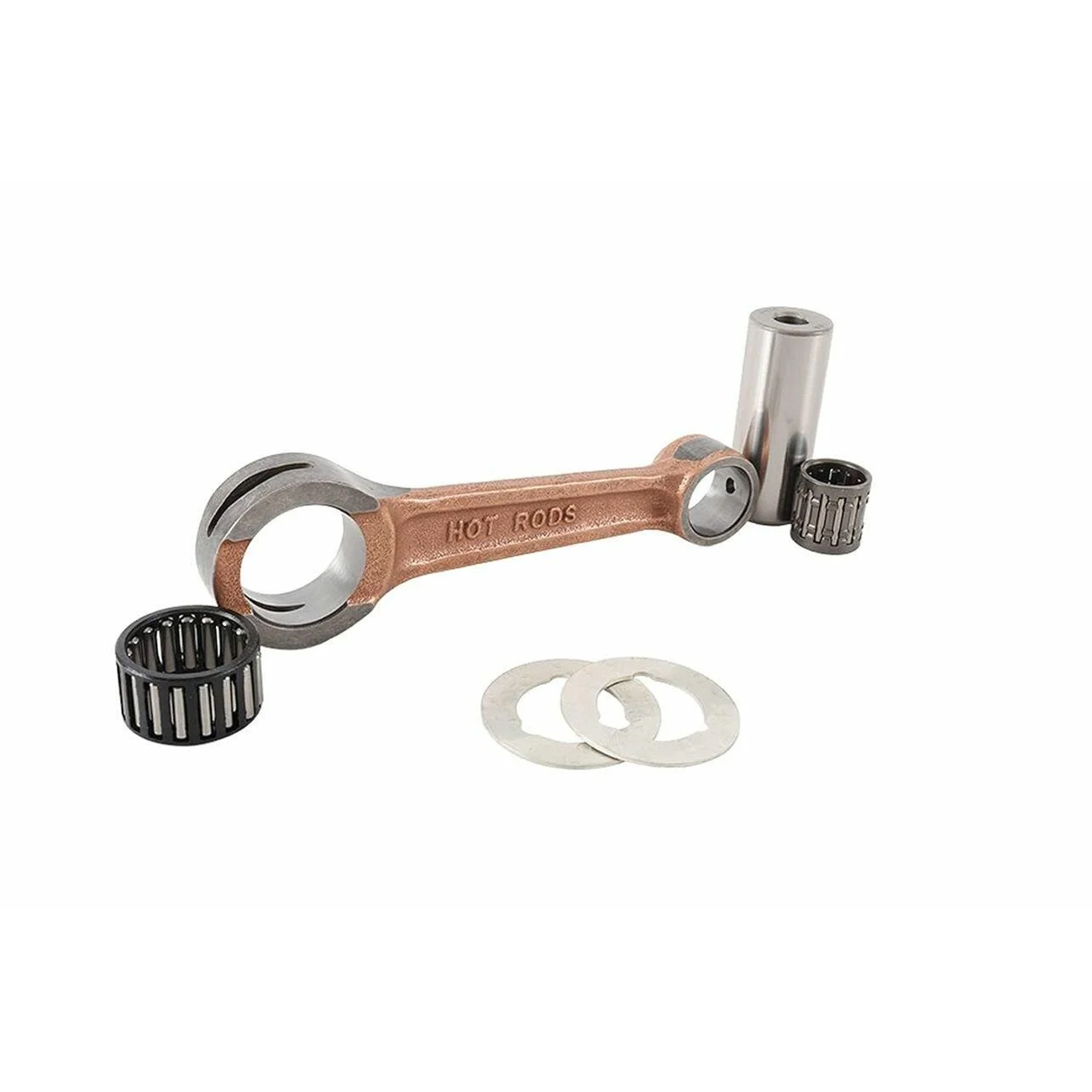

• Complete Kit: This all-inclusive kit contains the connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers, ready for installation.

Specifications:

• Center-to-Center Distance: 110.00 mm
• Big End Bearing Dimensions: 22 mm x 28 mm x 16 mm
• Big End Bore Diameter: 28.00 mm
• Big End Width: 15.90 mm
• Crank Pin Diameter: 22.00 mm
• Crank Pin Length: 52.70 mm
• Small End Bearing Dimensions: 15 mm x 19 mm x 19.5 mm

OEM Cross Reference:

• Suzuki: 12161-36E11
• Suzuki: 12161-36E12
• Suzuki: 12161-36F20
• Suzuki: 12161-36F21
