CONNECTING ROD 03-12 RM250, PSYCHIC MX-09058 SUZUKI

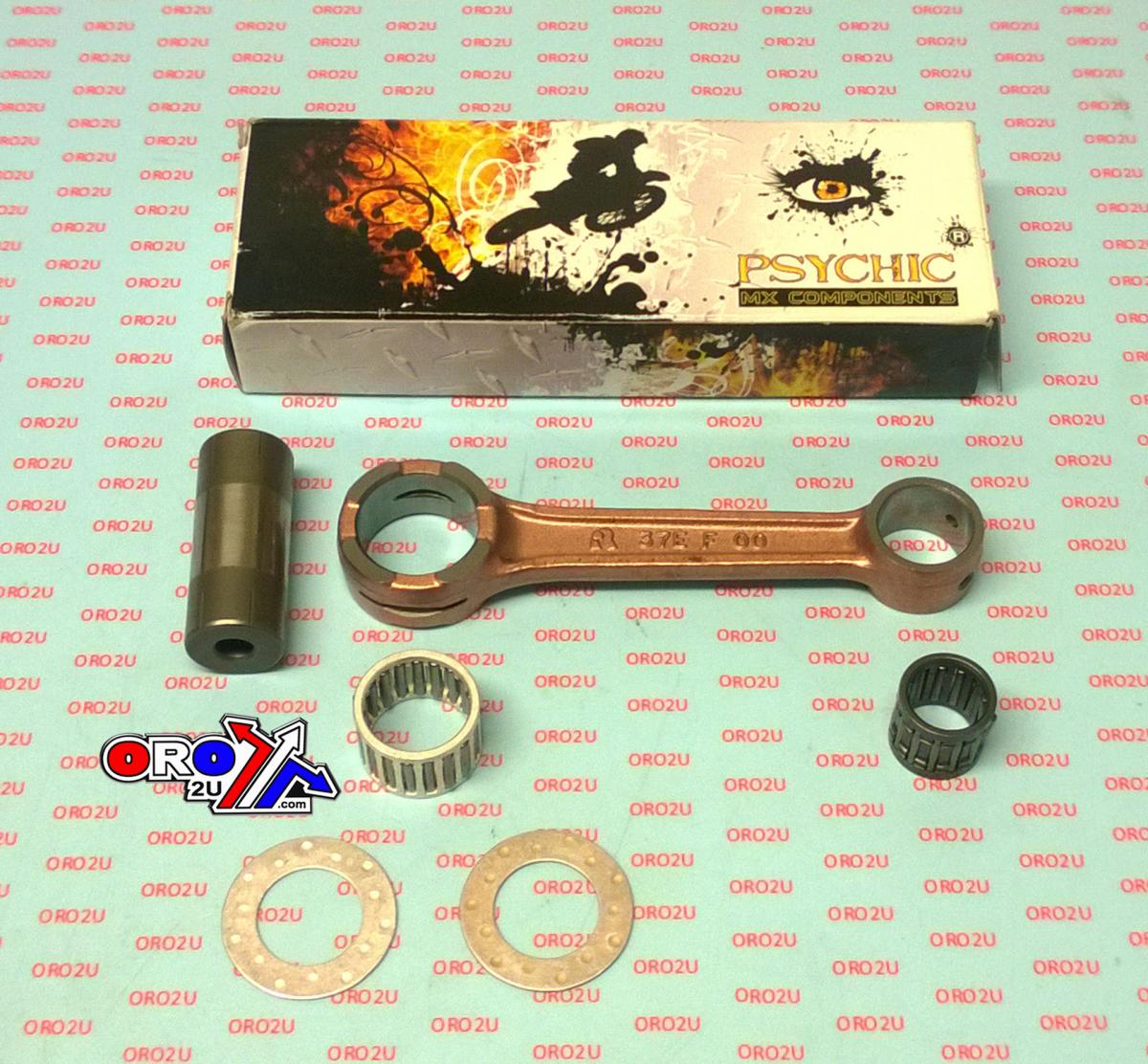

Psychic MX-09058 Connecting Rod Rebuild Kit

Enhance the performance and durability of your motorcycle's engine with the Psychic MX-09058 Connecting Rod Rebuild Kit. Engineered as a heavy-duty OE replacement, this kit provides superior strength and longevity for demanding riding conditions.

Key Features:

• Material Strength: Crafted from certified Chrome alloy steel (SNCM220) for exceptional toughness and resistance to wear.
• High RPM Longevity: Utilizes the latest caged needle roller bearing designs to ensure reliability even at high engine speeds.
• Durable Components: Crankpins are manufactured from hot-rolled ASTM steel and case-hardened. Thrust washers are made from silver-coated bronze phosphor.
• Complete Kit: Includes the rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if applicable) for a comprehensive rebuild.
• OE Quality: Meets or exceeds OEM specifications and quality standards, ensuring a perfect fit and function.
• Universal Compatibility: Fully compatible with both aftermarket and original equipment crankshafts.
• Direct Replacement: Designed for a direct OEM replacement, simplifying installation.

Specifications:

• Centre to Centre: 125 MM
• Small End Bearing: 18x23x21.80 MM
• Small End Bore Diameter: 23 MM
• Small End Width: 20 MM (19.80 MM)
• Big End Bearing: 24x30x19.80 MM
• Big End Bore Diameter: 30 MM
• Big End Width: 20 MM (19.80 MM)
• Big End Pin Diameter: 24 MM
• Big End Pin Length: 59.25 MM
• Washer Thickness: 24x39x1.0 MM
