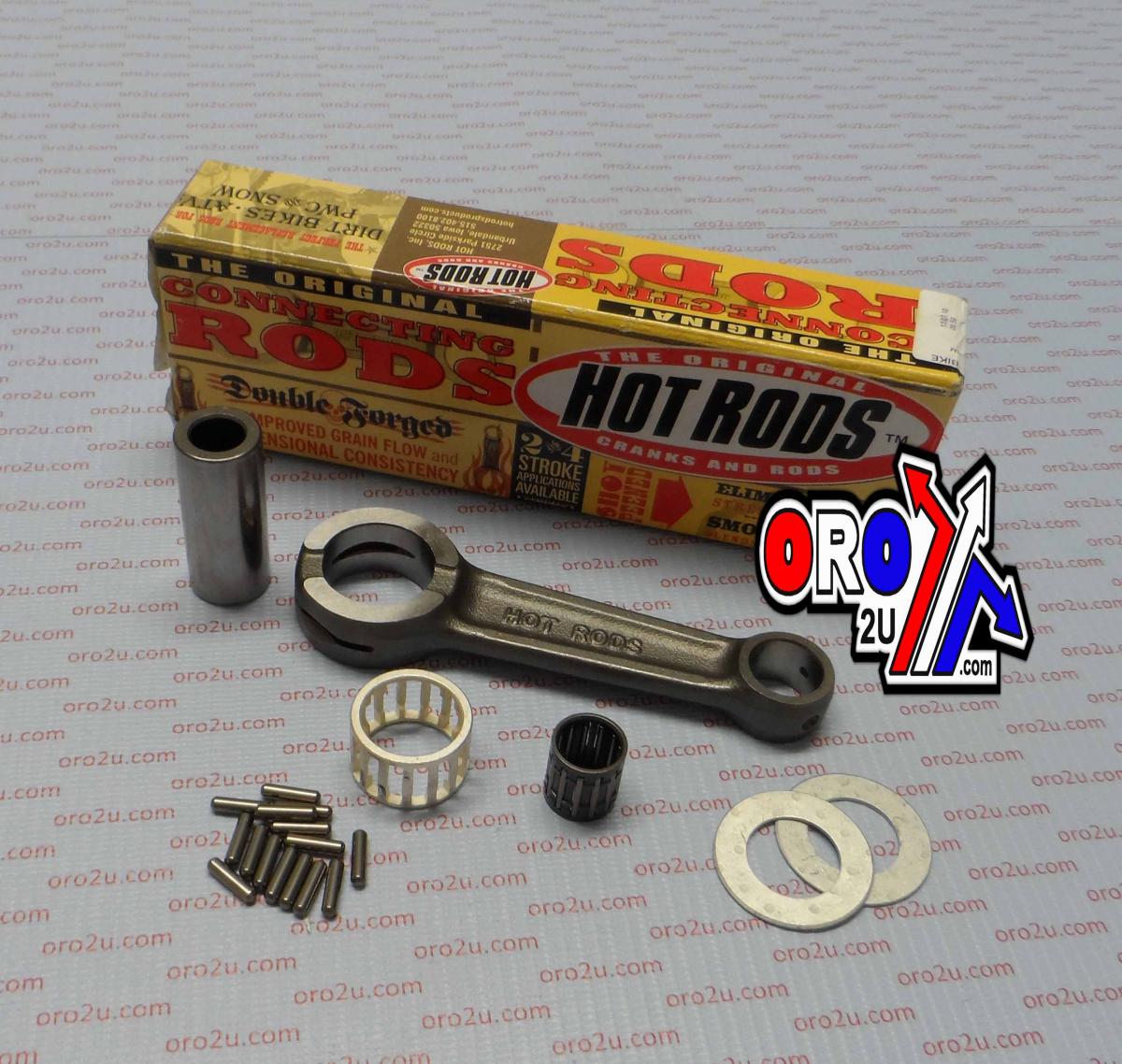

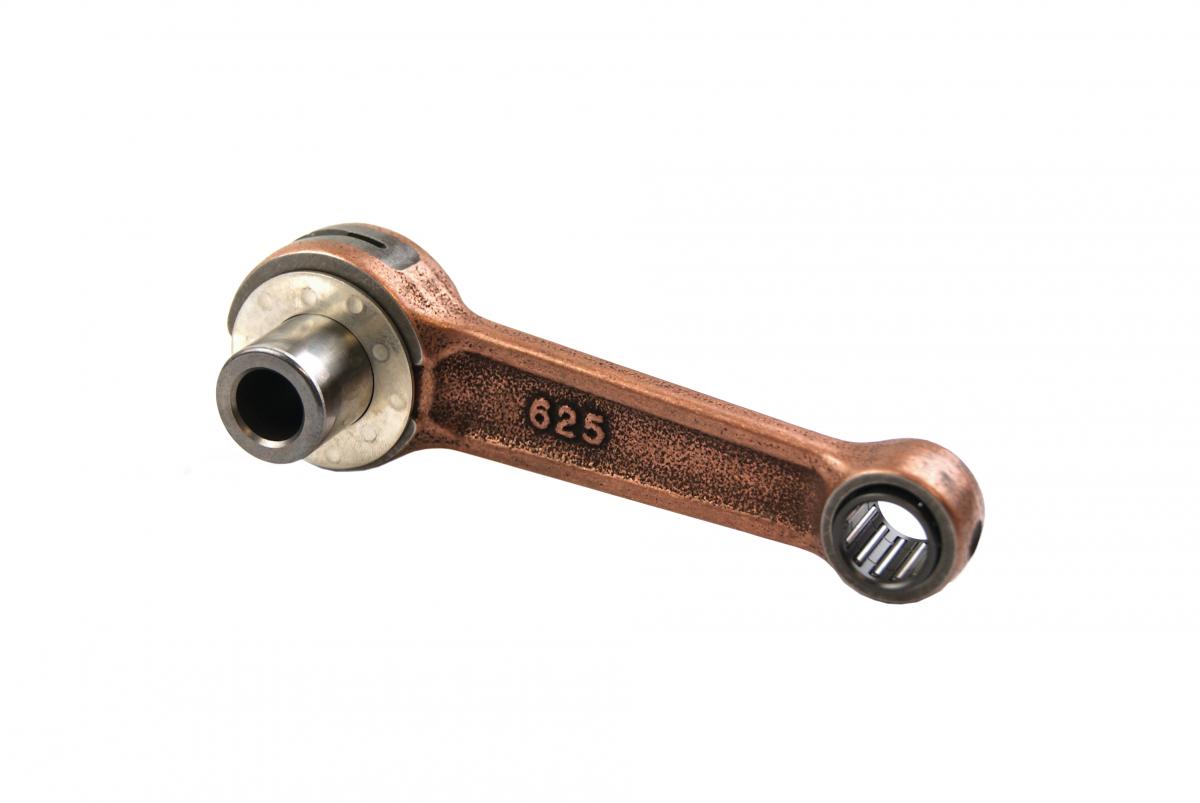

CONNECTING ROD 03-08 KTM65, HOT ROD 8626 KIT
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Heavy-duty connecting rod kit. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength. Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion. Double-forged rods ensure improved grain flow and dimensional consistency. Shot-peened and double-honed for superior strength under heavy loads. Small ends are double drilled to provide extra lubrication and cooling of the wrist pin bearing. Thrust washers and crankpin bearings feature silver coating for added lubricity. Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Centre to Centre: 88.00 mm. Big End Bore: 24.00 mm. Pin Diameter: 18.00 mm. Pin Length: 42.00 mm. Small End Bore: 15.00 mm. Washer Thickness: 1.00 mm. Cross-Reference OEM Part Numbers: KTM: 46030015100, HOTRODS 8626. Part Number: 56-960.HR.
- SKU
- 56-960.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
Fitments (9)
| Make | Model | Year |
|---|---|---|
| KTM | 65 SX | 2000 |
| KTM | 65 SX | 2001 |
| KTM | 65 SX | 2002 |
| KTM | 65 SX | 2003 |
| KTM | 65 SX | 2004 |
| KTM | 65 SX | 2005 |
| KTM | 65 SX | 2006 |
| KTM | 65 SX | 2007 |
| KTM | 65 SX | 2008 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 252342
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for KTM 65
Upgrade your KTM 65 SX or XC with this heavy-duty connecting rod kit from Hot Rods. Engineered for exceptional durability and performance, this kit is designed to withstand demanding riding conditions.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
- Advanced design incorporates side scalloping and vent slots to minimize bearing race distortion at high RPMs.
- Double-forged rods provide improved grain flow and consistent dimensions.
- Shot-peened and double-honed for enhanced strength under heavy loads.
- Features double-drilled small ends for increased lubrication and cooling of the wrist pin bearing.
- Includes thrust washers and crankpin bearings with a silver coating for added lubricity.
- This comprehensive kit contains all necessary components for a complete rebuild: rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Centre to Centre Length: 88.00 mm
- Big End Bore Diameter: 24.00 mm
- Crankpin Diameter: 18.00 mm
- Crankpin Length: 42.00 mm
- Small End Bore Diameter: 15.00 mm
- Washer Thickness: 1.00 mm
