CONNECTING ROD 02-20 RM85, PSYCHIC MX-09055 SUZUKI
4.1 Trustpilot 99.9% positive on eBay
UK delivery £4.99, free over £60 2–4 business days
Spread the cost with
18+, T&Cs apply

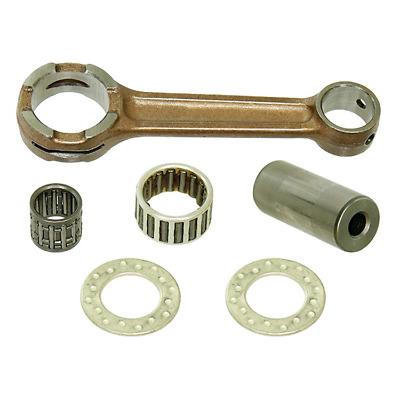

CONNECTING ROD REBUILD KIT PSYCHIC MX-09055. Heavy-duty OE replacement connecting rods. Certified Chorme alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with after market and OE crankshafts. Material SNCM220. Psychic Racing products are a high quality replacement part. Size specifications: Centre to Centre 93.50mm, Small End Bearing 14x18x14mm, Small End Bore Ø 18mm, Small End Width 14mm, Big End Bearing 20x26x14mm, Big End Bore Ø 26mm, Big End Width 14mm, Big End Pin Ø 20mm, Big End Pin Length 44.60mm, Washer Thickness 20x1.50mm.
- SKU
- 56-108.DR
- Brand
- Psychic
- Availability
- In Stock (14)
Fitments (34)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 80 | 1990 |
| SUZUKI | RM 80 | 1991 |
| SUZUKI | RM 80 | 1992 |
| SUZUKI | RM 80 | 1993 |
| SUZUKI | RM 80 | 1994 |
| SUZUKI | RM 80 | 1995 |
| SUZUKI | RM 80 | 1996 |
| SUZUKI | RM 80 | 1997 |
| SUZUKI | RM 80 | 1998 |
| SUZUKI | RM 80 | 1999 |
| SUZUKI | RM 80 | 2000 |
| SUZUKI | RM 80 | 2001 |
| SUZUKI | RM 85 | 2002 |
| SUZUKI | RM 85 | 2003 |
| SUZUKI | RM 85 | 2004 |
| SUZUKI | RM 85 | 2005 |
| SUZUKI | RM 85 | 2006 |
| SUZUKI | RM 85 | 2007 |
| SUZUKI | RM 85 | 2008 |
| SUZUKI | RM 85 | 2009 |
| SUZUKI | RM 85 | 2010 |
| SUZUKI | RM 85 | 2011 |
| SUZUKI | RM 85 | 2012 |
| SUZUKI | RM 85 | 2013 |
| SUZUKI | RM 85 | 2014 |
| SUZUKI | RM 85 | 2015 |
| SUZUKI | RM 85 | 2016 |
| SUZUKI | RM 85 | 2017 |
| SUZUKI | RM 85 | 2018 |
| SUZUKI | RM 85 | 2019 |
| SUZUKI | RM 85 | 2020 |
| SUZUKI | RM 85 | 2021 |
| SUZUKI | RM 85 | 2022 |
| SUZUKI | RM 85 | 2023 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249952
FULL DESCRIPTION
Psychic Connecting Rod Rebuild Kit
This Psychic MX-09055 connecting rod rebuild kit is engineered as a heavy-duty OE replacement for compatible motorcycle models. It provides superior strength and longevity for high-rpm performance.
Key Features:
- Constructed from certified chrome alloy steel for exceptional durability.
- Crankpins are manufactured from hot-rolled ASTM steel and are case hardened.
- Utilizes advanced caged needle roller bearing designs for extended high-rpm operation.
- Thrust washers are made from phosphor bronze with a silver coating.
- Each rod assembly is complete, including the rod, crankpin, crankpin bearing, top end bearing, and thrust washers as needed.
- Fully compatible with both aftermarket and original equipment crankshafts.
- Material: SNCM220.
Specifications:
- Center to Center: 93.50 mm
- Small End Bearing Dimensions: 14x18x14 mm (Inner Diameter x Outer Diameter x Width)
- Big End Bearing Dimensions: 20x26x14 mm (Inner Diameter x Outer Diameter x Width)
- Big End Pin Diameter: 20 mm
- Big End Pin Length: 44.60 mm
- Washer Thickness: 1.50 mm
