CONNECTING ROD 02-18 RM85, HOT RODS 8610 SUZUKI
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Hot Rods connecting rod kit 8610 is a premium replacement engineered with precision and durability for exceptional performance in high-RPM applications and reliability under heavy loads. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength. Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion. Double-forged rods improve grain flow and consistent dimensions. Shot-peened and double-honed for superior strength and reliability. Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing. Thrust washers and crank pin bearings are silver-coated for enhanced lubricity. Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Center-to-Center Length: 93.50 mm, Big End Bore Diameter: 26.00 mm, Small End Bore Diameter: 14.00 mm, Pin Length: 44.60 mm, Washer Thickness: 1.50 mm, Big End Bearing: 20 x 26 x 13.7 mm. Suzuki OEM cross-reference numbers: 12161-03B00, 12161-03B01, 12161-03B02. Part Number: 56-108.HR.
- SKU
- 56-108.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
Fitments (34)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM 80 | 1990 |
| SUZUKI | RM 80 | 1991 |
| SUZUKI | RM 80 | 1992 |
| SUZUKI | RM 80 | 1993 |
| SUZUKI | RM 80 | 1994 |
| SUZUKI | RM 80 | 1995 |
| SUZUKI | RM 80 | 1996 |
| SUZUKI | RM 80 | 1997 |
| SUZUKI | RM 80 | 1998 |
| SUZUKI | RM 80 | 1999 |
| SUZUKI | RM 80 | 2000 |
| SUZUKI | RM 80 | 2001 |
| SUZUKI | RM 85 | 2002 |
| SUZUKI | RM 85 | 2003 |
| SUZUKI | RM 85 | 2004 |
| SUZUKI | RM 85 | 2005 |
| SUZUKI | RM 85 | 2006 |
| SUZUKI | RM 85 | 2007 |
| SUZUKI | RM 85 | 2008 |
| SUZUKI | RM 85 | 2009 |
| SUZUKI | RM 85 | 2010 |
| SUZUKI | RM 85 | 2011 |
| SUZUKI | RM 85 | 2012 |
| SUZUKI | RM 85 | 2013 |
| SUZUKI | RM 85 | 2014 |
| SUZUKI | RM 85 | 2015 |
| SUZUKI | RM 85 | 2016 |
| SUZUKI | RM 85 | 2017 |
| SUZUKI | RM 85 | 2018 |
| SUZUKI | RM 85 | 2019 |
| SUZUKI | RM 85 | 2020 |
| SUZUKI | RM 85 | 2021 |
| SUZUKI | RM 85 | 2022 |
| SUZUKI | RM 85 | 2023 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 249955
FULL DESCRIPTION

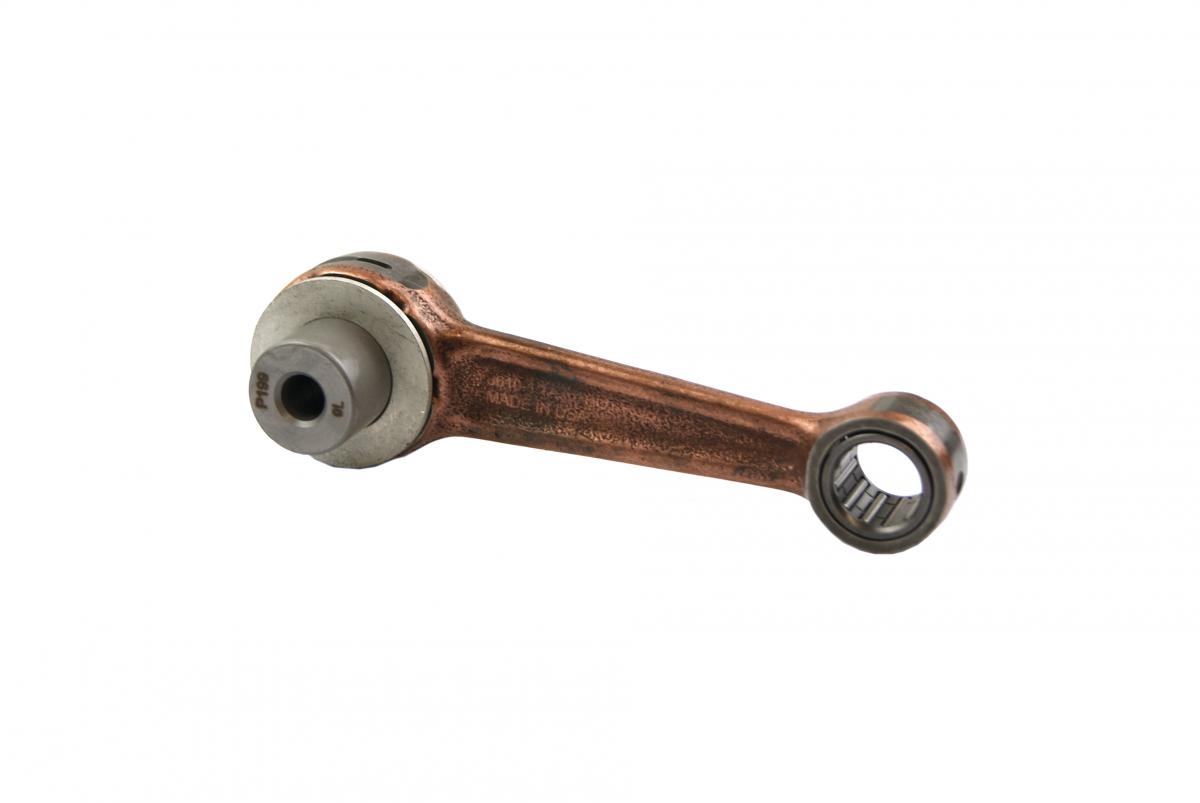

Hot Rods Connecting Rod Kit for Suzuki RM85
Upgrade your Suzuki RM85 with the Hot Rods Connecting Rod Kit. This premium replacement part is engineered for precision, durability, and exceptional performance, especially in high-RPM applications. Built to withstand heavy loads, this connecting rod ensures reliability and enhances your motorcycle's capabilities.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel for superior strength.
- Case-hardened to 58-62 Rc for extreme durability and wear resistance.
- Advanced side scalloping and vent slots reduce bearing race distortion at high RPMs.
- Double-forged rods ensure optimal grain flow and consistent dimensions.
- Shot-peened and double-honed treatment enhances overall strength and longevity.
- Small ends feature double-drilling for improved lubrication and cooling of the wrist pin bearing.
- Silver-coated thrust washers and crank pin bearings provide enhanced lubricity.

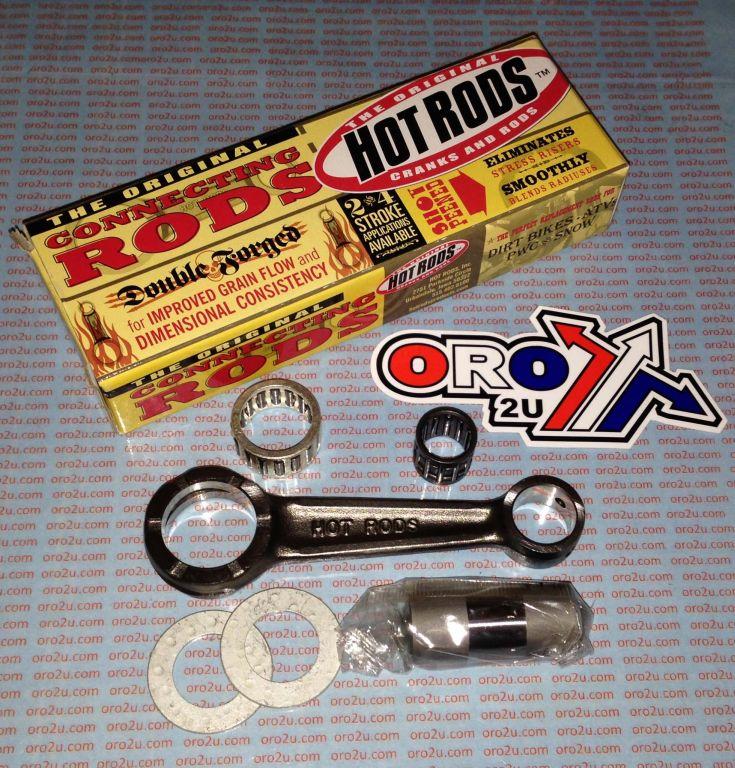

- Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Specifications:
- Center-to-Center Length (A): 93.50 mm
- Big End Bore Diameter (B): 26.00 mm
- Small End Bore Diameter (D): 14.00 mm
- Pin Length (F): 44.60 mm
- Washer Thickness: 1.50 mm
- Big End Bearing Dimensions: 20 x 26 x 13.7 mm
