CONNECTING ROD 02-09 LT-A400, BRONCO AT-09197 SUZUKI ATV

Bronco Connecting Rod Kit for Suzuki ATVs

This high-quality connecting rod kit from Bronco is designed as a heavy-duty OE replacement for select Suzuki ATV models. Constructed with certified chrome alloy steel, it offers superior strength and durability for demanding off-road use.

Key Features:

• Material: Certified chrome alloy steel (SNCM220) for exceptional strength.
• Crankpins: Manufactured from hot-rolled ASTM steel and case hardened for longevity.
• Bearing Design: Utilizes the latest caged needle roller bearing designs for high RPM performance.
• Thrust Washers: Made from bronze phosphor and silver coated for optimal performance.

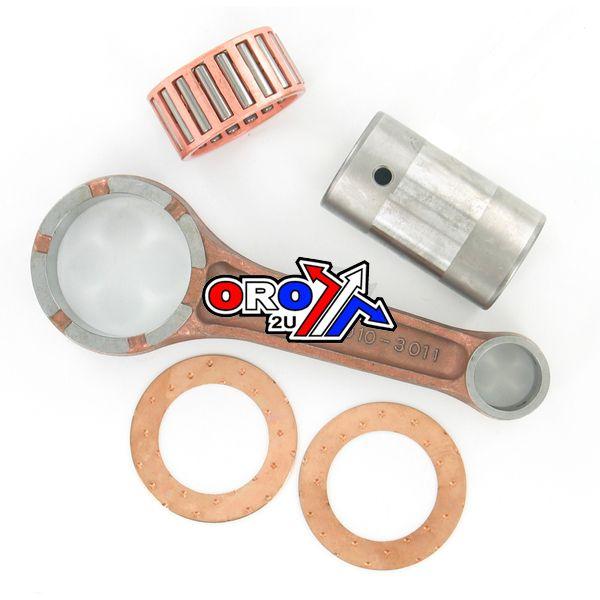

• Complete Kit: Includes the connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
• Compatibility: Fully compatible with both aftermarket and OE crankshafts.

Specifications:

• Centre to Centre: 105.50 mm
• Small End Bearing: None included
• Small End Bore Diameter: 20 mm
• Small End Width: 22 mm
• Big End Bearing Dimensions: 34 mm x 43 mm x 21.70 mm
• Big End Bore Diameter: 43 mm
• Big End Width: 22 mm
• Big End Pin Diameter: 34 mm
• Big End Pin Length: 59.75 mm
• Washer Thickness: 1.00 mm
