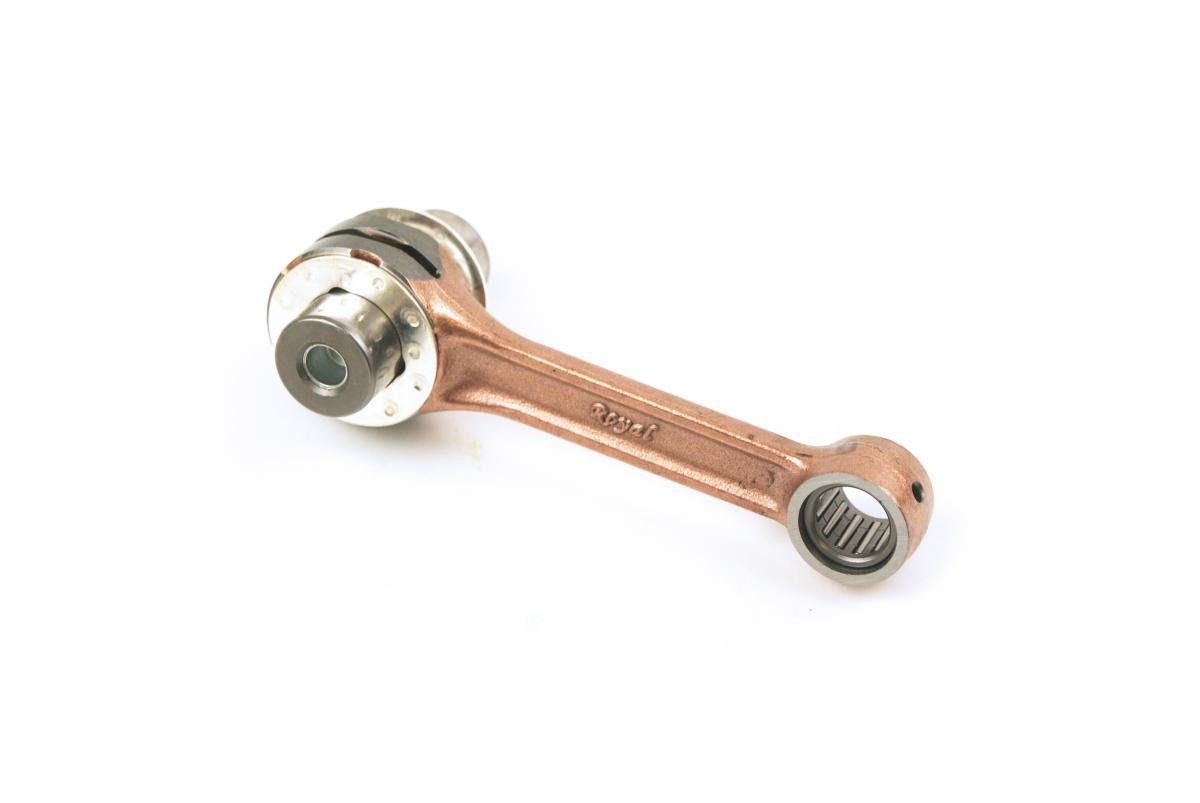

CONNECTING ROD 01-04 YZ125, NAMURA RX-40014 / MX-09082 YAMAHA MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
NAMURA RX-40014 Connecting Rod Rebuild Kit. Heavy-duty OE replacement connecting rods. Certified chrome alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Big End Bearing (mm): 22x29x16.7, Big End Bore (mm): 29.00, Big End Width (mm): 16.90, Center To Center (mm): 105.00, Pin Diameter (mm): 22.00, Pin Length (mm): 54.30, Small End Bearing (mm): 15x19x17.6, Small End Bore (mm): 19.00, Small End Width (mm): 16.90. Cross reference numbers: 5MV-11651-00-00, HOT RODS 8604, WISECO WPR183, WOSSNER P2017, PSYCHIC MX-09082.
- SKU
- 56-168.NM
- Brand
- Namura Technologies
- Availability
- In Stock (8)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| YAMAHA | YZ 125 | 2001 |
| YAMAHA | YZ 125 | 2002 |
| YAMAHA | YZ 125 | 2003 |
| YAMAHA | YZ 125 | 2004 |
- General Product Group
- Crankshafts & Parts
- General Product Type
- Connecting Rod
- Variant Id
- 309696
FULL DESCRIPTION
Namura Connecting Rod Rebuild Kit for Yamaha YZ125
This high-quality connecting rod rebuild kit from Namura is engineered as a heavy-duty OE replacement for your Yamaha YZ125.
Key Features:
- Constructed from certified chrome alloy steel for superior strength and durability.
- Crankpins are manufactured from hot-rolled ASTM steel and are case hardened for enhanced performance.
- Utilizes advanced caged needle roller bearing designs for high RPM longevity.
- Thrust washers are made from bronze phosphor and feature a silver coating.
- The complete rod assembly includes the rod, crankpin, crankpin bearing, top end bearing, and thrust washers where applicable.
- Fully compatible with both aftermarket and original equipment (OE) crankshafts.
- Material specification: SNCM220.
Specifications:
- Big End Bearing (mm): 22x29x16.7
- Big End Bore (mm): 29.00
- Big End Width (mm): 16.90
- Center To Center (mm): 105.00
- Pin Diameter (mm): 22.00
- Pin Length (mm): 54.30
- Small End Bearing (mm): 15x19x17.6
- Small End Bore (mm): 19.00
- Small End Width (mm): 16.90
