SWITCH UNIVERSAL COMPACT T/S K&S 12-0040
K&S 12-0040 universal compact handlebar switch assembly for motorcycles. Features include turn signal control with right, left, and center push-cancelling, headlight controls for high beam, low beam, off, parking, and on, passing light function, horn control, and kill switch function. Includes LED indicator for high beam. Designed for 7/8 inch handlebars. Wire length is 25 inches with a 9-pin connector. Wire colour coding: yellow for high beam, black for horn ground, brown for left signal, green for low beam, brown/white for turn signal main flasher, red for main power, blue for parking light, pink for horn, dark green for right signal, and blue/white for kill switch main.
- SKU
- 44-702
- Brand
- K&S Technologies
- Availability
- In Stock (50)
FULL DESCRIPTION

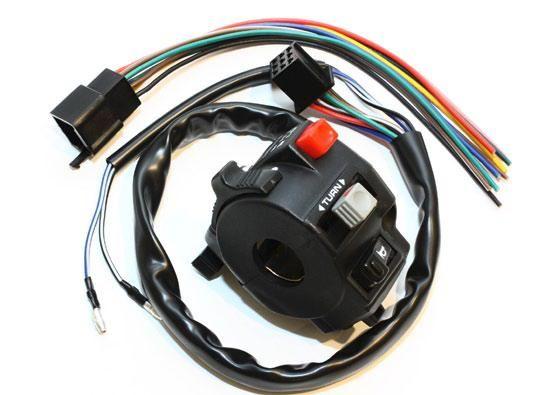

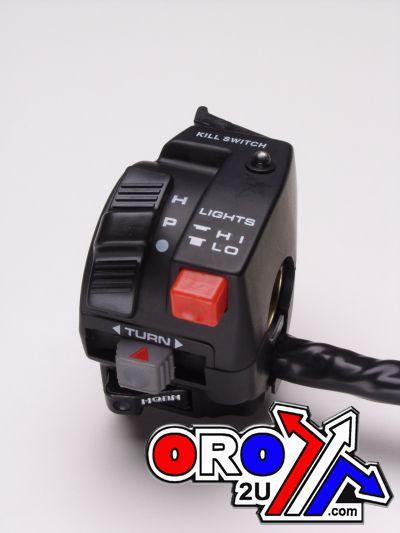

K&S Universal Compact Handlebar Switch Assembly - 7/8 Inch
Upgrade your motorcycle's controls with the K&S Universal Compact Handlebar Switch Assembly. This versatile handlebar-mounted unit is designed for seamless integration with 7/8 inch handlebars, offering comprehensive control over essential functions for your ride.
Key Features:
- Turn Signal Control: Features right, left, and center push-cancelling operation for intuitive turn signal management.
- Headlight Management: Includes controls for high beam, low beam, off, parking, and on positions, plus a dedicated passing light function.
- Horn Operation: Easily activate your horn with a dedicated control.
- Engine Stop Control: Equipped with a kill switch function for quick engine shutdown.
- High Beam Indicator: Integrated LED indicator provides clear visual feedback for your high beam status.
Specifications:
- Handlebar Fitment: Designed for standard 7/8 inch handlebars.
- Wire Length: Offers a generous 25 inches of wire for flexible routing.
- Connector Type: Features a convenient 9-pin connector.

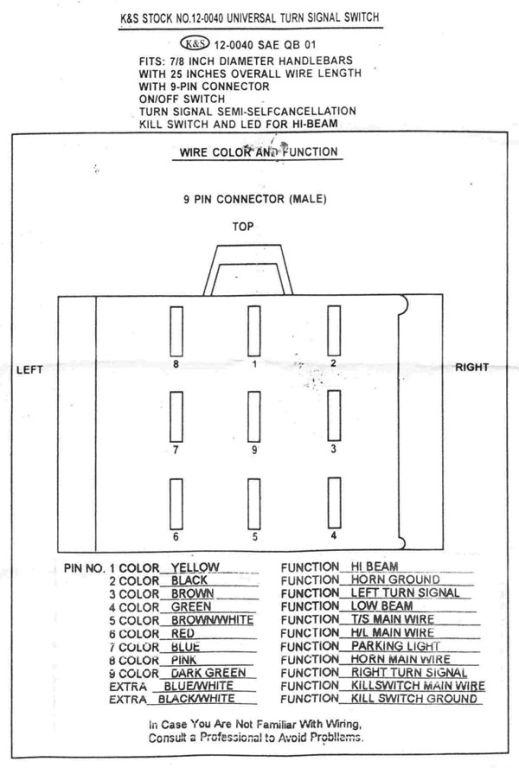

- Wire Color Coding:
- Yellow: High beam
- Black: Horn ground
- Brown: Left signal
- Green: Low beam
- Brown/White: Turn signal main flasher
- Red: Main power
- Blue: Parking light
- Pink: Horn
- Dark Green: Right signal
- Blue/White: Kill switch main
