SPEEDOMETER & SENSOR DIGITAL, CAN NOT BE CALIBRATED
Digital speedometer and sensor unit. Speedo head diameter 95mm, body length 105mm. Features a digital display with LED illumination for indicators, high beam, and low beam headlights. Includes all necessary wires, with the main wire measuring 680mm. The speed sensor has an M12 x 1.25mm thread. The unit has a chrome effect finish and easy mounting with a bracket on the speedo head (65mm centre-centre mounting holes). Operates by magnetic pickup (magnet not included). Magnet and pickup should be mounted 65-66mm from the center of the spindle. Please check speedometer calibration after installation. Wiring guide: Live (positive) is the black wire, Earth (negative) is the green wire. Light blue, dark blue, white, and orange wires require positive feeds for left and right indicators, main beam, and dip LEDs. All other colors, including pink, purple, red/blue, red/green, green/black, and green/yellow, require grounds for gear positions and fuel gauge level.
- SKU
- 44-9620
- Brand
- Factory Image Racing
- Availability
- In Stock (16)
FULL DESCRIPTION
Digital Speedometer and Sensor Kit
Upgrade your motorcycle with this comprehensive digital speedometer and sensor kit. Featuring a clear digital display with LED illumination for indicators, high beam, and low beam headlights, this unit provides essential information at a glance.
Key Features:

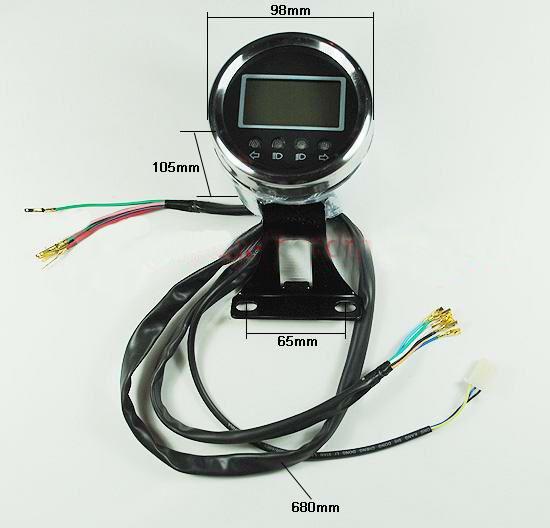

- Digital speedometer head with a 95mm diameter and 105mm body length.
- Includes a magnetic pickup sensor (magnet not included).
- The sensor requires mounting 65-66mm from the center of the spindle.
- Speedometer head features 65mm center-to-center mounting holes for easy installation with the attached bracket.
- Main wire length is 680mm.

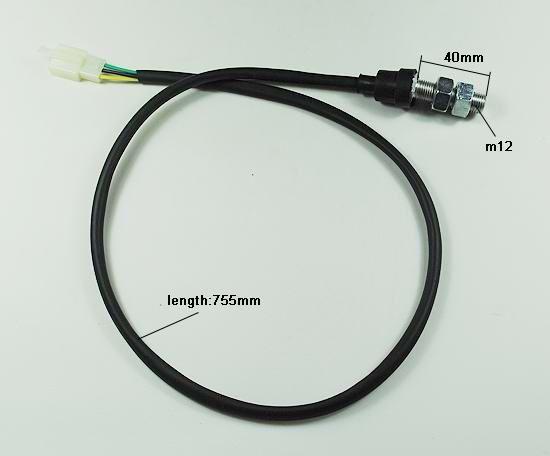

- Speedo sensor uses an M12 x 1.25mm thread.
- Stylish chrome effect finish.
- Includes all necessary wiring for indicators, high/low beam LEDs, gear positions, and fuel gauge.
Wiring Guide:
- Live (Positive): Black Wire
- Earth (Negative): Green Wire
- Indicators, High Beam & Dip LEDs: Light Blue, Dark Blue, White & Orange wires require positive feeds.
- Gear Positions & Fuel Gauge Level: Pink, Purple, Red/Blue, Red/Green, Green/Black & Green/Yellow wires require grounds.
Note: Please check speedometer calibration after installation. Calibration cannot be adjusted on this unit.
